LCD computer screen with shut down problem repaired. Model: AOC 5314

By on February 5, 2014
lcd-monitor-repairing















Shutting down was the main complaint of this LCD screen. Sometimes it takes few minutes and sometimes few seconds. When I powered it on in my shop, it took only a few seconds to go to shut down. The standby light was on and off. I am assuming a power supply problem. Let the repair begins.

lcd monitor repair

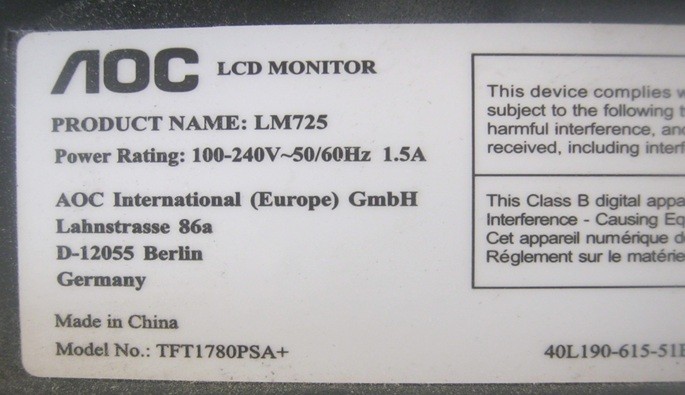

My friend sells LCD computer screens and while he was cleaning the storage room, he found a lot of old computer screens there.  We might use some for parts and others; I will try to repair them. So, let the fun begin.

The moment I took the back cover off, I could not see anything due to the dust covering the power and the main board. After cleaning, this is what I saw.

lcd monitor repairs

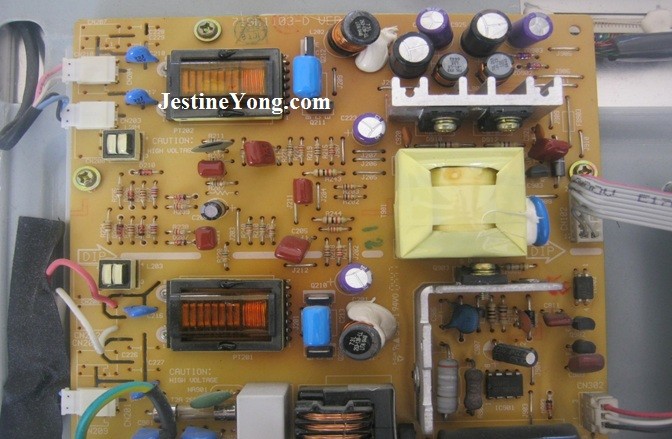

A few bulged capacitors were found in the secondary section of the power supply. After cleaning, the board looked nice and clean.

lcdmonitorrepair

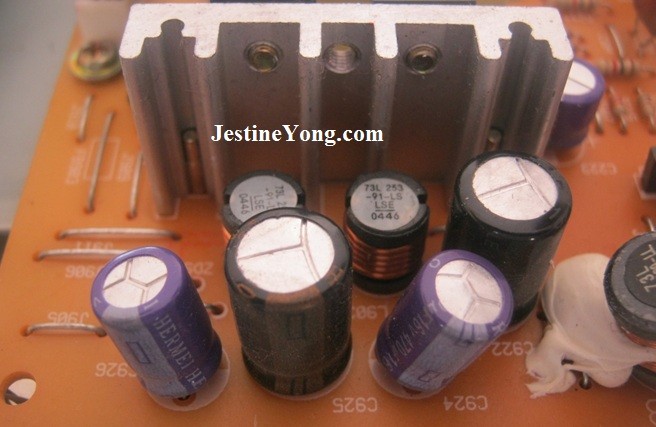

As you can see in the photo, there were three bulged capacitors and one that had very high ESR reading. I think that might be the answer to the shutting down problem of this LCD computermonitor.

lcdmonitorrepairs

They were two 1000uf/16 volts, and two 470uf/25 volts. The other capacitors on board checked ok.

The moment I replaced all defected capacitors, the LCD computer screen came back to life and this time, it did not shut down. I attached it to my laptop and powered it up and it worked nicely.

lcdmonitorrepairing

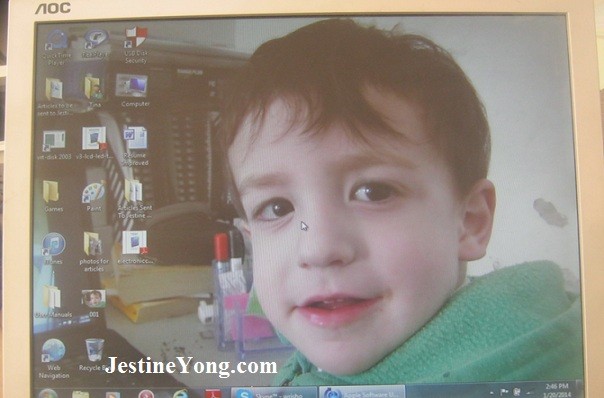

As you can see, the picture is nice and clear and you can see the picture of my son who loves to stay in my shop and help me out. He is only three years old.



Customer came and got his LCD computer screen back and of course, he tried it in his shop for almost the whole day. He was happy with it. Mission accomplished.

waleed







This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
