LED Torch Light Repaired

By on May 3, 2014

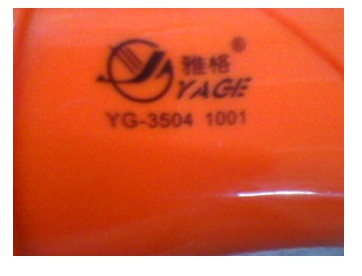

This LED torch light YAGE Model YG-3504 1001 was brought to me and the complaint was it was not illuminating at all.

torchlight repair

First thing done was to disassemble the torch light, only a few screws were taken out.

led torch light repair

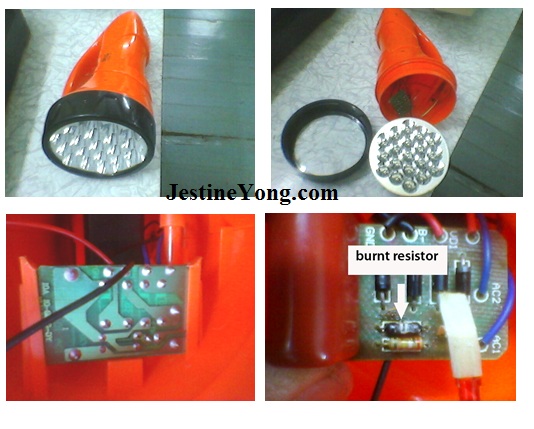

As you can see the electronic circuit was very simple, but there was a query: a burnt-out resistor.

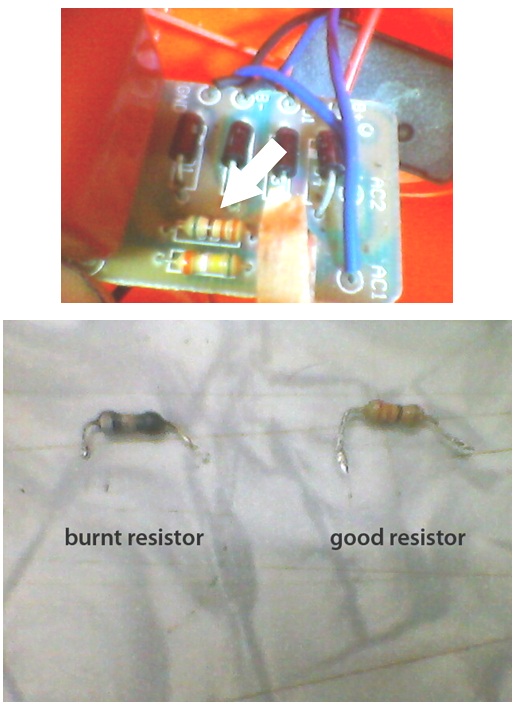

Thanks God a co-worker owned a similar torch light and by comparing it I could get the color code of this resistor: orange- orange- brown – green which was 330Ω± 0.5%.

torchlight repairings

The replacement resistor was soldered in the PCB and take a look at the result below:

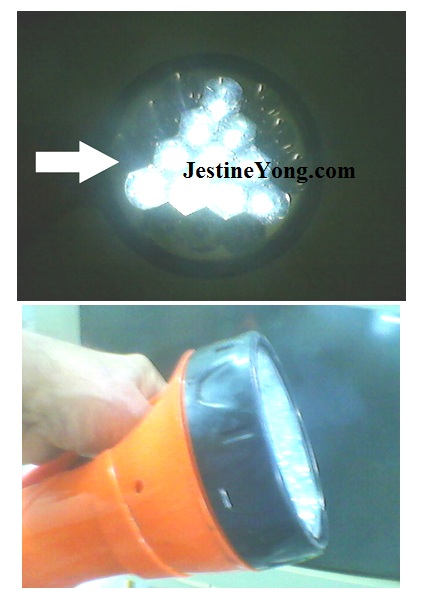

The LED torch light was brought back to life, the owner was very happy and of course: mission accomplished.


This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.
