LG DVD Video Out Problem Repaired

By on September 22, 2015
dvd lg repair













1

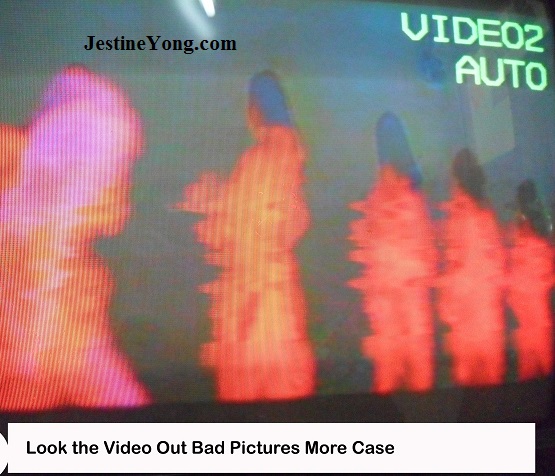

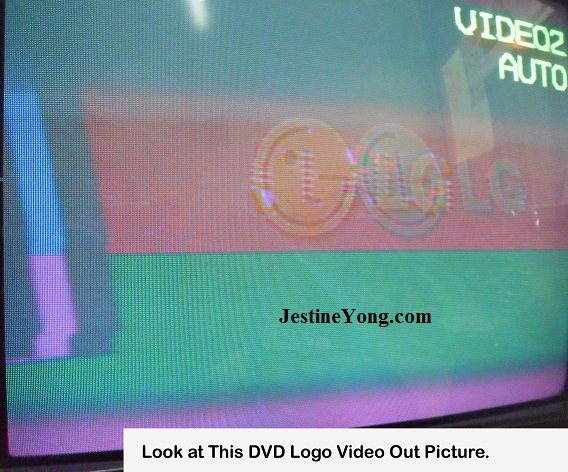

The complaint of this LG DVD Player was it has power (see the above picture) but the display/image was totally bad (see the two pictures below).

It was not the TV fault because the TV works fine when connected to another DVD player. It was not the cables also because I have replaced the cables and the problem was still the same.

dvd video problem

dvd video problem repair

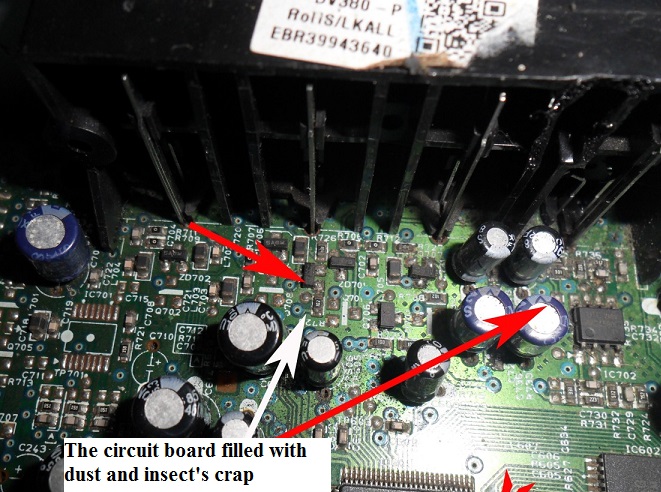

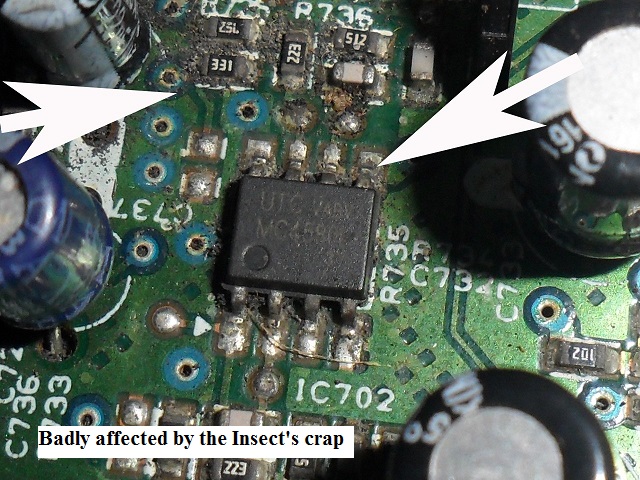

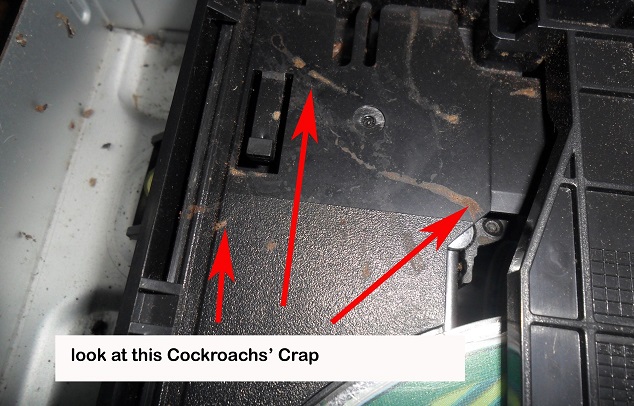

As usual, we need to open the cover in order to check the internal section. The first thing I saw was the cockroach’s crap (excrement/feces) all over the place which include the circuit board (see the three pictures below):

roach crap

5

dvd ic

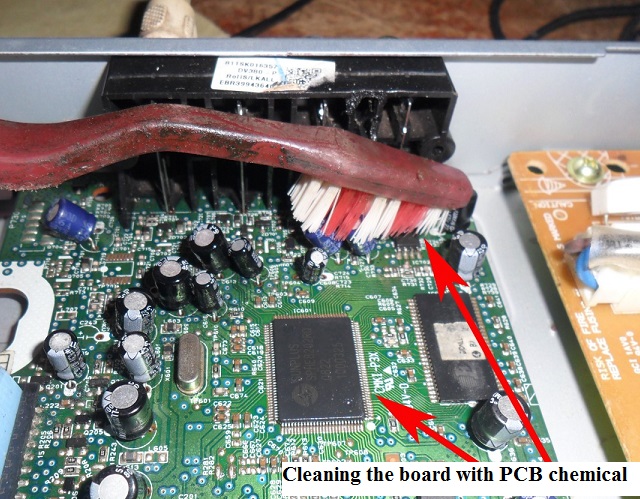

I had to clean the area especially the circuit board using the PCB chemical and after that need to check for continuity of the circuit traces. It seems that the circuit traces were fine.

cleaning dvd board

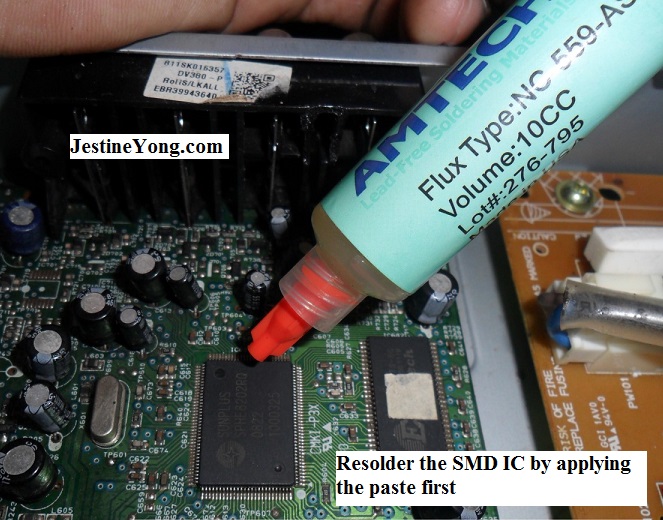

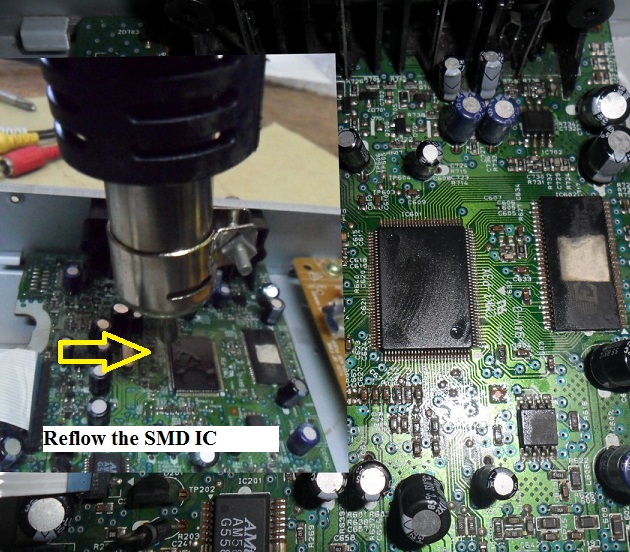

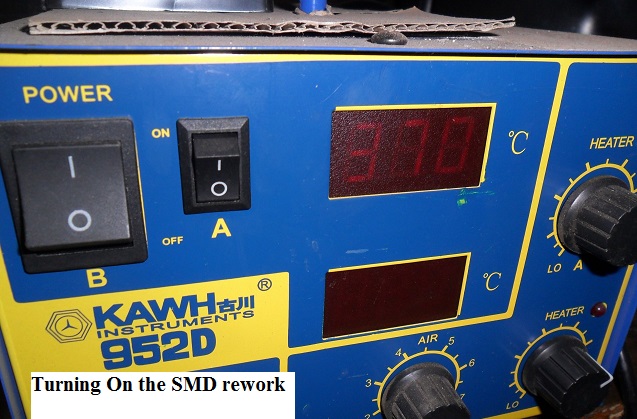

So, the next thing I did was to apply soldering paste onto the SMD IC legs before using a SMD rework station to perform the reflow

8

smd rework dvd player

10

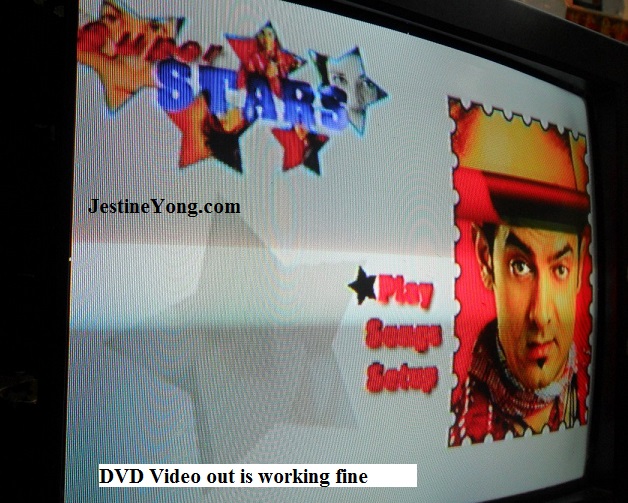

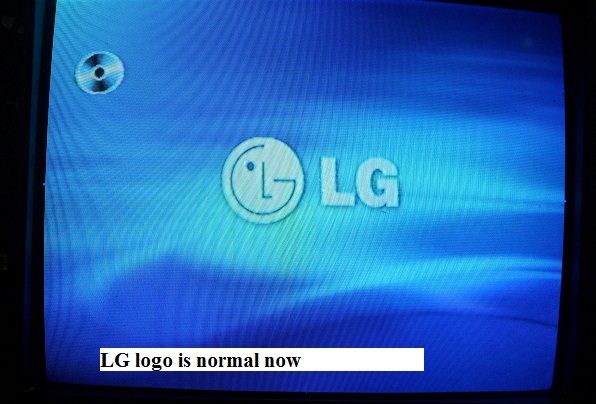

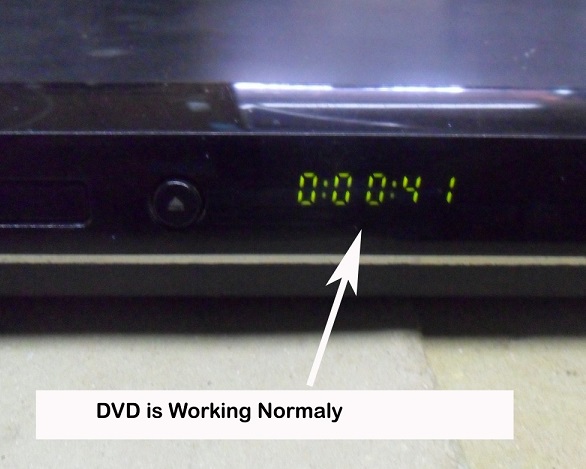

After done the cleaning and the reflowed of the ICs I powered On the DVD player and take a look at the result below:

dvd player repaired

dvd player repairing

Conclusion- I did not replace any components in this set. If the cleaning and the reflow did not bring back the good picture I will recheck again the circuit board. Probably there could be leaky components or may be a broken circuit track that I have missed out. If you are just starting out in DVD player repair and wish to know more about DVD player repair you can visit this link to find out more.
