Mouse LOGITECH repaired

By on October 4, 2013
mouserepairing

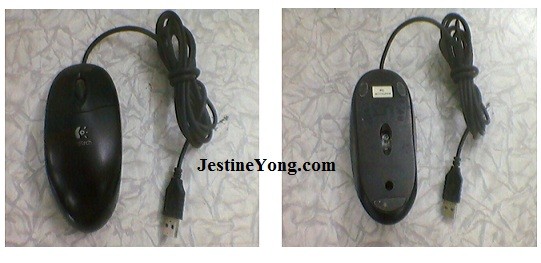

An USB Optical Mouse LOGITECH Model: M-UAE96 was brought to me, because it did not work correctly.

mouse repair

The first step was disarming the mouse by means of a screwdriver:

mouse repair

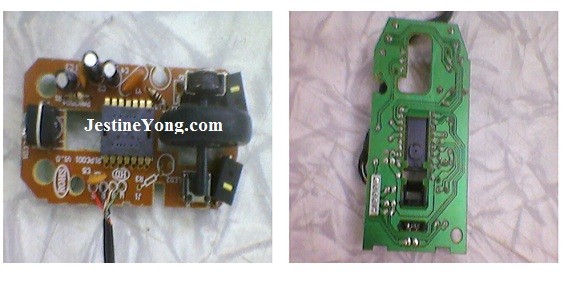

When the mouse was inspected at simple sight there were no electronic components defective:

mouse repair

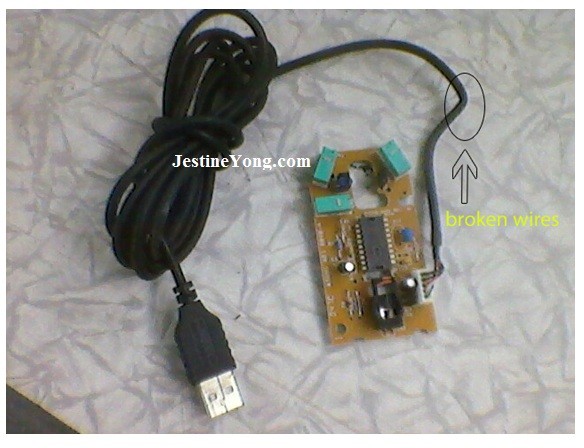

Then, with the Digital Multimeter the wires from the USB connector to the mouse were checked and there were some broken ones, therefore the next step was to cut them with cutting pliers:

mouse repair

Once these wires were cut, then we have to scratch the end of every wire and then they will become conductive, we can do that with the help of a sharp knife or a blade:

mouse repair

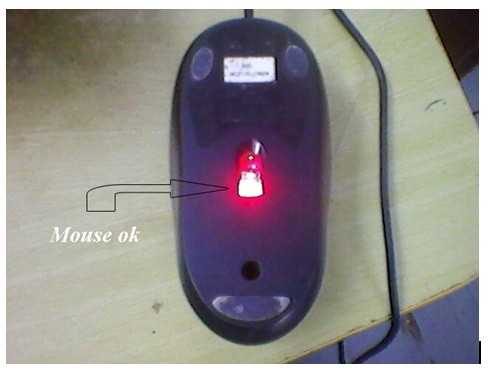

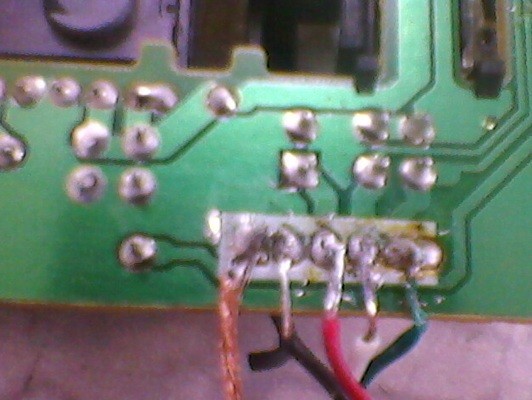

Once the wires were soldered back on the mouse board, and the device was armed, the Optical Mouse came back to life. It was tested with the Operating System, in a PC and it worked ok.

mouserepair5

humberto

This article was prepared for you by Mr Humberto Rodriguez from Cuba. Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

By the way if you have any good repair article that you want me to publish in this blog please do contact me HERE.
