No Display In ViewSonic LCD Monitor VA1930wm Repaired
I have got a call from a customer who told me that his ViewSonic LCD Monitor had a “No Display” problem. I took the Monitor from his house and back to my place and tested it. It was confirmed that the Monitor can be turned ON with “Blue LED lighted up” but there was no display.
The first thing that I checked was the brightness setting but could not see the OSD menu.

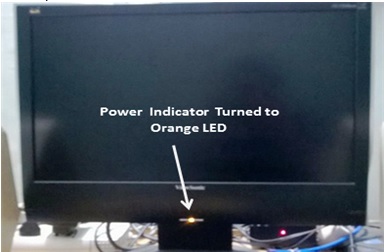

When I removed the VGA cable, the power indicator light turned orange which means in standby mode.
This concludes that it is either the LCD panel is at fault (no display) or the power inverter section have problem.

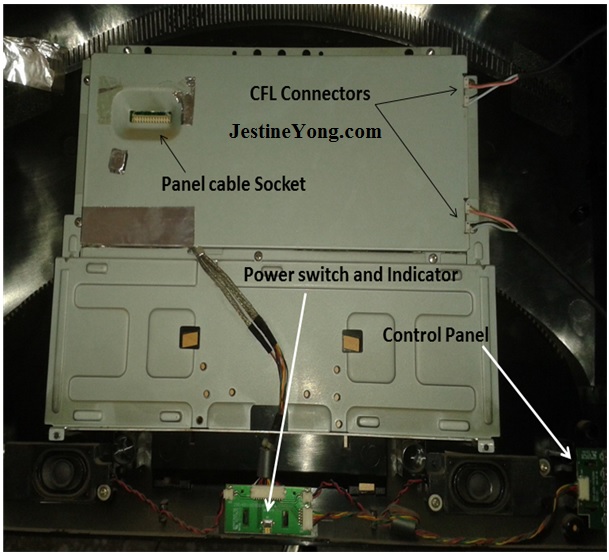

Now I have decided to open the monitor for visualizing diagnostic.

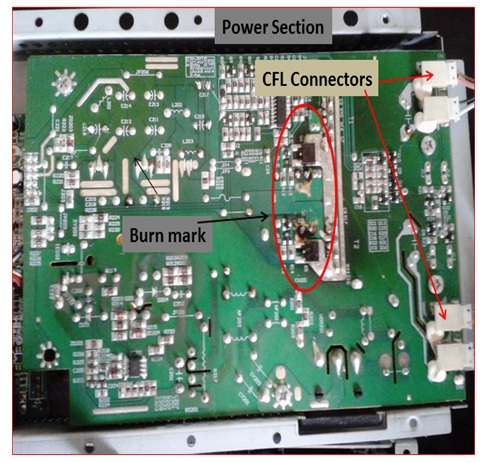

On visual inspection I found burning marks on PCB. It was on the high voltage transformer area.

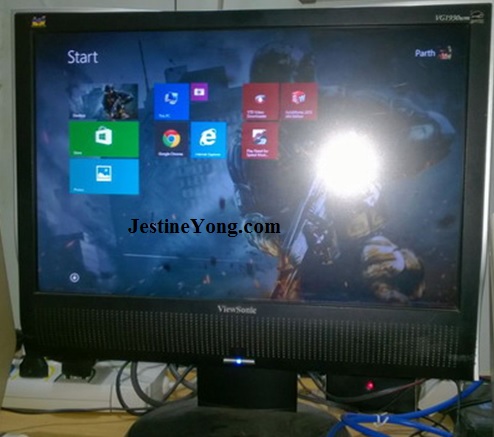

I had to clean it with a solution and have checked the surrounding components and everything seems to be ok. There were no bulged capacitor in the power section. Next I replaced the two capacitors with the marking of 470uf 25 volt. After installing the new capacitors and powered On, the display came back to life.
This repair work took me about ½ an hour to fix.
