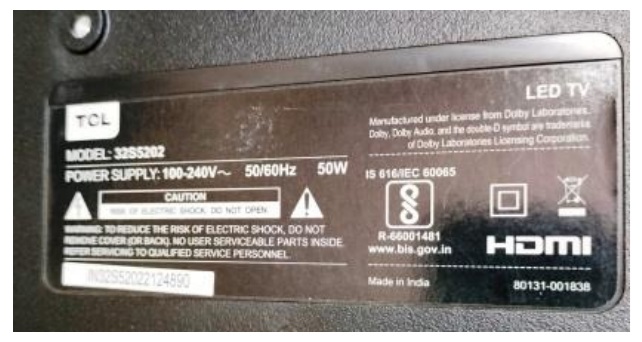

No Display Problem Solved In TCL Android LED TV Model 32S5202
This TV was brought by a new customer as per recommendation of a regular one with the complaint that there was no display. I switched on the TV and checked whether the TV was getting on. It was and the backlight remained lit without any display.

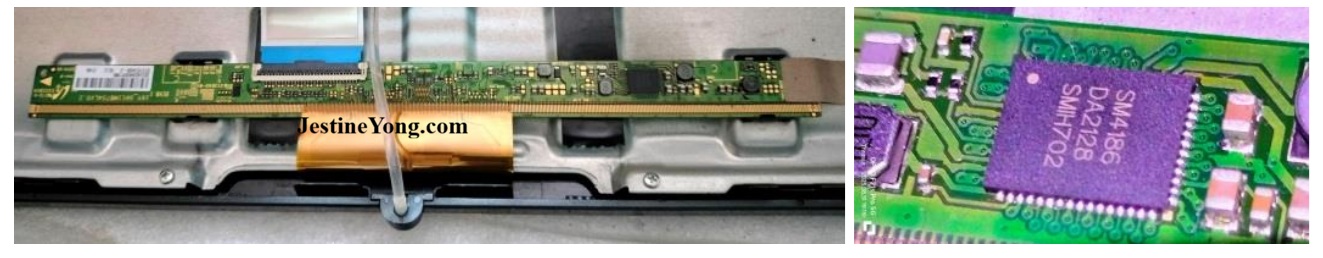

I opened the TV and cleaned inside as usual and checked the voltages on the Scalar Board such as VGL, VGH, AVDD, V-com & VCC. The VCC (12V) and subsidiary voltages such as 3.3 & 1.8V were present. But other voltages from the IC SM 4186 were absent. This TV was using a panel with a single COF.
The case evidently was an internal panel short. First let us find out how to identify the CKV lines in a scalar board.
Perhaps the following link of a video would be of some help:

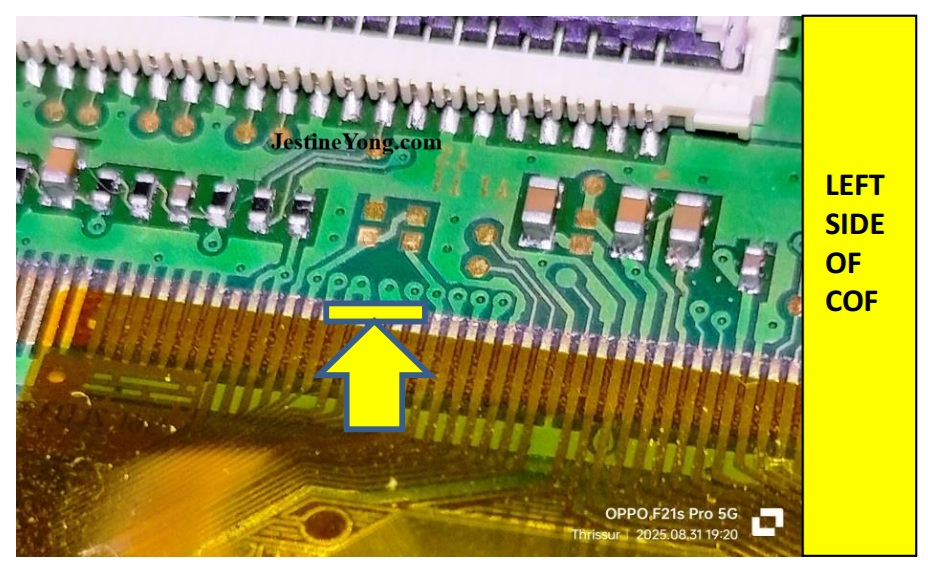

That video also shows how to measure the VCC and V-com voltages. Generally the CKV lines are like in the following picture:

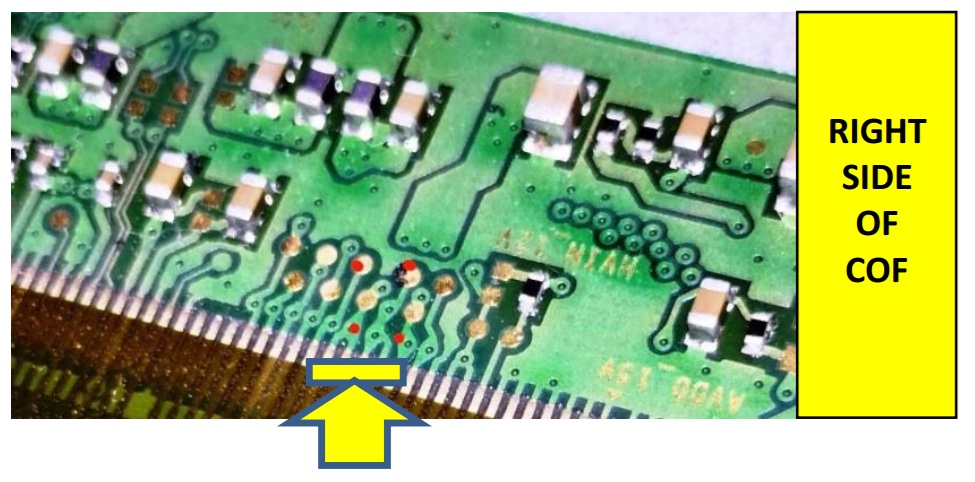

There are parallel lines of these on the other side of the COF too. Let us have a look at that:
In the above picture please look at the red spots marked by my techie friend. The step is to find out the short using a multimeter. Let us give some numbers for the zig zag copper dots on the area. You can notice that there are 9 zig zag spots. Starting from the left, let us give them 1 to 9. Therefore the red spots marked are on 5, 6 7 & 8. We need to check the resistance between 5 & 7 and 6 & 8. It should show in meg ohms. In this case, the reading was 470 Ohms confirming a short between 6 & 8.
The next step is to isolate which side of the panel was short as these lines parallelly enter from both sides as mentioned earlier. For that we need to take a chance by cutting the four lines nearest to the starting point of the COF where the lines enter. Kindly see the yellow bar on the pictures. The video in the link given would show you how to do that. The next step is to just cut one line out of the shorts located and see whether the display was back. I cut single line track (8) and found that the display was back, which definitely was a sheer luck. Then cut the other three lines adjacent to it too. What to do when it did not?
Click here to check out Humphrey’s ebook on LED TV Panel Repair

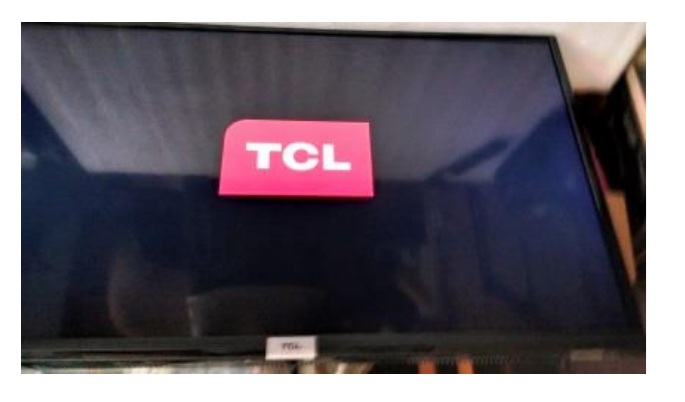

We may have to rejoin them for which the cutting should be in a slanting mode lifting the cut portion to just detach the continuity. This has to be practiced well and should be done under X10 lens with proper lighting. Let us have a look at the first result that I got on cutting the single track:
Then I cut the rest of the three tracks also similarly and made the cutting permanent as there was no need to rejoin them. Why the other lines were cut? The internal short happens due to carbon deposits formed inside the panel between the tracks. This can soon spread to the adjacent tracks too and that is why we cut the entire section. Though the resolution would get affected, and any heavy load such as from an HDMI would blow the other side of the panel also soon, the TV can be used in wireless mode directly receiving the internet as it was an android smart TV. I kept the customer informed of the limitations without divulging the info about work done to restore the display.

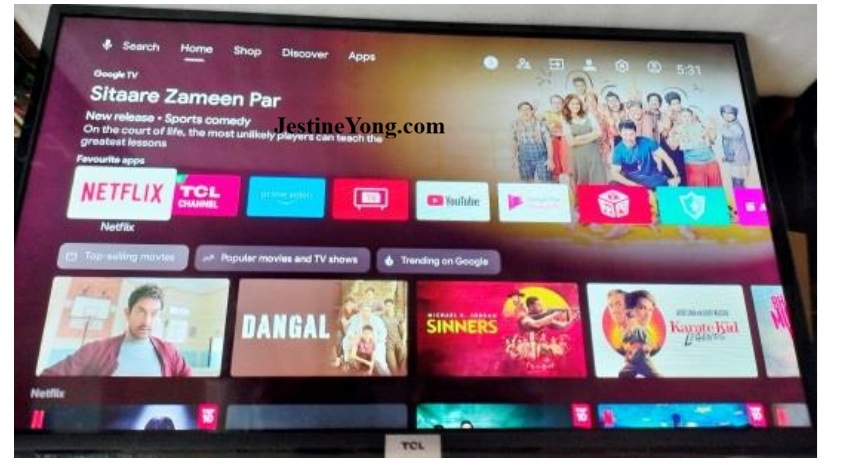

He was ready and I charged only a small amount just to cover my expenses as there was no guarantee for how long the TV would work in this condition. This type of single COF panels have short life and chances of a total failure cannot be ruled out. After testing the TV for sufficient time, I closed the back cover and here you have a final picture, which of-course was good enough for a naked eye:
Mission accomplished with satisfaction of work alone getting collected, leaving a melancholy for obvious reasons!
This article was prepared for you by Parasuraman Subramanian from India. He is 76 years old and has more than 30 years’ experience in handling antique equipment like Valve Radio, Amps, Reel Tape Recorders and currently studying latest tech-classes conducted by Kerala State Electronics Technicians’ Association. He has done graduation in BBA degree, private diploma in Radio Engineering and retired as MD of a USA company. Presently working as Consultant to Hospital and other institutions.
