Pentium IV PC Repaired (part 2)

By on August 16, 2014
pentium pc repairing

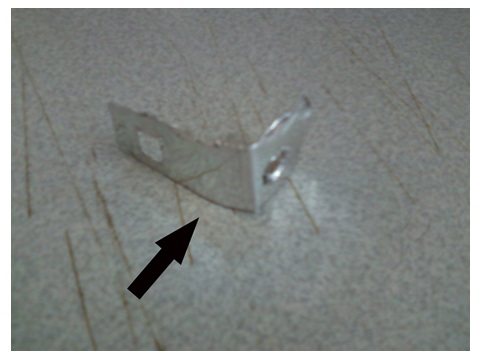

In the previous part the retention hole had been confectioned, so the final result was the shown in the photo below.

 pentium pc repair

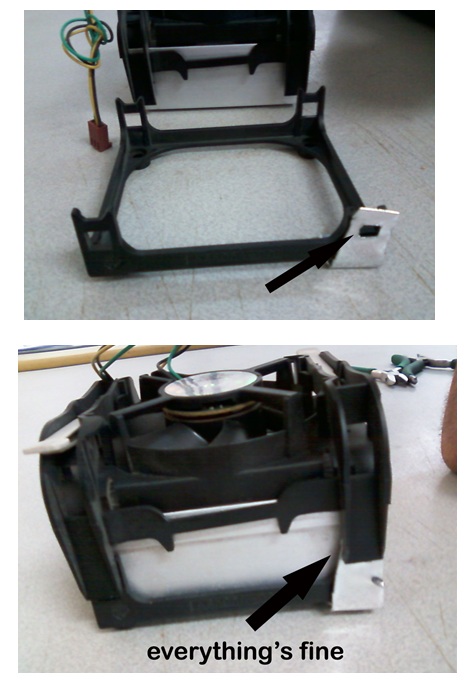

As you can see the piece of aluminum was finally obtained,





so that, it was necessary to check if it fitted with the whole set.

 pentium pc repairs

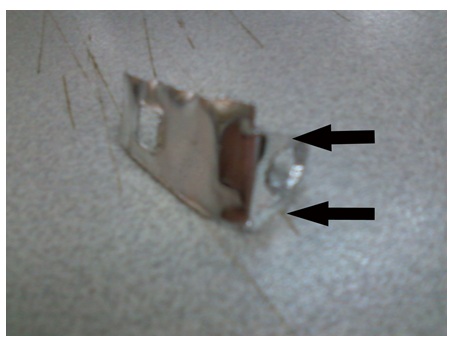

The piece of aluminum had to be re-cut in its base due to not short circuit the SMD devices in the Motherboard.

pentium pcrepair

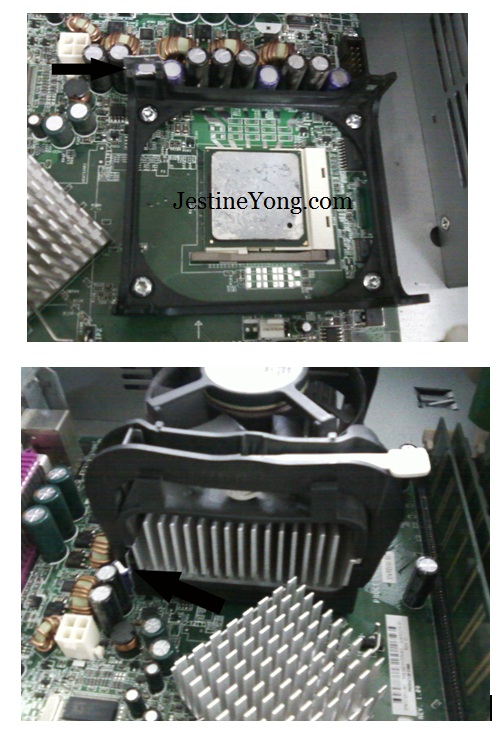

The piece of aluminum was put in the Motherboard and the heat-sink plus fan later, as shown in the images below.

pentium pc repairings

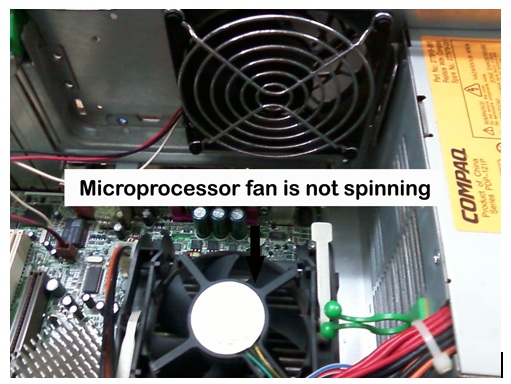

The PC was turned on and look what I saw then.

 pentiumpcrepair

The Microprocessor fan was not working, wow! another fault now. This time the fan was substituted for another one in good conditions.

 pentiumpcrepairs

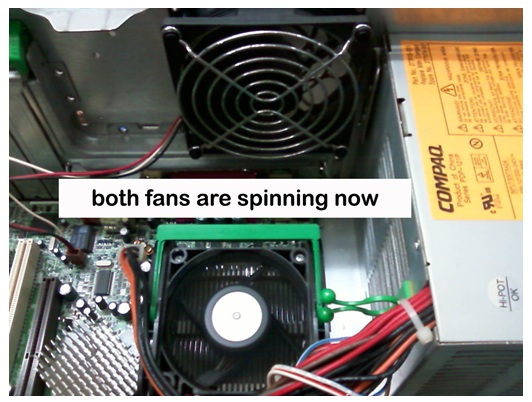

This time the PC worked perfectly when it was turned on. A long and tedious repair but finally mission accomplished.

pentiumpcrepairings

humber





















This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.
