Phantom of the Opera pinball machine by Data East Repaired

By on June 15, 2015
pinball machine repairings

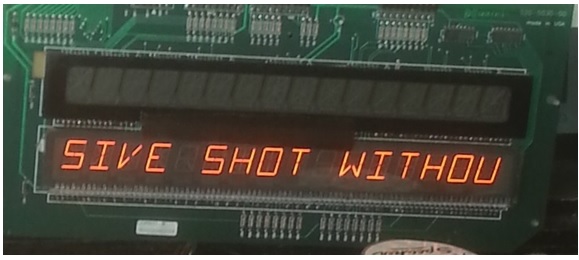

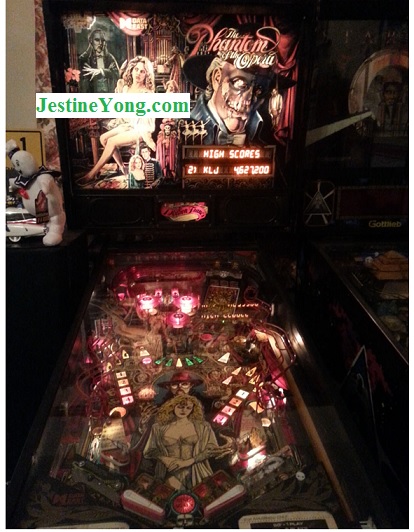

I went with my friend Sav to look at this pinball machine as he valued my input. One of the displays wasn’t working so we got the machine cheaper than the advertised price.

 pinball machine repair

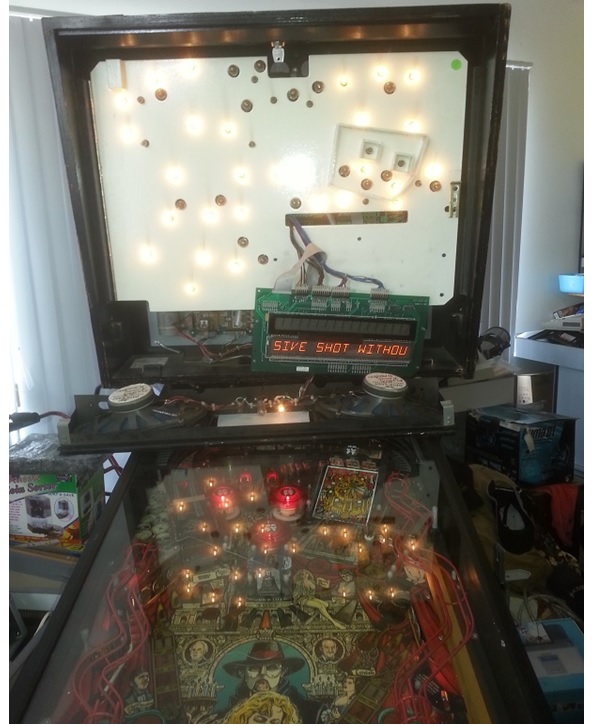

I tested the power supply line going to the display board and found the 5v rail was down (around 4.6v)

pinball machine repairs

This wasn’t the culprit. I then checked the 100v+ 100v – lines and found them to be slightly down.

 pinballmachinerepair

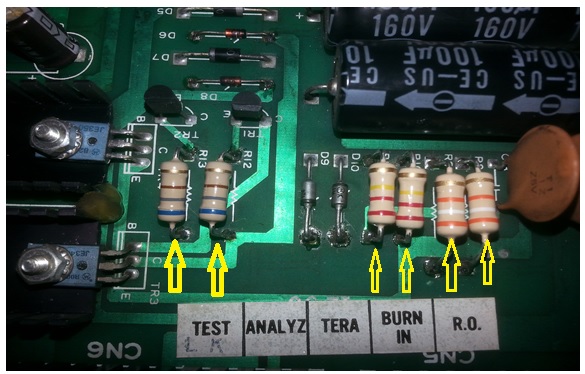

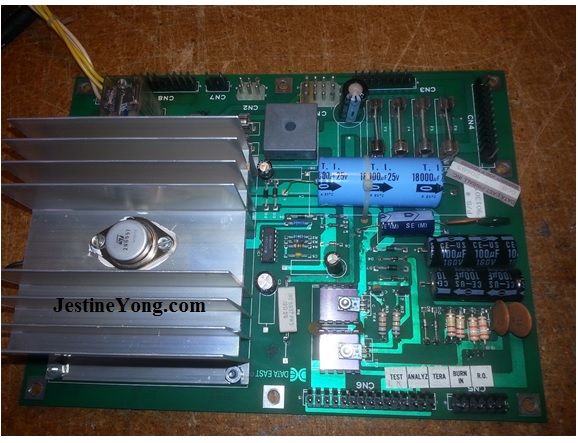

So I rebuilt the power supply. Replacing around 6 resistors. This did improve the voltages, but didn’t fix the display problem. pinballmachinerepairs

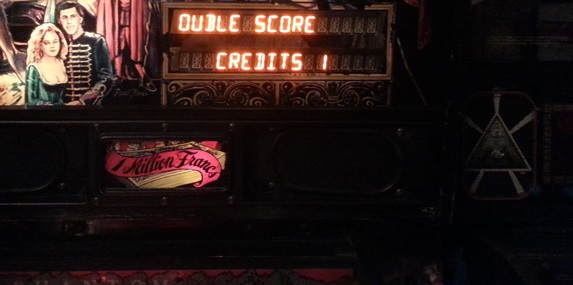

Now you might wonder what the 100v lines are used for. Well this pinball uses VFD(vacuum florescent display) displays for scoring and other information.



These displays are an alpha numeric display type that use a udn7180A to drive the displays, these are getting to be very rear to find. I have found them for $50 each and we may need 2-4 of them. If you do the math these IC’s would end up costing $200 & the VFD cost is $170,so that’s $370.

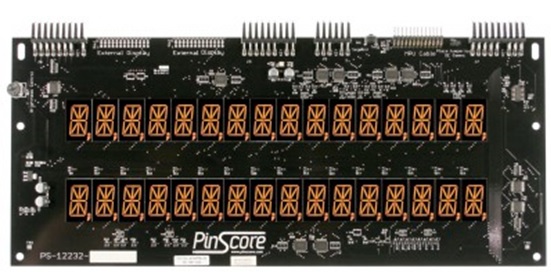

What we did in the end was order a new display from http://www.pinscore.com/products/pinball-displays/18-ps-12232-p16

 pinballmachinerepairing

 This was around $200 delivered from Germany to Australia. This is all solid state and looks just like the old one. With the new display you don’t need the -100 +100 volts, it only requires 5v. This display is all electronic and when put into the backboard you can’t tell the difference.

This has fixed the Phantom of the opera Pinball machine.

 pinball machinerepair

 pinball machinerepairing

This article was contributed by Lee Davey from Hobart Tasmania Australia. He has been doing repairs on electronics and PC’s for around 30 years.
