Pure Acoustic DVD Player Repaired. Model: YOO-11

By on July 4, 2013

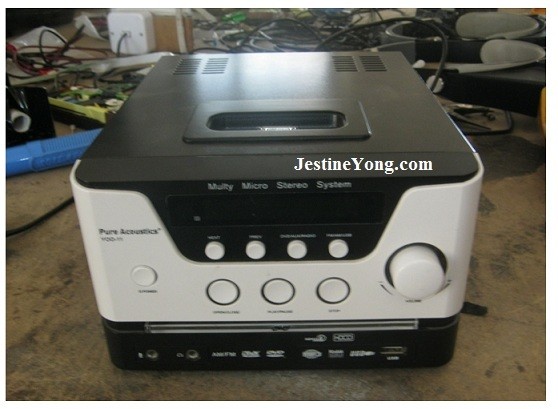

A customer brought this machine and it had DVD, CD player and MP3 built in. It also has an iphone base. You can actually plug your phone in and play the music that is stored in your phone memory chip. It is an amazing machine but it has only one problem. The tray does not open. I could hear the motor spinning but it did not open.

From experience, this should be an easy fix and I think it only had to do with the motor belt broken. That was the obvious problem but to make sure, I had to open it and find out.

Yes, I was right, the motor belt that drives the machine tray in and out was broken and I replaced it. A new problem showed up in this machine. The tray now goes in, it loads the CD, the motor spins but it does not read the CD. It showed disk error on the machine screen display.

DVD REPAIR

From experience, that is a problem in the pickup LED that reads the disk. There are only two solutions to this problem. Either change the whole pickup LED or recalibrate it. I usually prefer to change it but the customer did not want to pay extra money on it, so I had only one option to do, calibrate the pickup LED.  Most of time it works but sometimes it does not. All I can do is to give it a try and see. So here is goes.

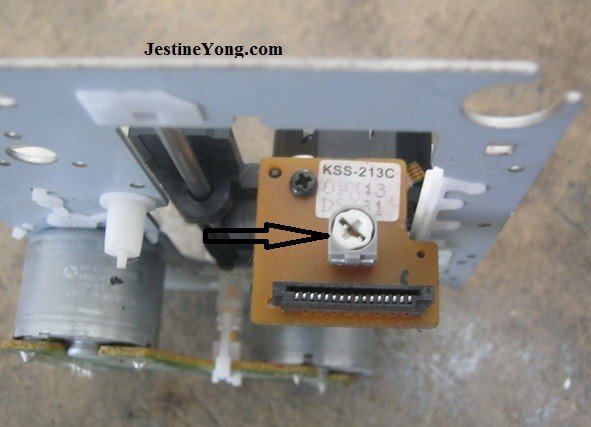

I had to take the whole tray out but keep it connected to the main board to see if it works out or not. Usually there is a screw under the pickup LED; you can see it in the photo below.

DVD REPAIRING

That controls the density of the pickup LED. Before you change any setting on the density screw, you need to mark that screen just in case it does not work so you can set it the way it was when the customer brought it in. Usually, I rotate the density screw just a little tiny move and then I tested it out. After a few tries, the machine started working again. It could read, DVD movies and music CD’s

It was an easy fix and was happy to see it come to life.

waleed rishmawi







This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment. Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

By the way if you have any good repair article that you want me to publish in this blog please do contact me HERE.

Likes(20)Dislikes(0)

6 Comments

  1. beh

    July 4, 2013 at 12:03 pm

    hi waleed
    thanks for posting this good repair report
    beh

    Likes(0)Dislikes(0)
  2. shehab kably

    July 4, 2013 at 1:57 pm

    Thanks for this informative article god bless you

    Likes(0)Dislikes(0)
  3. Waleed Rishmawi

    July 5, 2013 at 5:29 pm

    you are welcome Shehabe and Beh.

    Likes(1)Dislikes(0)
    • Ahmad Aljamal

      September 10, 2016 at 5:55 pm

      hi Waleed,
      Im Ahmad Aljamal , from Ramallah , can you help me to get a remote control for this device?

      Likes(0)Dislikes(0)
  4. Ahmad Aljamal

    September 10, 2016 at 4:53 pm

    thanks
    can anyone help me to fix FM tuning , because i have no remote control

    is there any way to do that without remote?

    Likes(0)Dislikes(0)
  5. bibhas

    January 15, 2017 at 6:09 am

    Hello sir, is it a CD player or DVD player? Because the optical pickup kss-213c is used for CD player. Its laser beam density is very low than ad-01, etc. Kss-213c could'n detect DVD disk. Please check your article. Thanks .......

    Likes(0)Dislikes(0)
