SEAGATE Barracuda 160GB HDD repaired

By on July 20, 2015
hdd repair

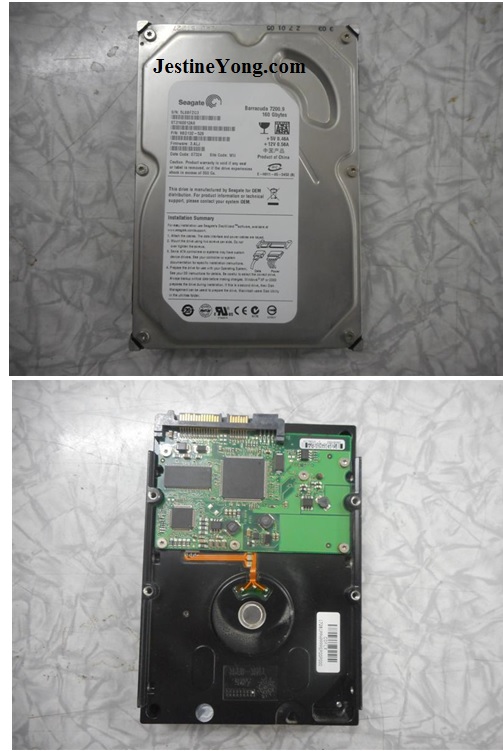

This HDD brand SEAGATE, Barracuda 7200.9 was brought to me and the complaint was the BIOS did not recognize it and the owner wanted to install Windows Operating System.

hdd repair

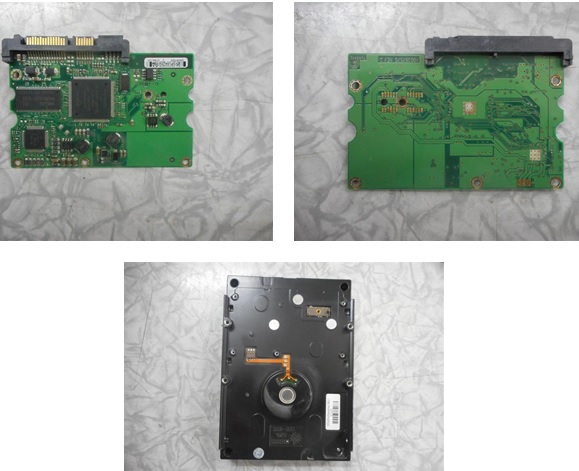

First thing done was to take the PCB off, an easy job: only some screws had to be removed.

hdd repair2

Some electronic components were checked on with the Digital Multimeter and they were fine.



But look what I saw:

hdd repair3

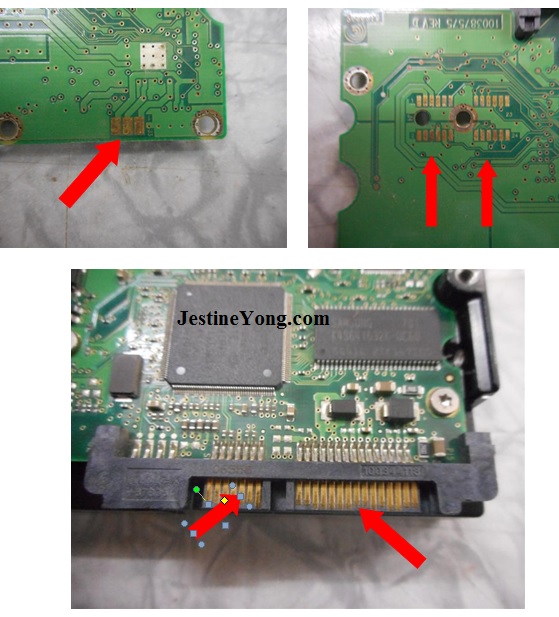

As you can see in the photos above the copper contacts of the PCB were really dirty. I had to use a brush and a pencil eraser for the job.

hdd repair4

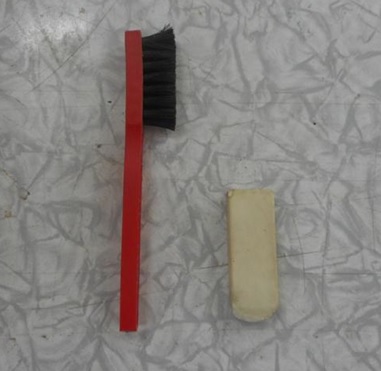

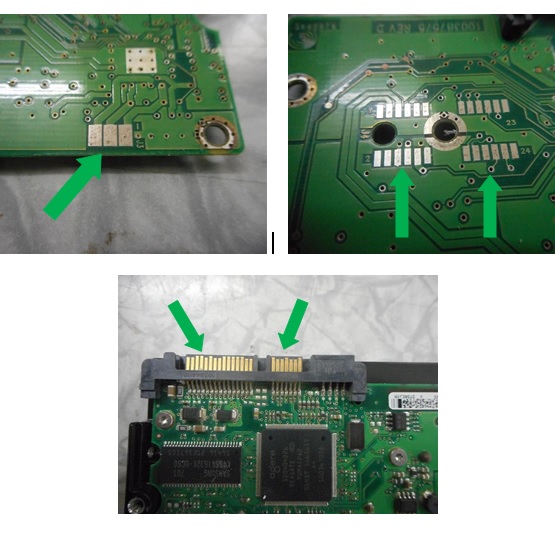

These contacts were cleaned with the pencil eraser and look at the result.

hard disk drive repair

The HDD was fully armed and connected into the PC, and then look at the result.

hdd repair6

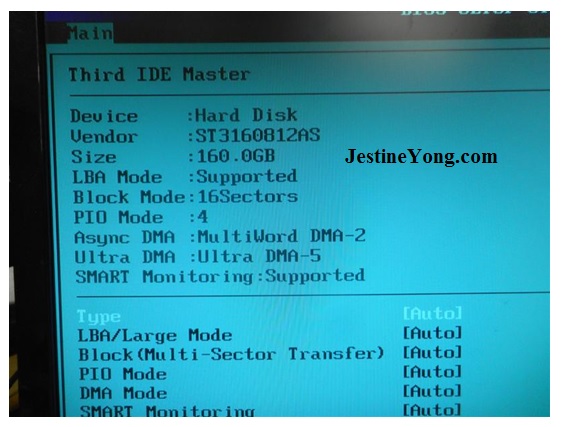

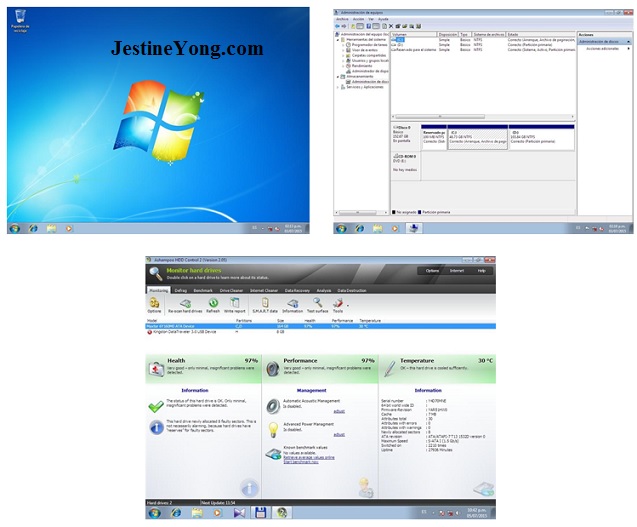

As you could see, it was recognized by the BIOS, at this moment Windows OS had to be installed, and here’s the result.

Windows Just Installed

hdd repair7

This time a HDD was saved from the dump.

Note: take into consideration that this is not a 100% solution to save all the HDDs, but many or some of them could be saved with this procedure.
