Slow Behavior In Asus CPU Motherboard Solved

By on December 12, 2013
cpu-repairing

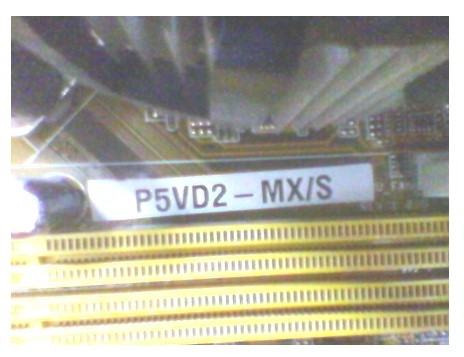

A fellow-worker brought to me his CPU with the brand of ASUS Model P5VD2-MX/S.

The complaint was the had a very slow behaviorand he could not work fine with the PC. The set was disarmed to check inside.

cpu repair

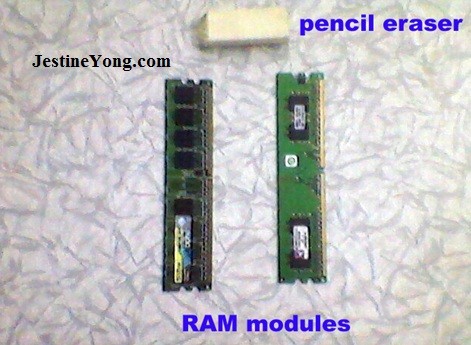

First of all, the RAM modules were taken out for cleaning with a pencil eraser.

cpu repairs

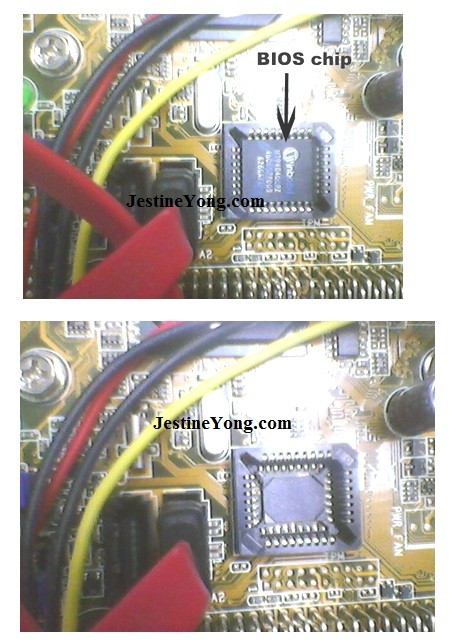

The BIOS chip was taken out for cleaning too.

cpurepair

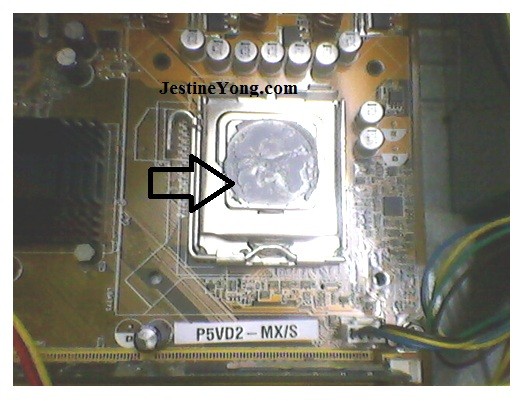

The Microprocessor was checked and the thermal paste was present and in good conditions too. The heat sink and the fan were cleaned.

cpurepairing

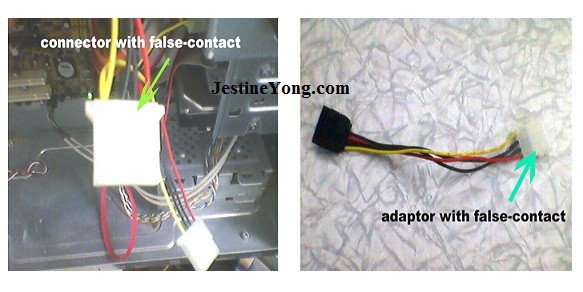

After cleaning, the PC was switched on but the Operating System does not load. It is because the HDD was not being detected. Further inspection found the HDD connector had a bad contact with the ATX power supply connecter. The HDD SATA cable was fine.

cpurepairings

cpurepairs

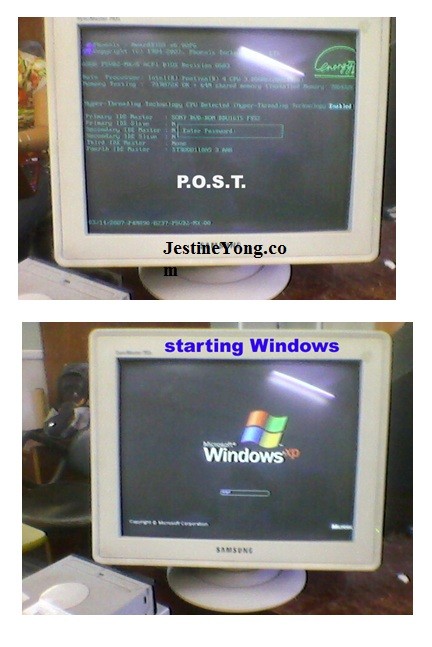

Once the connectors is properly inserted again the Operating System loaded perfectly, and theslow behavior disappeared.





HumBerto Rodriguez

humberto1

This article was prepared for you by Mr Humberto Rodriguez from Cuba.
