Standby In LCD TV Repaired

By on July 16, 2015
how to repair lcd tv



















lcd tv repair

This 32” BG LCD TV came in for repair with the complaint of Red LED standby problem. It can’t be turned On with the remote control or from the main Menu push button.

lcd tv repairing

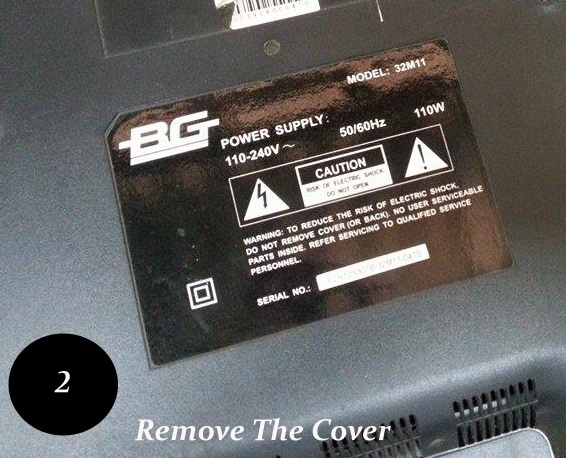

Once the back cover is removed, the first thing I check/scan is the mainboard.

lcd tv mainboard repair

I saw cockroach eggs juice around the main IC Chip.

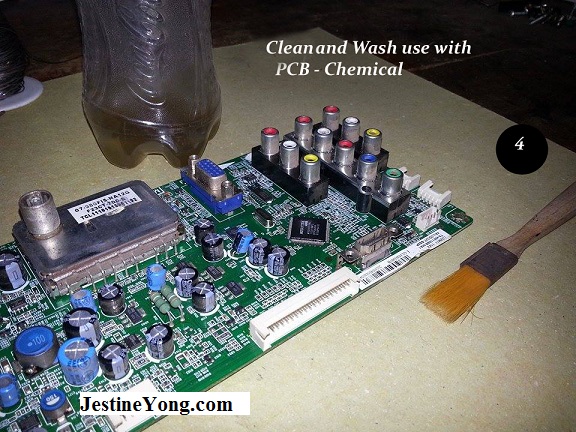

I had to clean and wash it using PCB chemical.

board pcb cleaning

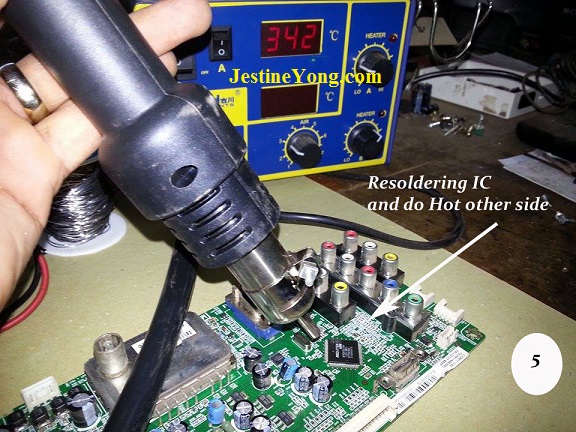

After that I reflowed the main IC chip area using my SMD Rework station gun set to 342 Degree Celcius.

smd rework station

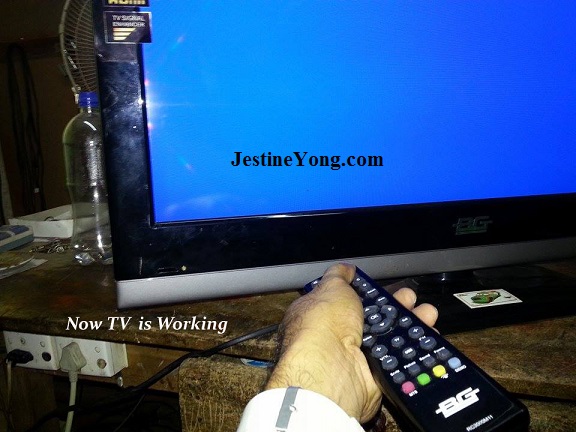

Once done and when the power was turned On, the TV came back to life.

lcd tv repaired

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free.

Note: You may check out his previous repair article in the below link:

https://www.jestineyong.com/vikyno-20-lcd-tv-repaired/
