Testing The LCD High Voltage Transformer

By on February 17, 2010

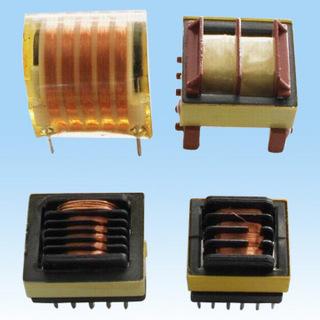

highvoltagetransformer

If you already have a Blue Ring Tester I’m sure you have use it to test on the primary winding of switch mode transformer. The switch mode power transformer is under the category of step down transformer because the output voltages is lower than the input voltage. Simply connect the ring tester to the primary winding and check the result. The ring tester is designed to check on a transformer that have more winding. In other words it can’t be used to check on the secondary winding because secondary side have less windings.

Now, if you want to test on the LCD high voltage transformer then you have to test the winding at the secondary side and not the primary side. The reason for it is because high voltage transformer is under the category of step up transformer thus the secondary side have more windings than the primary side. Just use the ring tester and place it at the secondary side and  read the result. For accuracy testing, remove the transformer and test it (off board testing).

Likes(10)Dislikes(1)

9 Comments

  1. Waleed

    February 19, 2010 at 4:23 am

    I tested a lot of them this week and the past week. I am getting different results which made me more confused..what the result should be on this meter. well, I am using a dick smith tester but the same prinicple.

    Likes(0)Dislikes(0)
  2. admin

    February 19, 2010 at 11:32 am

    HI Waleed,

    Different model will produce different result as not all LCD Monitor will have the same high voltage value.

    Jestine

    Likes(0)Dislikes(0)
  3. shahid rasheed

    February 4, 2011 at 9:29 am

    i m electronics enginear since 1985.u r so experianced .i want a degree regarding this. what can i do

    Likes(0)Dislikes(0)
  4. admin

    February 4, 2011 at 11:20 am

    Hi Shahid,

    Sorry we do not offer any degree course

    Jestine

    Likes(0)Dislikes(0)
  5. GODFREY

    February 4, 2012 at 7:50 am

    HI I MA VERY INTRESTED ON REPPAIRING ELECTRNICS COMPONENT PARTICULALY ON TV AND RADIO BUT MY PROBLEM IS IDO NOT KNOW WHERE TOFIND THE RIGHT BOOKS FOR ME

    Likes(0)Dislikes(0)
  6. admin

    February 4, 2012 at 10:01 am

    HI Godfey,

    Try this link:

    http://astore.amazon.com/jestineyong-20

    Jestine

    Likes(0)Dislikes(0)
  7. Jairo Cuellar

    May 3, 2013 at 6:09 am

    HI. Jestine my question is how i can identify the primary pins from the transformer in or out the board.
    Thank you
    Jairo

    Likes(0)Dislikes(0)
    • Jestine Yong

      May 3, 2013 at 10:01 am

      Hi Jairo,
      Hi Jairo,

      Trace from the positive side of the big filter capacitor for the first pin and the other pin is from the center pin of power FET. These two pins are the primary winding.

      Jestine

      Likes(0)Dislikes(0)
  8. Robert

    November 16, 2013 at 5:37 am

    I use mine to check the secondary sides and primary sides.

    Likes(0)Dislikes(0)
