Troubleshooting Made Quick And Easy With Talon VFD/Inverter Meter

By on July 15, 2011

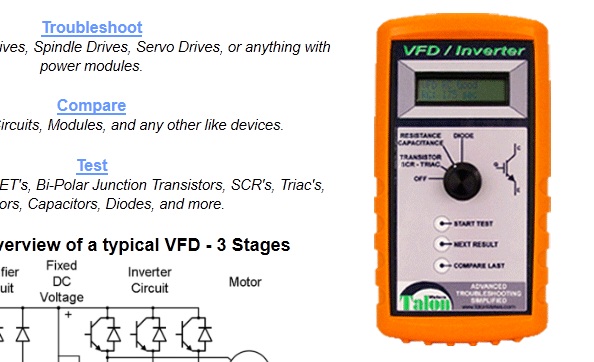

vfd meter

I got to know about this website from one of my ERG members. According to the website this meter could check variable frequency drives, spindle drives, servo drives, transistors, IGBT’s, FET’s, Bipolar Junction Transistors, SCR’s, Triac’s, Resistors, Capacitors, Diodes and more. You can read the operational manual by clicking HERE. Please click on the photo to visit the website.





Likes(1)Dislikes(0)

2 Comments

  1. Ray Marais

    July 16, 2011 at 2:52 am

    Hi there from sunny South africa.Great Blog with usefull tips.Cant wait for news letter every month.About the Flyback/Transistor tester label (April 27th 2011)Where can I find the circuit and assembly instructions for this unit?
    Have a good day and keep up the good work.

    Likes(0)Dislikes(0)
  2. admin

    July 16, 2011 at 8:15 am

    HI Ray,

    You need to make the two tester into one:

    Here is the flyback tester link:

    http://www.flippers.com/pdfs/k7205.pdf

    and FET Link:

    http://www.electronicrepairguide.com/test-mosfets.html

    Jestine

    Likes(0)Dislikes(0)
