UPS-SL650 Repaired

By on September 1, 2015
ups repair

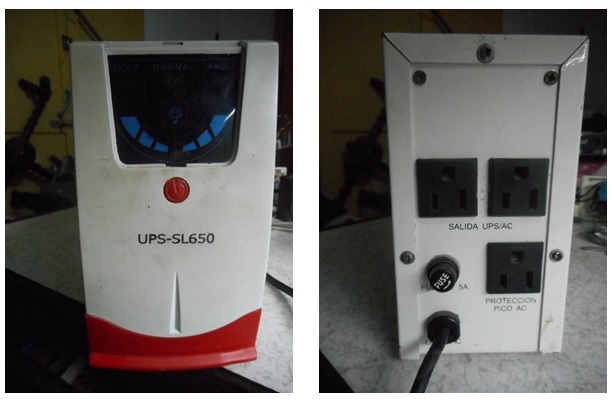

This UPS-SL650 was brought to me and the complaint was no power.

ups repair1

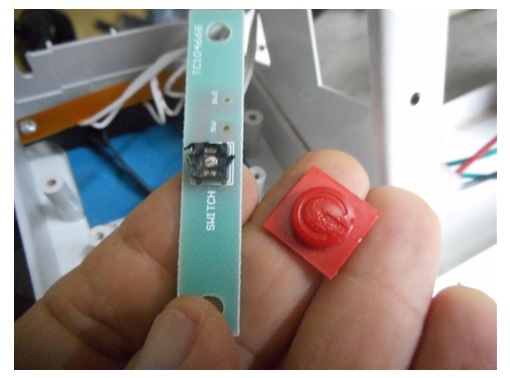

I found the ON/OFF knob in the front panel was broken.

ups repair2

But fortunately I had a spare from another similar unit, so it was replaced.

ups repair3

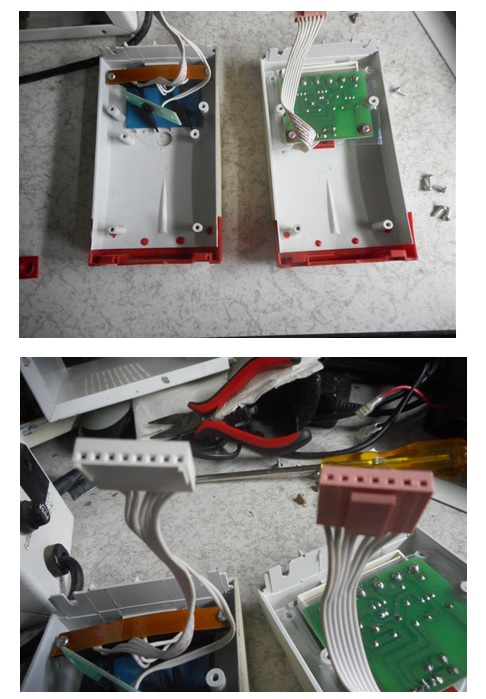

Note the number of pins is not equal, therefore the ON/OFF knob had to be replaced from one front panel to the other one.

When the device was tested some troubles appeared, and when I put my magnifying glass to look at the circuit board, see what appeared now:

dry joint

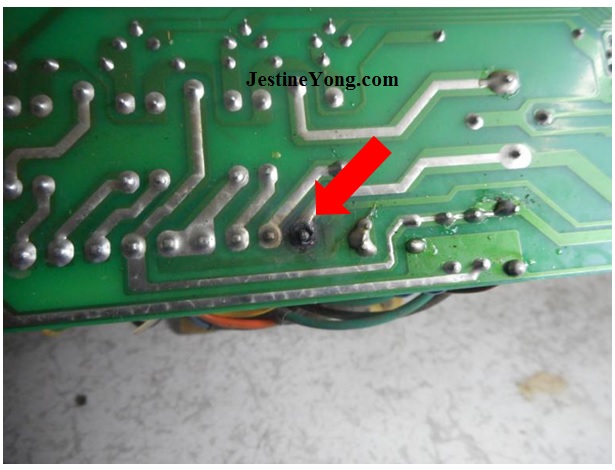

There was a burnt solder joint in the PCB.

ups repair5

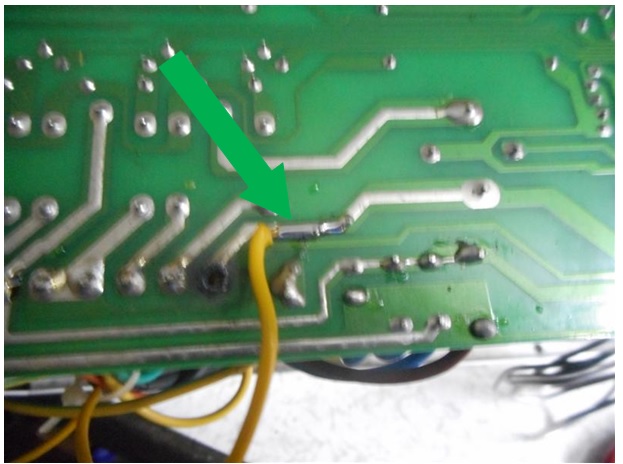

As you can see from the above photo, the connector was extracted and it was fully damaged, therefore as I had no spare connector I had an idea: to substitute this pin for a long wire (in case in some other time any tech has to extract this connector the cable is long enough to permit this action) soldered in the same track.

ups repair6

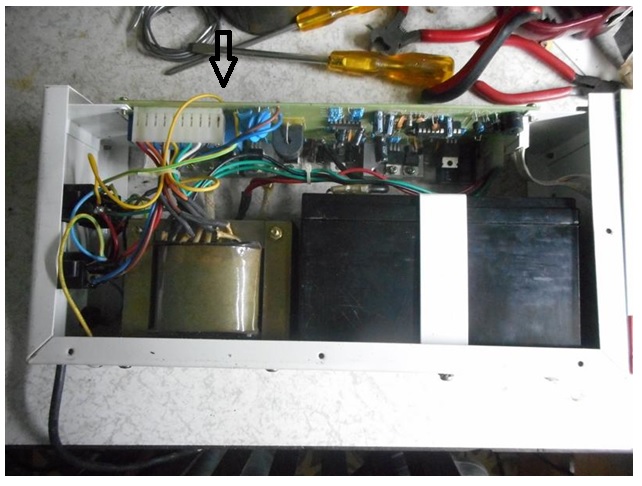

By the way the contacts of the five relays were re-soldered, and the same with some other cold solder joints there were in the circuit. Look at the following photo how was the device before closing it.

ups repair7

I replaced the battery also because it was not in good condition.

ups battery

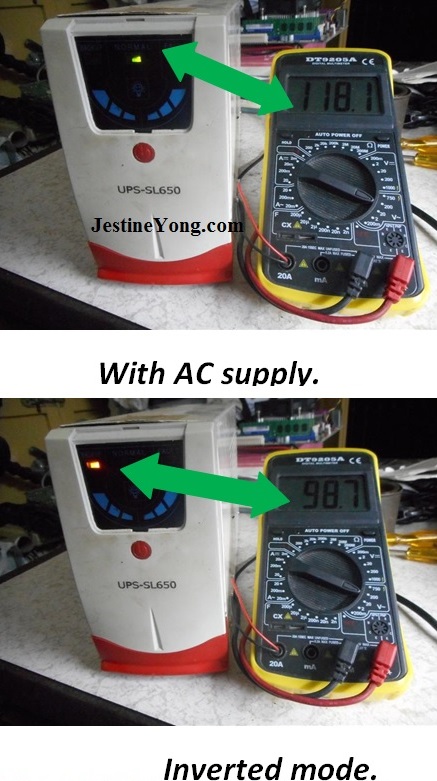

The UPS was tested and look at the result:

ups repairing

Mission accomplished, another electronic device saved from the dump.

humbertophoto5



This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check his previous repair article in the below link:

https://www.jestineyong.com/my-home-pc-repaired/
