UPS-SL650 repaired

By on December 3, 2015
ups transistor repair

















This UPS (Uninterruptible Power Supply) was brought to me with the purpose to replace the seal lead acid battery rated as 12v/7Ah.



When the device was disarmed look what I saw:

UPS-SL650 repaired

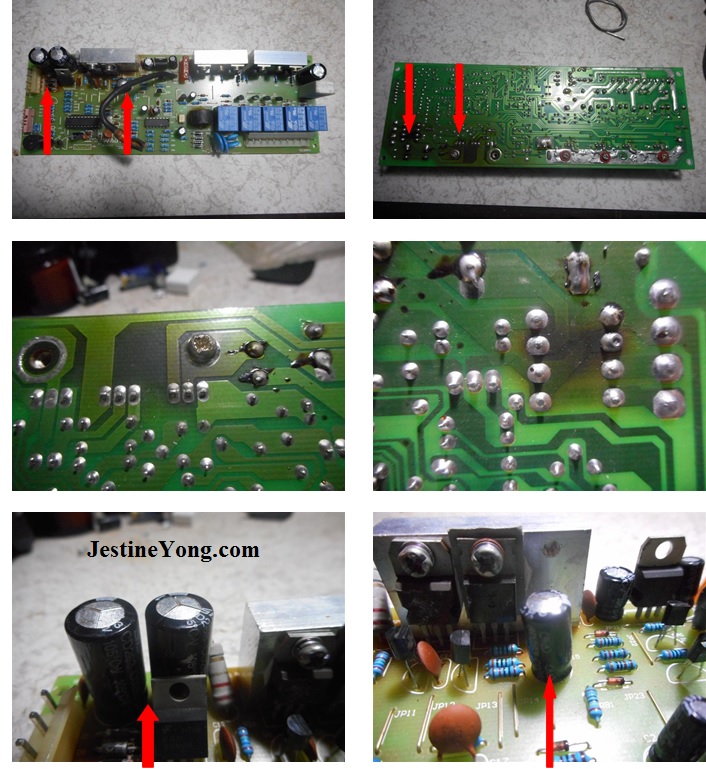

As you can see there were three bulged e-caps and a lot of dry solder joints and the PCB was black in some places indicates heating problem in the components.

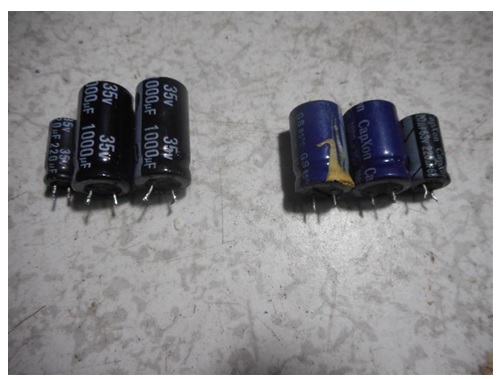

The three e-caps (2 x 1000µF/35v and 1 x 220 µ F/35v) were replaced.

bulgy cap

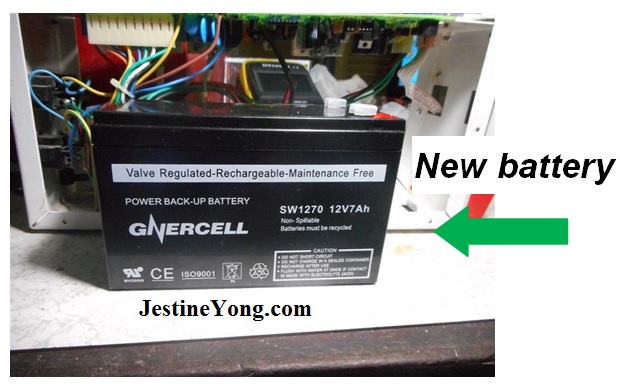

The dry solder joints were reestablish with fresh tin and the new battery was replaced.

ups battery

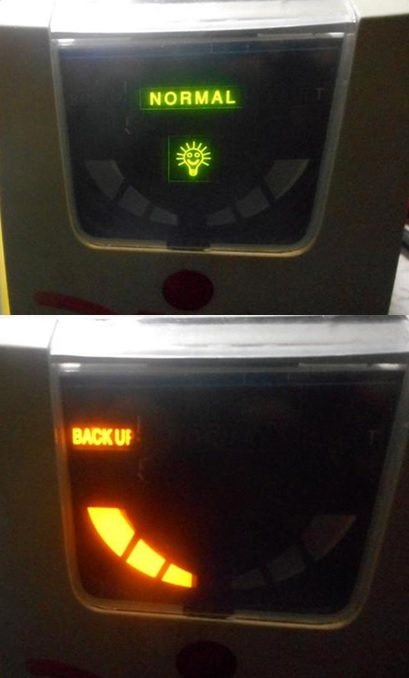

When the device was connected into the AC-mains and switched on, it was switching continuously from Normal operation to Back Up operation (inverted mode) once and again.

ups inverted mode

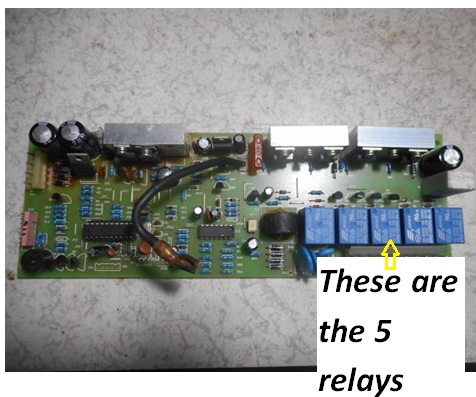

At this time the job continued, my first doubt were the relays, therefore they were extracted from the circuit.

ups circuit

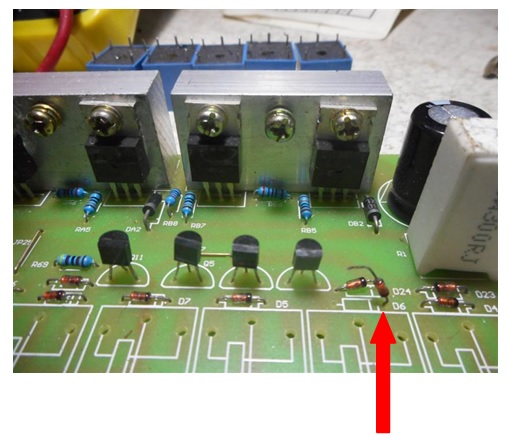

They were checked with a DC Power Supply and a Digital Multimeter, and all of them were ok. The components situated around the five relays were checked one by one with the DMM, and know what? A crystal diode was de-soldered from the circuit, I realized from this situation by chance because I was touching some components with the tips of the DMM

transistor in ups

The relays were re-connected again. This time the UPS was tested with the connection of the AC-mains and look at the result  .

ups repair
