COMPAQ CPU Motherboard Repaired

By on December 5, 2013
cpu-motherboard-repairing

















A CPU with Motherboard COMPAQ EVO D510 CMT was brought to me from a co-worker because the Operating System was working unstable and it was restarting most of the time. I realized that two main reasons could be causing this faulty:

  1. The Operating System.
  2. A hardware trouble.

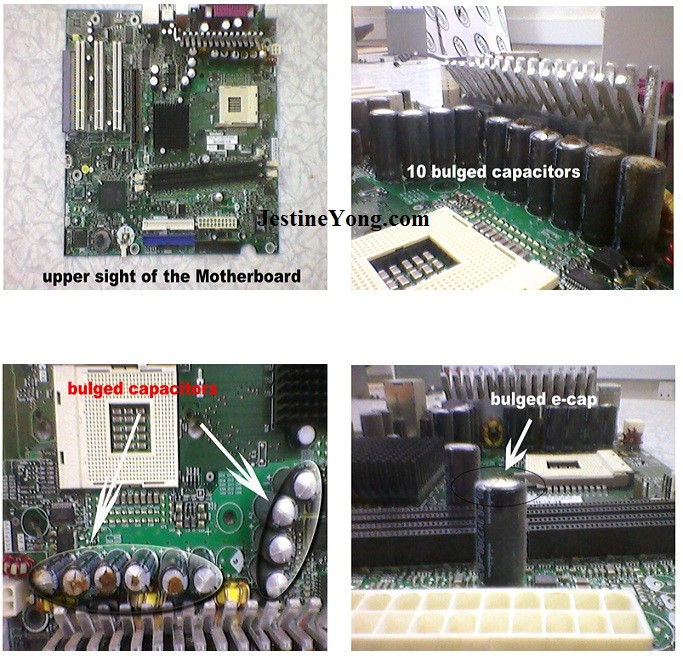

First of all I did a quick check at simple sight, and then I decided to open the chassis up to look if there was any bad/burnt component, bulged electrolytic capacitor, circuitry damage, etc. When I saw inside there were eleven bulged electrolytic capacitors (2200µF/6.3v) so they had to be replaced anyway to save the Motherboard.

cpu motherboard repair

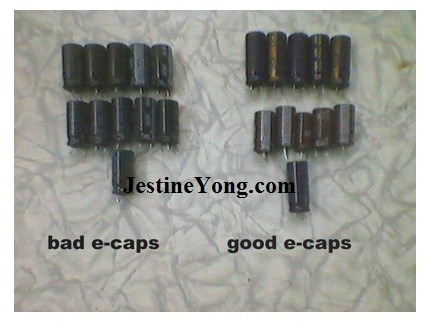

Obviously, the eleven e-caps had to be substituted with similar ones.

cpu motherboard repairs

It was a little difficult to change that amount of capacitors, but it was not anything impossible at all.

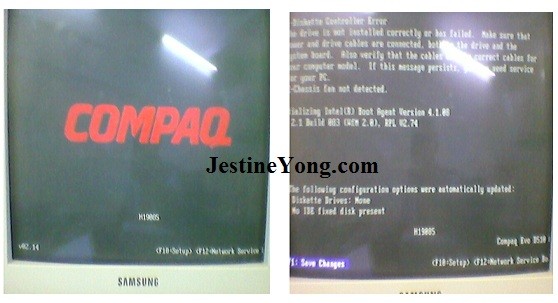

When job was concluded, a SMPS was connected to Motherboard such as a keyboard, a mouse and Monitor on the workbench. The SMPS was switched-ON and there was display.

cpu motherboard repairs

Then the Motherboard was inserted into the chassis and all connections were done, and I felt very happy for my co-worker because the Operating System has been working perfectly since that day.

humberto1

This article was prepared for you by Mr Humberto Rodriguez from Cuba.
