Digital Capacitance Leakage Meter Kit

By on October 3, 2010

digital capacitance leakage meter

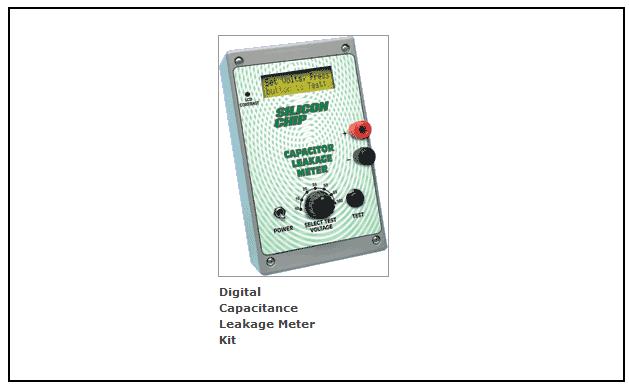

This website was recommended by Ibrahim R from Kenya. Many meters out there do not have the capability to test leakage voltage but this one have seven standard test voltages from 10V to 100V, allowing most capacitors to be checked at or close to their rated voltage. This meter could test almost any capacitors found in the market from ceramic, mica, monolithic, metallised polyester or paper, polystyrene, solid tantalum to aluminium electrolytics. If you have owned this meter we would like to hear your review about this tester. You also need to visit the other pages of the websites because it sell other parts too. Please click on the photo to visit the website.
