Handheld Metal Detector Repaired

By Jestine Yong on January 11, 2026

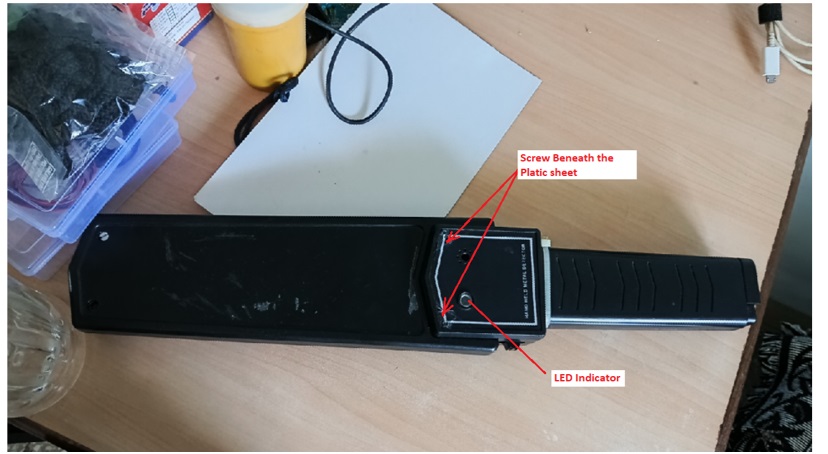

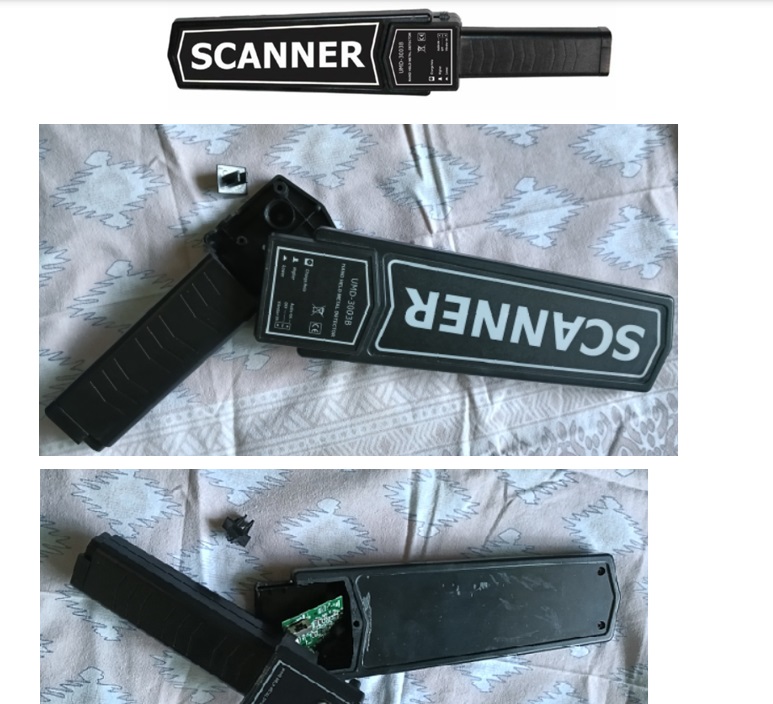

Received Handheld Metal detector in very bad broken condition for repair. On asking the reason to the customer he said some security person banged it on the table because it was not working.

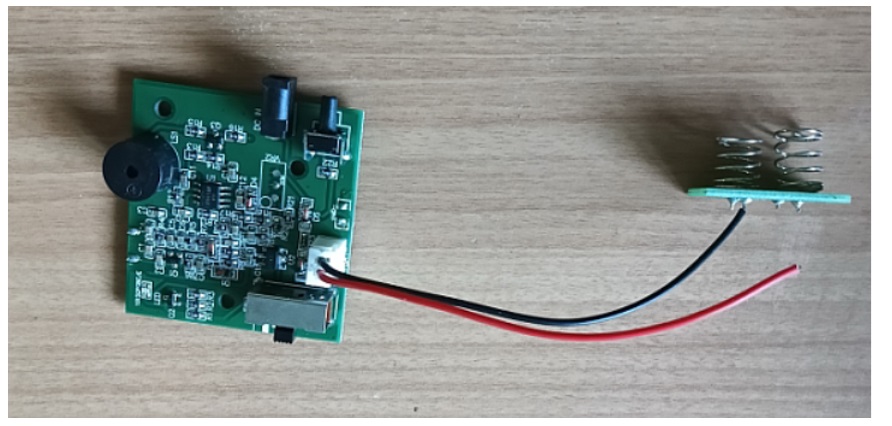

On inspection I found only 9V battery connection desoldered.

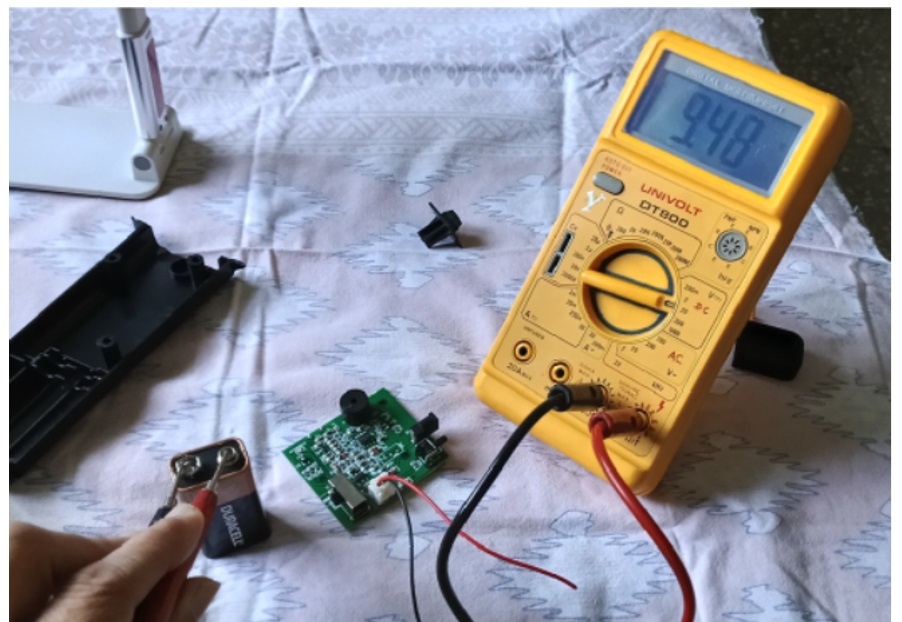

Checked 9v battery it is in range.

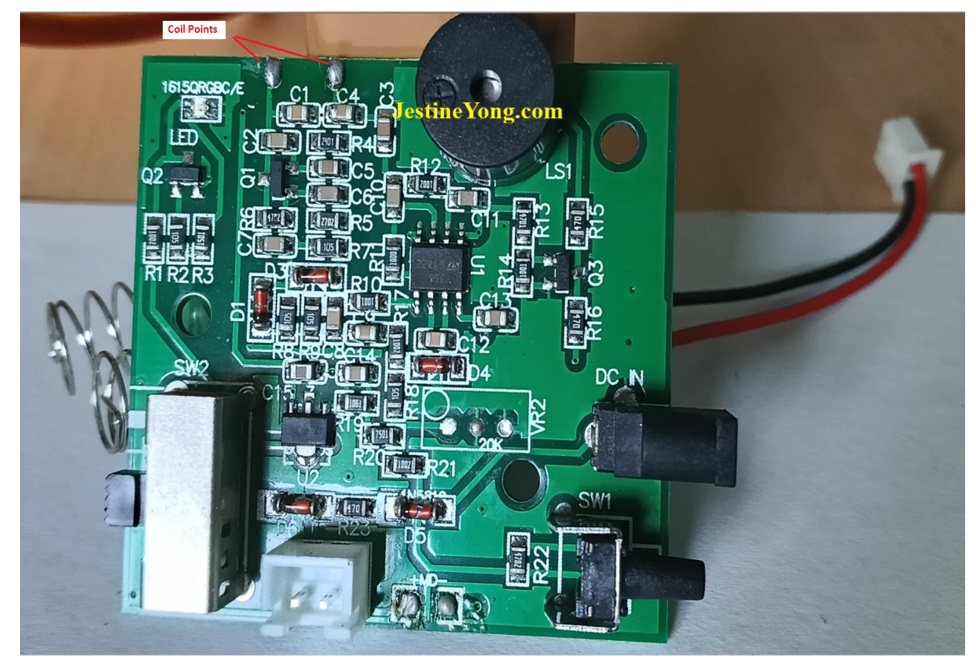

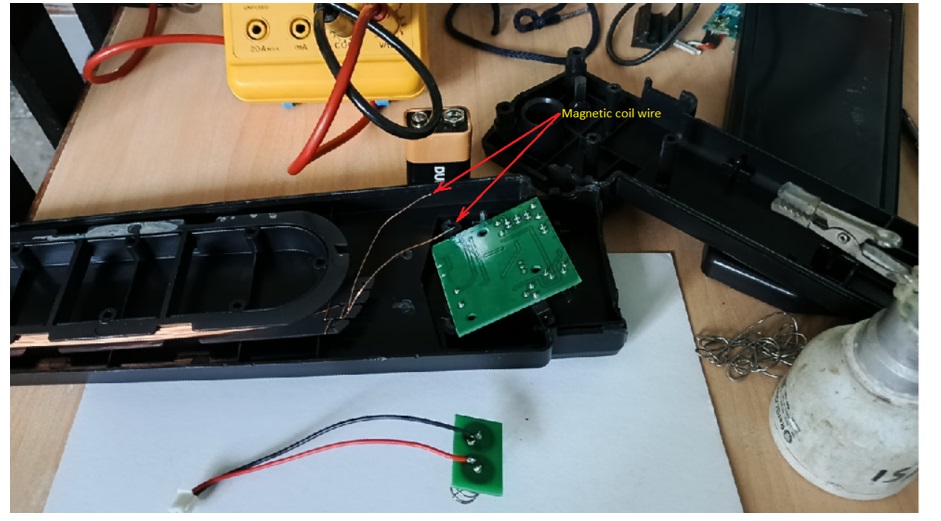

There is no other damage to the PCB Only Magnetic coil wire are broken from the solder.

Soldered coil wire on PCB & back assembled everything for testing.

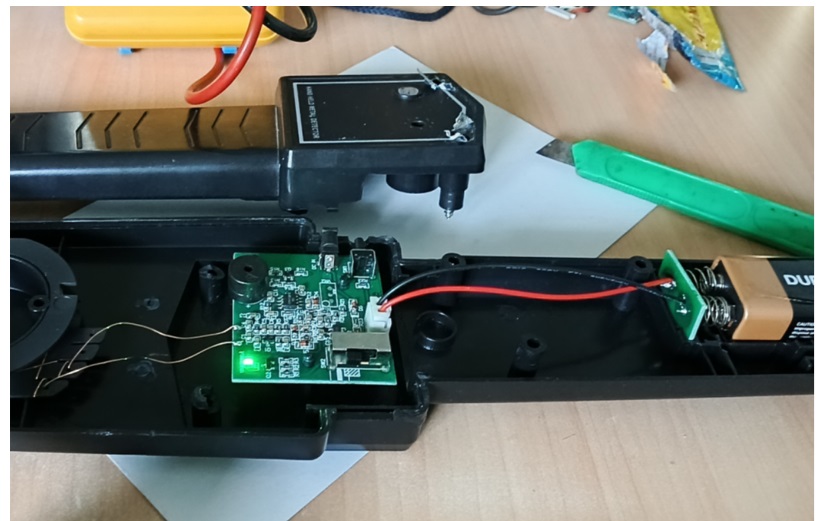

On connecting I slide the switch to detector to turn On the device & I can see Green LED is light up.

On operating switch selector, it is showing Vibration Mode but I did not found any vibrator motor inside.

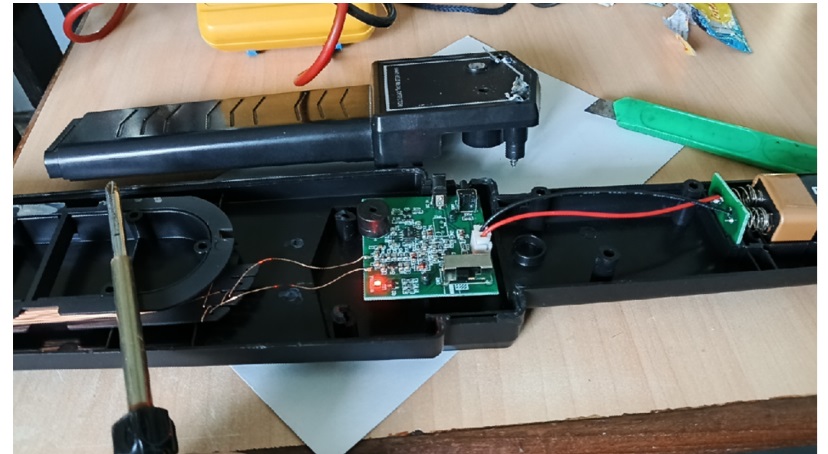

For testing of metal detection I put the screw driver on the coil & Green light turned to Red light with beep, indicated proper functioning.

As I said Plastic Body & screw holes are broken, I used plastic cable tie for fit the handle firmly.

Now device is ready to collect.

This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.
