Intermittent On-Off Problem Solved In CASTOR Induction Cooker-CT-DIVA60

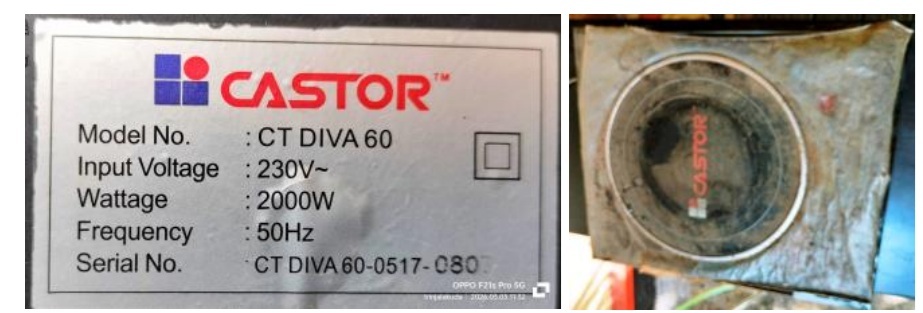

This induction cooker (hereinafter referred to as IC for brevity) belonged to the Grocery-Vegetable-Bakery shop situated opposite to my house. It was brought to me by the lady assistant mentioning that it gets off and on and sometimes did not heat. You can perhaps observe the condition of the cooker from the second picture above.

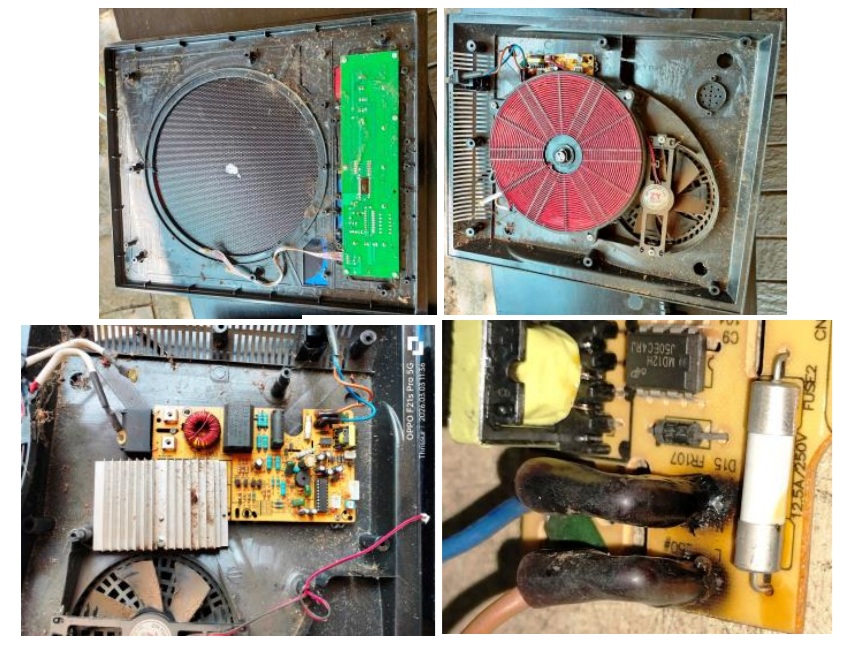

Even the centre portion, where the vessels are kept was as dirty as the cellophane paper that covered other areas! I opened the IC and cleaned inside thoroughly, which was a mess of cobweb, dust and dirt:
The last picture above is that of the two AC IN wires which were found to be charred with burning marks on the board. After a thorough cleaning of the inside, the fan, board, control panel etc., I looked for the trouble making components.

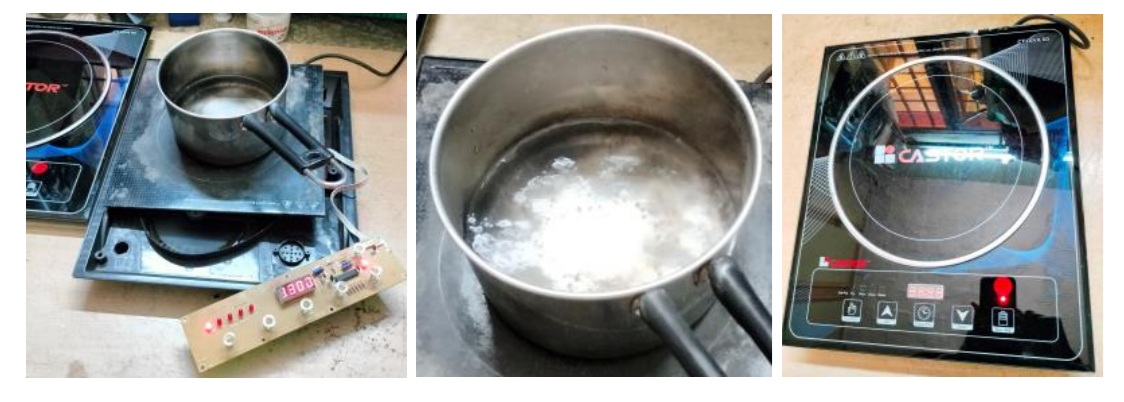

Though it looked like intermittent or insufficient contact (which means straining current flow) of the AC in wires, on further investigation, there were plenty of trouble making components in the board. After removing, cleaning and resoldering the AC in wires, I combed the primary and secondary of the board and replaced the electrolytic capacitors, the large Black capacitor across the coil, high value resistors apart from 8050/8550 transistors. Then retouched both the main board and control panel board and checked/re-checked for any man-made shorts. Cleaned the boards thoroughly and connected the coil and kept it on a ceramic top, which I use for testing purposes. When powered on, I noticed that the fan was not freely rotating even though I had opened its seal and lubricated. So, replaced that also, upon which the IC passed the bench test, as per picture proof produced below:

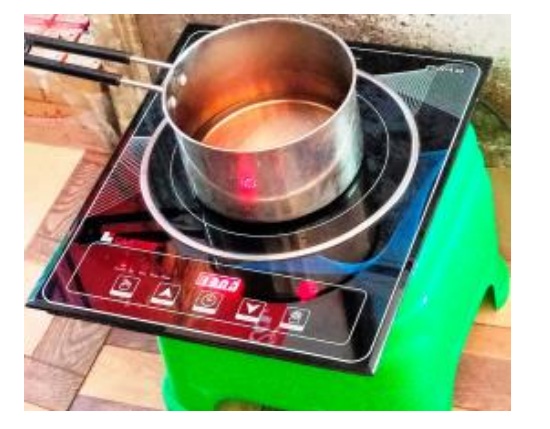

I had already cleaned the top so thoroughly that it looked and shined like a new IC, thereby getting a chance to pat myself! (LOL).
After testing it in my kitchen a few times, it was delivered to the shop, where it was demonstrated to their satisfaction. Mission accomplished, which got qualified for an entry into the satisfaction bag.
I did not collect the charges then and there, but opted to deduct it from the monthly bill of the account we had with them, to give a guarantee for satisfactory function of the IC, which the shop owner accepted very reluctantly!
This article was prepared for you by Parasuraman Subramanian from India. He is 76 years old and has more than 30 years’ experience in handling antique equipment like Valve Radio, Amps, Reel Tape Recorders and currently studying latest tech-classes conducted by Kerala State Electronics Technicians’ Association. He has done graduation in BBA degree, private diploma in Radio Engineering and retired as MD of a USA company. Presently working as Consultant to Hospital and other institutions.
Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.
P.S-If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!
You may check on his previous article on No Schematic? Don’t Worry, Here Is A Way To Solve – PHOENIX Open Care Warmer OCW100
