Pencil Sharpener Repaired

By on March 11, 2015

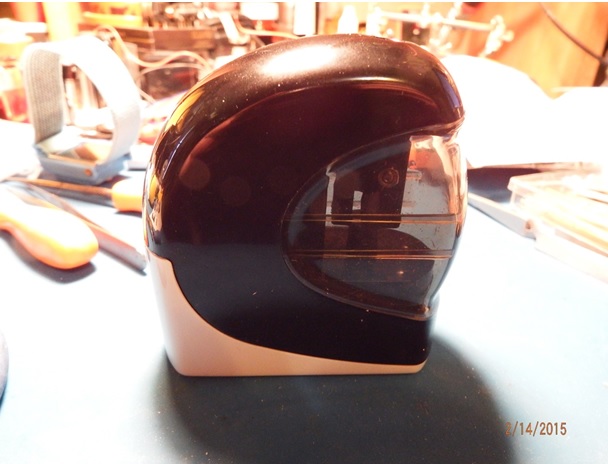

pencil sharpener repair























pencil sharpener repair

My pencil sharpener quit on me – I know they are cheap little things, but I have gotten spoiled by it and want it fixed. This is the first time I have ever opened one of them up.

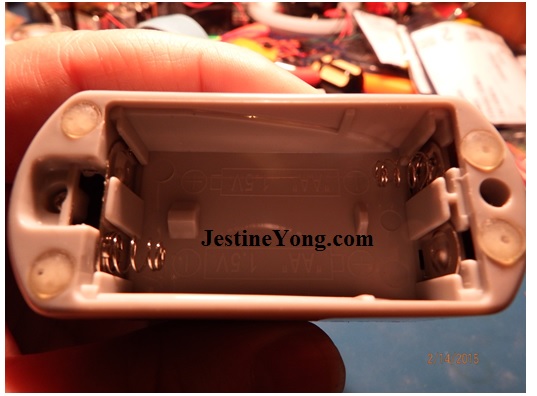

It uses 2 AA batteries. Although I just bought it a few months ago, it seemed like it was working harder than it should have to; and the batteries seemed to run down a little quicker than I believe they should. So hopefully I may be able to do something to help prolong the life of the batteries.

pencil sharpener repair1pencil sharpener repair2pencil sharpener repair3

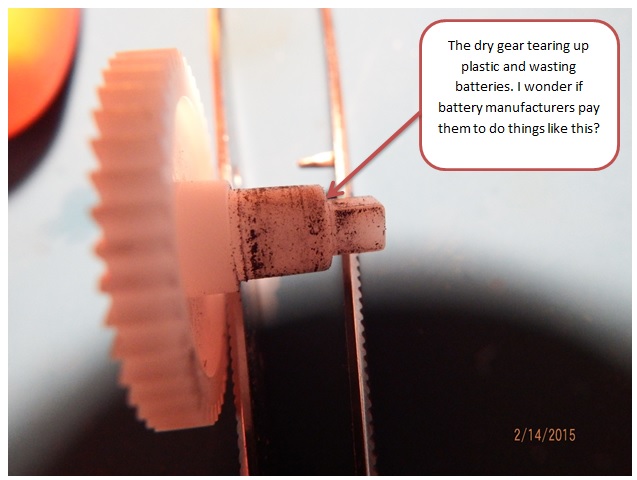

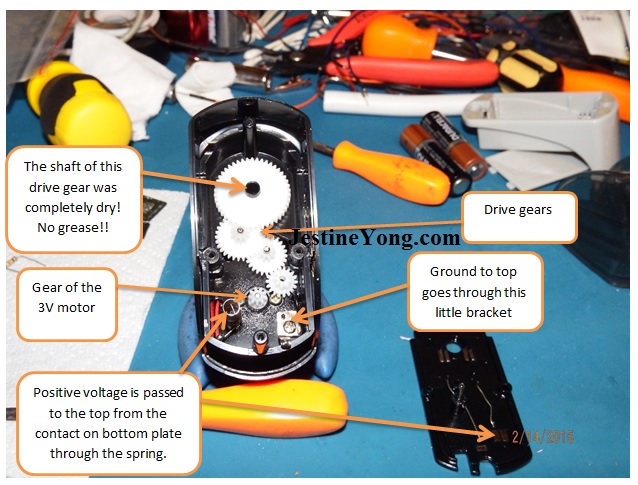

The large gear was completely dry and had no grease at all! That is where the extra friction was coming from and causing the motor to work harder than it had to. That is what was causing it to run down my batteries faster than I thought they should be. I knew something was wrong, and I was right.

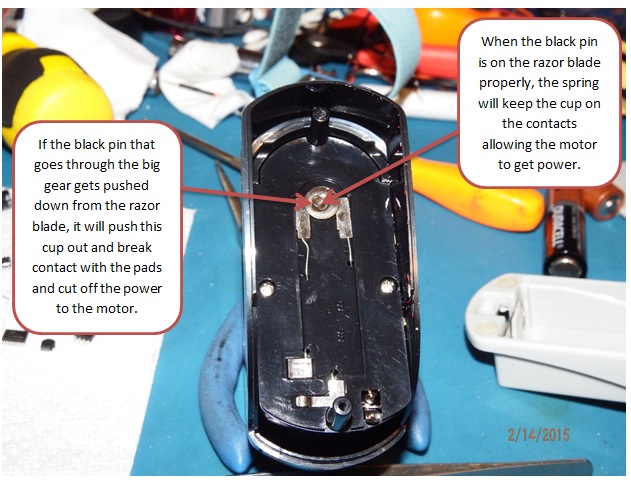

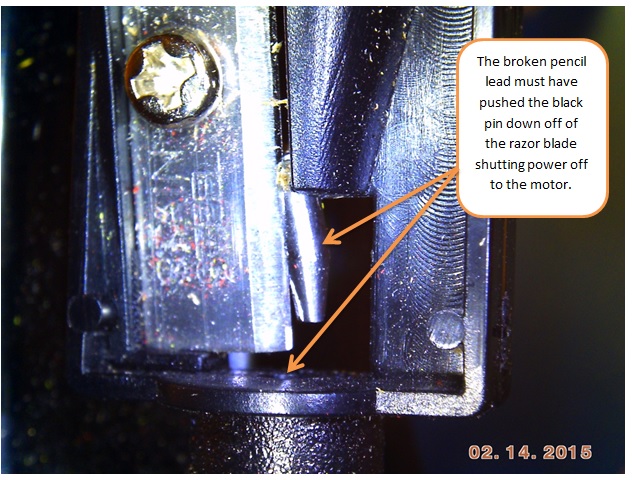

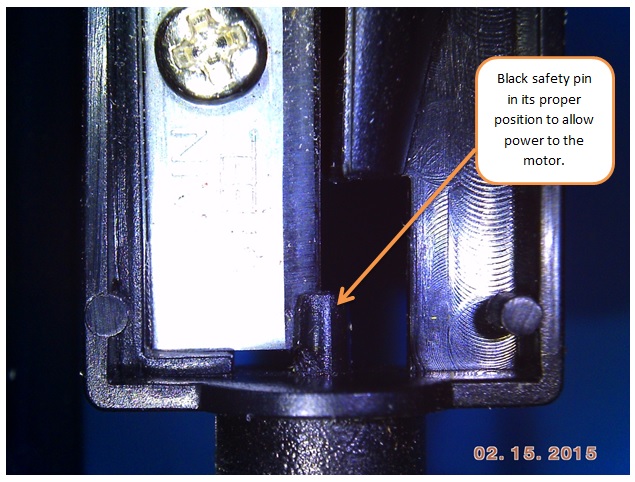

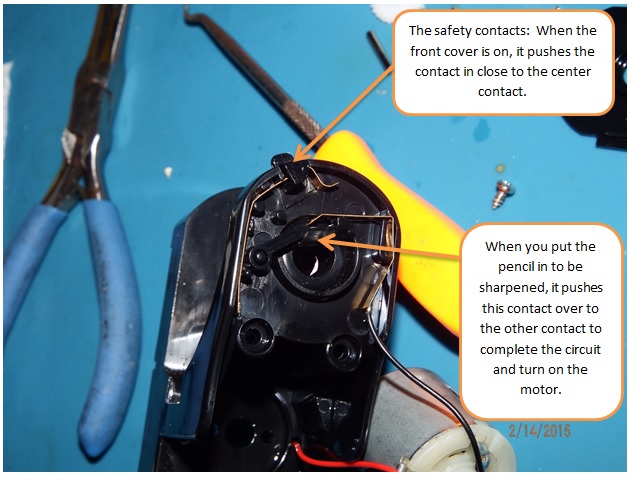

The black pin that goes through the center of the large gear is the one that fits on the end of the razor blade. If it gets pushed down it will push the little cap off of the contacts, (as seen in a previous picture) and cause the motor to shut off.

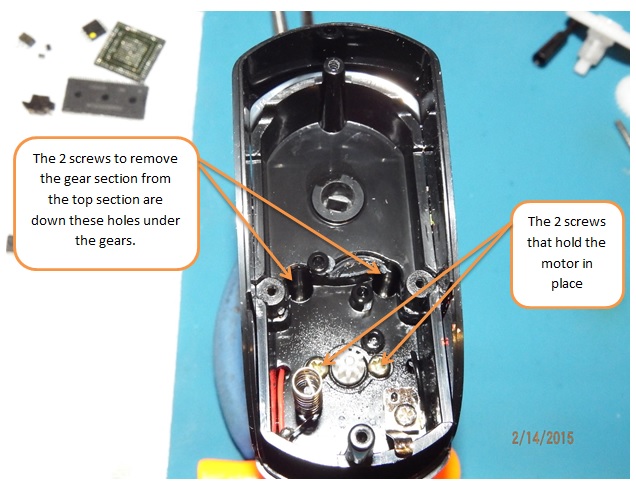

pencil sharpener repair4pencil sharpener repair5pencil sharpener repair6

I thought the sharpener was working harder than it had to, and I was right. It was either an accident that it had no grease, or it was deliberate. Either way, it will have grease on it when I put the unit back together.

pencil sharpener repair7

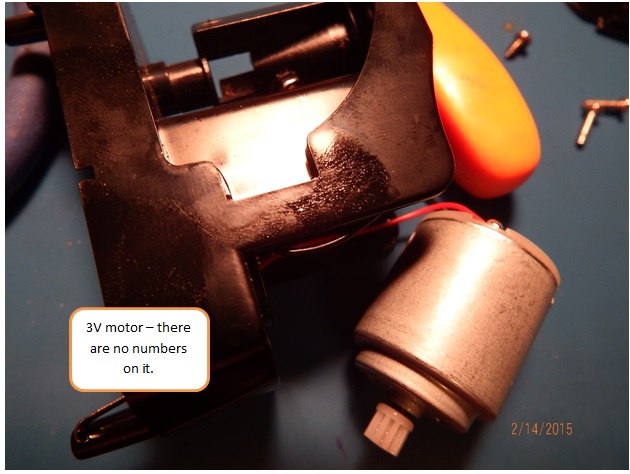

There are no identifying numbers on the motor. I measured it’s resistance to be 0.94Ω. Looking at the gear from the front, the motor turns clockwise.

pencil sharpener repair8pencil sharpener repair9

I put some good dielectric grease on the gears before installing them. Dielectric grease is not electrically conductive. So even if some gets splashed around it won’t cause any connections to short.

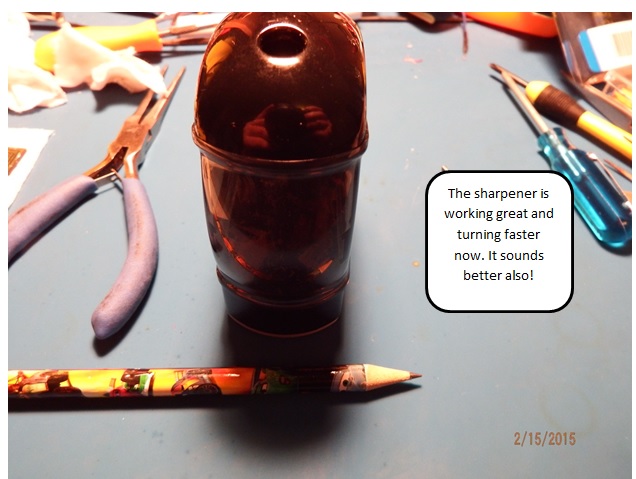

pencil sharpener repair10pencil sharpener repair11

robert calk

This article was prepared for you by Robert Calk Jr. He loves learning electronics and device repair.
