Servicing Two Nostalgic National Panasonic R441-B Radios











One recently acquainted customer staying around 150 Kms away from my home, brought SEVEN antique sets for repair after incessant follow ups with me seeking appointments to bring it. Though I had requested him to bring only a couple of sets which he wanted badly, he brought seven such sets to add to the already over-crowded pending sets with me.

Even though we had never met each other and the contact was developed only through Whatsup group dealing with antique sales, he seemed to be a very good and nice gentleman and we had good exchanges and learnt that he too belonged to a place from where my eldest sister-in-law came from. What looked like a distant contact became close because of all these and I had no strength of mind to return the excess sets, as he carried all these as a pillion rider, sitting behind his friend who drove the two-wheeler motor cycle from such a distance. The roads were all bad in many places due to repairs and maintenance and I was wondering what makes me so special for people to take such pains taking travels to reach me! I do not find anything extra special in me that deserved such a consideration which pricked my conscious very much!

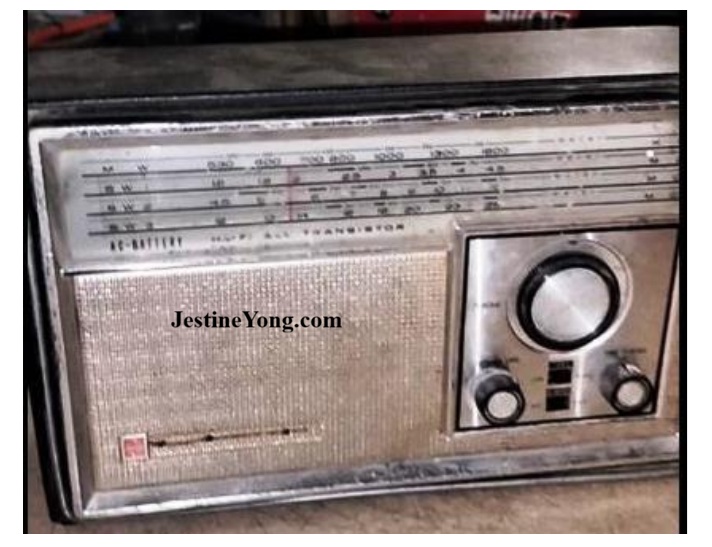

As the model label and all other details of the set had got obliterated due to ageing and decay, as the inner cover providing the battery compartment was missing, I took assistance of Google Lens to locate the model number and other details from the following site: https://www.radiomuseum.org/r/panasonic_r_441b_r441.html

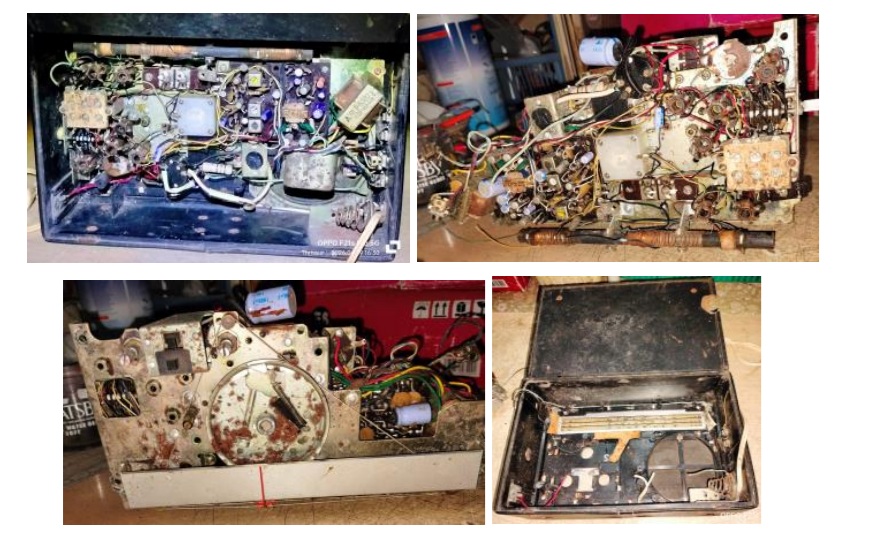

Those of you who are interested in seeing the beautiful crystal clear pictures of this model can visit this site. Now let me show you the pictures of the inside of the set under discussion:

Surprisingly, the set was found having life when I applied power. I could also download the service manual from the website, which helped me very much. Here is the link: https://www.manualslib.com/manual/3361439/Panasonic￾National-Panasonic-R-441b.html

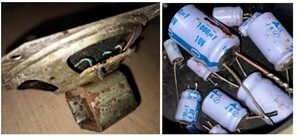

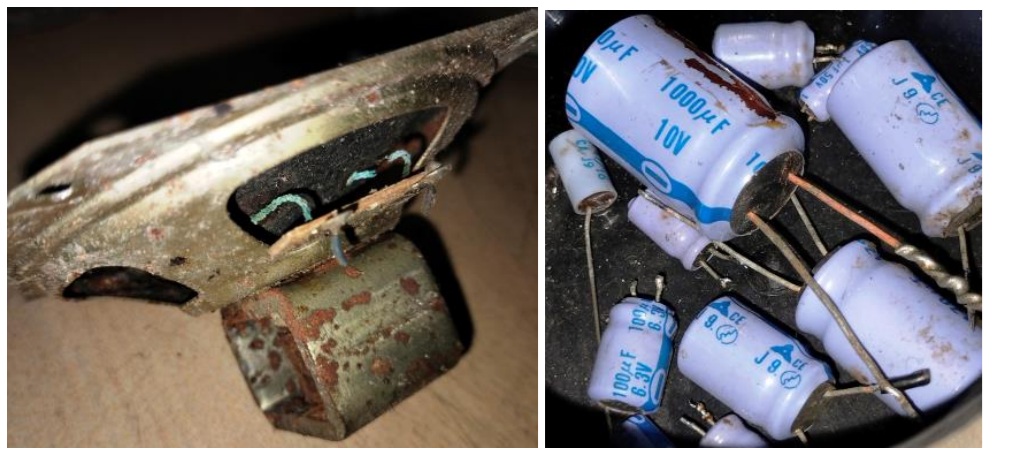

As a routine maintenance, I replaced all the electrolytic capacitors. Noticed that the speaker wires had developed fungi and one was in cut condition, picture of which is given below along with that of the caps replaced:

Cleaned and rejoined the cut wire using a thin and flexible copper wire and cleaned the boards and inside of the set thoroughly. In fact, I loved to get a chance to touch such an old set and I visualized who all would have assembled this set when it was manufactured and was thrilled to establish an indirect connection with all those souls, many of whom would have left this world in all probability! In fact, I felt elevated and was very, very happy indeed. Another wonder was about solder! There was absolutely no dry solder at all! That showed the quality of work done those days!

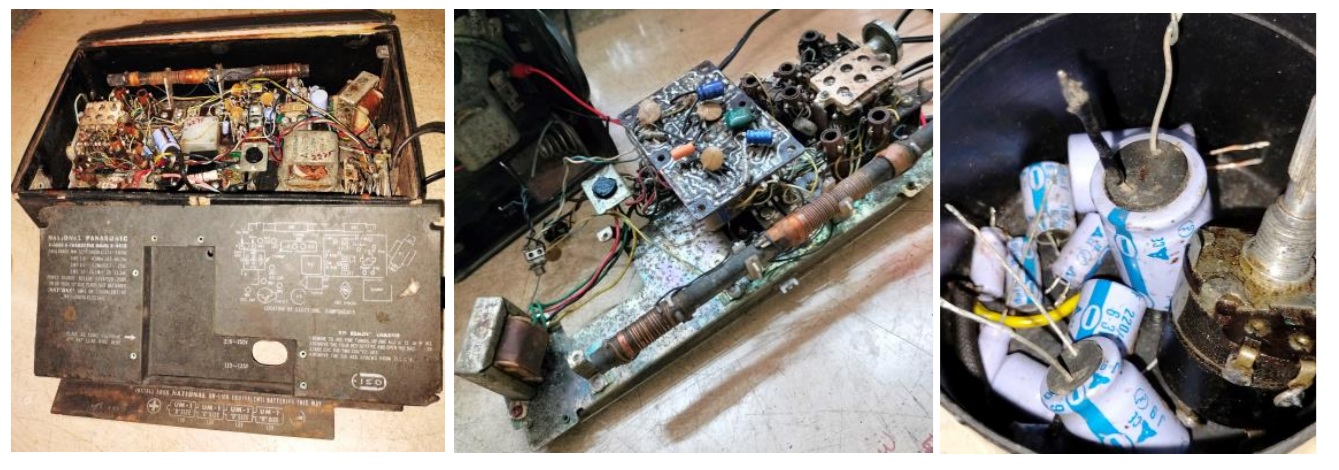

After completing my work, I lubricated the band switch, volume control and other connectors. Then moved the switches and controls back and forth vigorously for cleaning up the dirt and dust settled inside. When I applied power and tuned to the local stations in MW band, the radio was found working very well, bringing exciting joy. Even many stations in the other bands were picked up. There was no need for any alignment of IF or RF coils found necessary. I allowed the Radio to be working for sufficient time before reassembling everything back. Before the spirit and enthusiasm of success wore out, I took up the next set which was the same make and model. I did the same type of restoration like before, after I checked that the set had life and the inside was far better with its battery compartment-inside cover intact. The volume control with the mains/on-off switch had gone bad and I replaced that also. Let us have a look:

After the restoration work and cleaning to the extent possible, the Radio was found working excellently in all the four bands increasing my thrill and excitement.

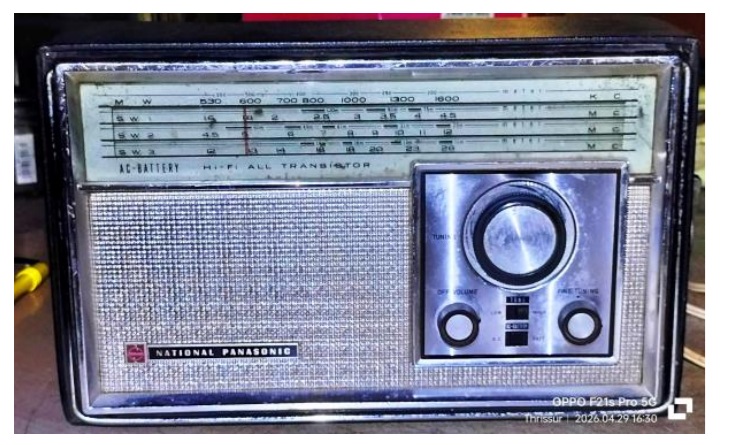

Following is a picture of the finished Radio, which is an extract from video:

Double mission accomplished with satisfactions blowing up to the maximum, which were welcomed with applauses by the hundreds of inmates of the elated collection bag!

This article was prepared for you by Parasuraman Subramanian from India. He is 76 years old and has more than 30 years’ experience in handling antique equipment like Valve Radio, Amps, Reel Tape Recorders and currently studying latest tech-classes conducted by Kerala State Electronics Technicians’ Association. He has done graduation in BBA degree, private diploma in Radio Engineering and retired as MD of a USA company. Presently working as Consultant to Hospital and other institutions.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

You may check on his previous article on No Schematic? Don’t Worry, Here Is A Way To Solve – PHOENIX Open Care Warmer OCW100
