ac stabilizer repair

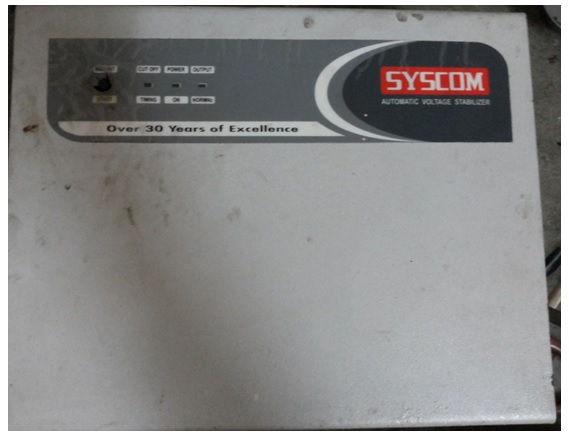

My mother called me that her Air conditioner was not working. After work I went straight home and took my tool kit to check the air conditioner. The air conditioner was not getting power from the ac Stabilizer. So the real problem was the stabilizer and not the air conditioner. The ac stabilizer was very old (more than 10 years) with the model by the name of Syscom and rated 4KV. Take a look at the photo below:

ac stabilizer repair

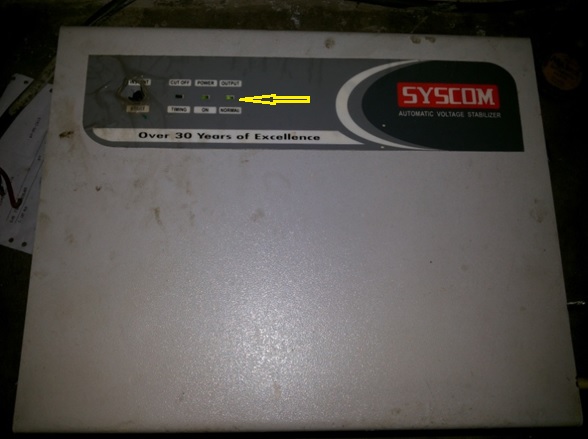

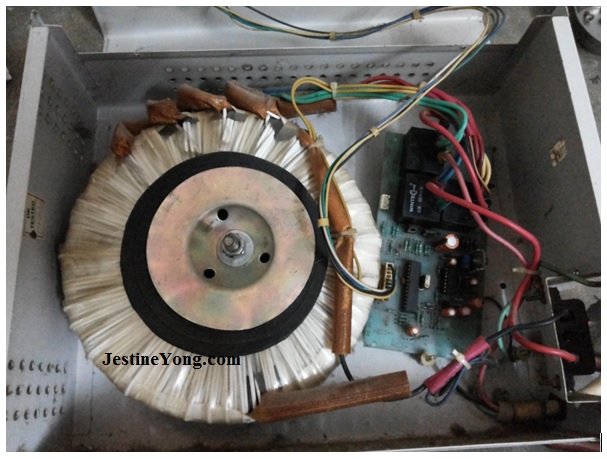

All the three LED indicators were not lighting up when the stabilizer was switched On. So I opened the top cover to inspect what may be the reason.

The power supply was reaching the relay but no further. I saw a burnt mark at the side of the relay and instantly I know that it was the root cause of the failure.

burnt relay

ac stabilizer repairing

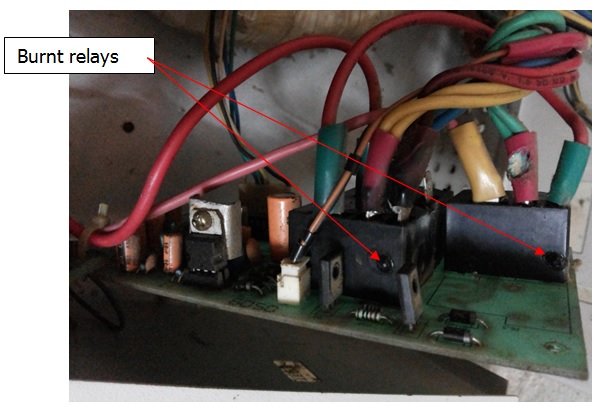

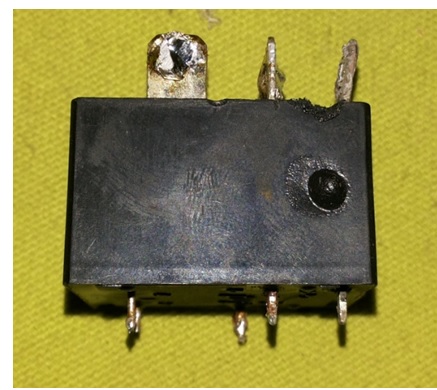

Photograph of faulty relay can be seen in the below picture. There were total three relays and two relays were defective.

bad relay

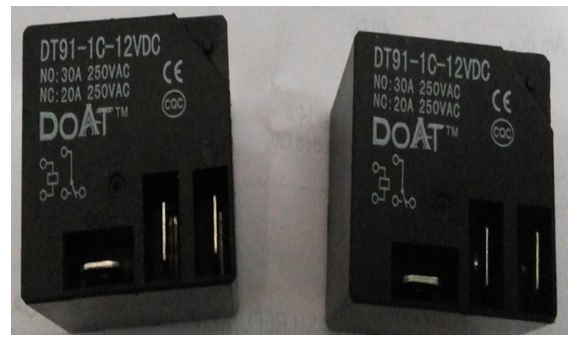

Since it was already late so I decided to buy the relay the next morning. After breakfast I went to the electronic shop which was located about 6 Km away from my home. I got new relays for about INR 40.00 each (about USD0.70).

 ac stabilizer repair new relay

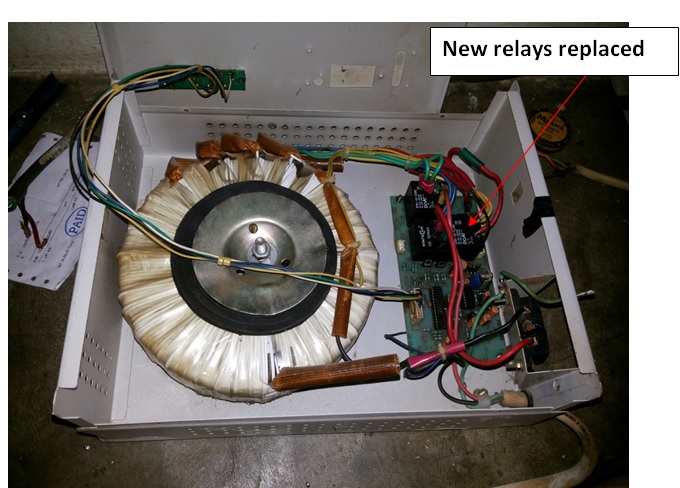

I replaced it with the new relays and voila the ac stabilizer was back to life once again.

ac stabilizer repairs

 ac stabilizer repairings

Mission accomplished.
