ASUS PC Repaired

By on September 18, 2015
pc repair















A co-worker asked for my help because his PC (ASUS P5LD2-VM) can’t be turned On. The cover of the cabinet was taken out, and the voltages (+5 volts) of PSON and Standby from the SMPS were checked on as well. Then the SMPS was turned On using a piece of wire between the PSON and a Ground connector, and it started perfectly fine.

The duty was a little harder from now on. First of all I followed the next steps in my procedure:

  1. To unplugged the Power Switch connector from the System Power Connector of the Motherboard.
  2. To short with the tip of a screwdriver the contacts of the Power Switch in the Motherboard (marked with the green arrow in the photo below).

pc repair 1

Note: If you are not an expert in this kind of procedure you have only two options: to look for the paper format User Guide or digital format (provided with the CD which comes with every Motherboard). In the photo above the digital variant was used.

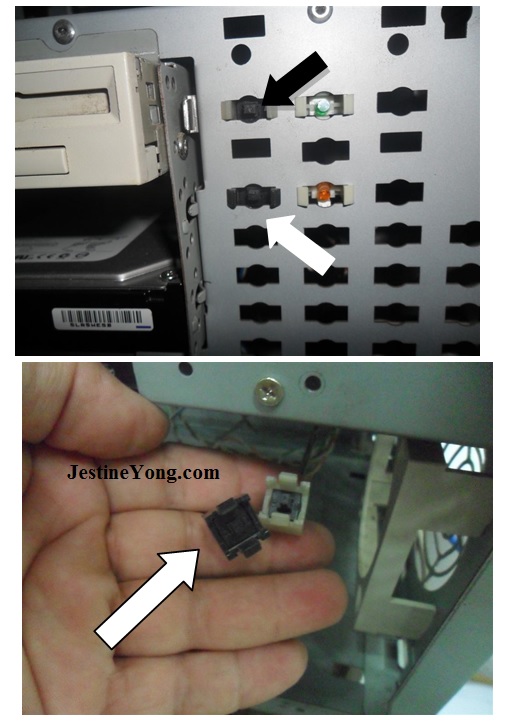

In the case of this PC, the system started with the jumper between Ground and PSON terminals, so the Motherboard was really fine. Now the only malfunction was in the Power Switch button. It was extracted from the cabinet and the Reset Switch button as well.

pc repair 2

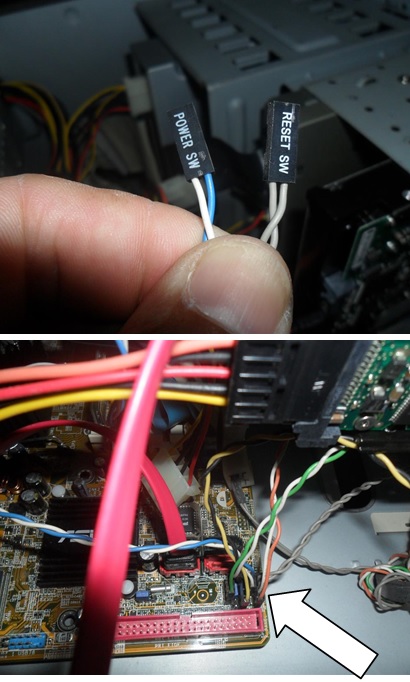

When the Power SW was tested with the Digital Multimeter it had no continuity when you pressed it, so the solution done was to interchange the connection between Power Switch button and the Reset Switch button in the Motherboard.

pc repair 3

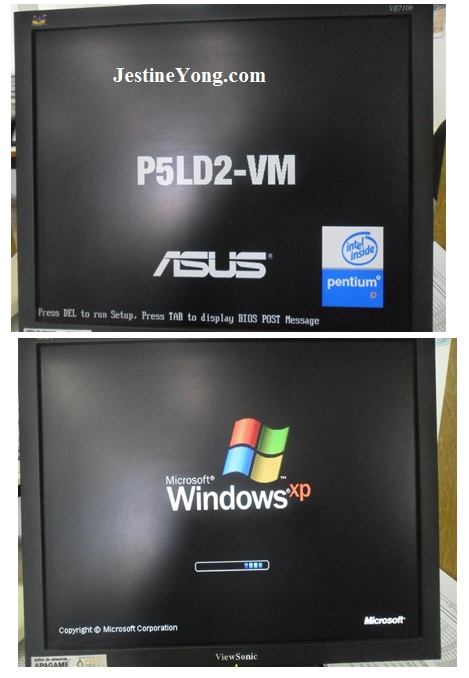

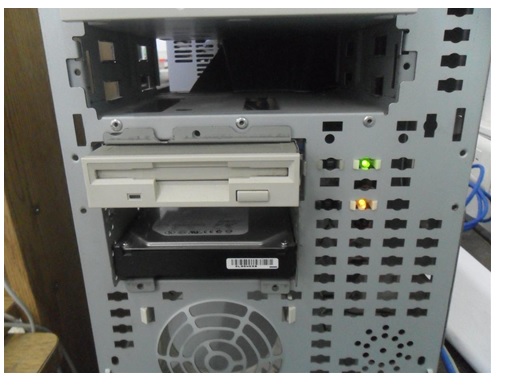

Both buttons were re-connected in the cabinet and when the Reset switch was pressed look at the result in the photos below:

pc repair 4

asus pc repair

Note: Many times is very hard to get a new switch button to substitute the broken one. You would have to buy a new cabinet (which not worth the investment) Therefore we usually use the Reset Switch button as replacement. Mission accomplished.
