Beware Of Using Auto Detect Auto Range Multimeter – Case Of AHUJA Portable PA SYSTEM NBA-30WL

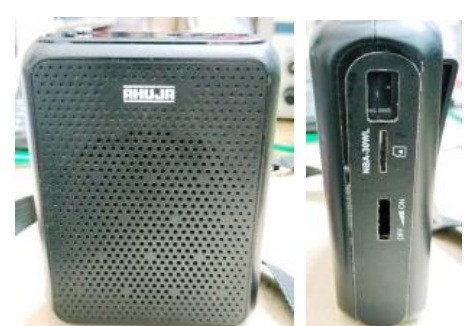

This Ahuja Portable PA System had come to me in May, 2025 for a complaint of ‘dead’, about which I have already submitted a report which is in queue. The re-visit was in August, 2025 with the complaint that battery backup was not good. I found the battery to be weak and needed replacement.

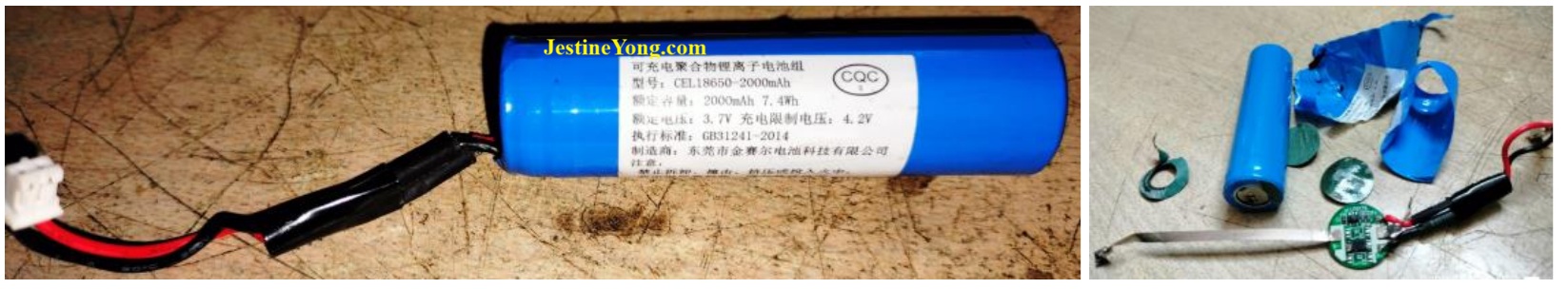

As I suspected there was a charge control circuit in the battery pack, though difficult to detect it from its size at a glance, I peeled the covering like a banana and found the following:

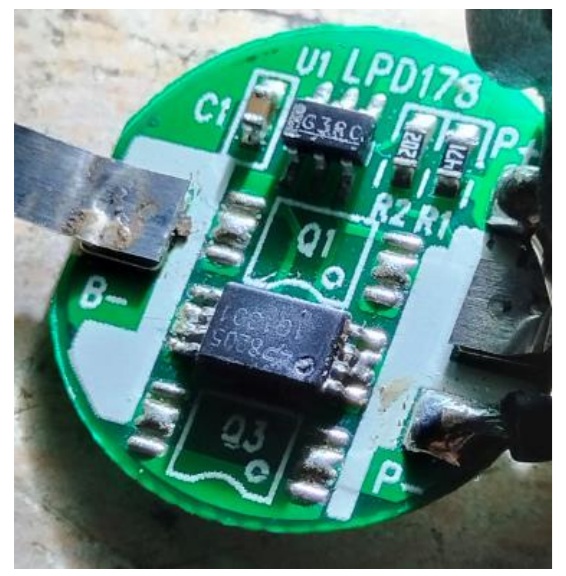

The charger circuit was using mainly two SMD ICs, one of which was a Mosfet. Let us have a closer look of it:
The charge control IC had a mark of G3R and Mosfet 8205. Let us have a look of its internal diagrams:
Since exact replacement of the battery was not available in the market and space indeed was a constraint in this device, I checked for any change of value or defect in the only few components used. I did not find any.

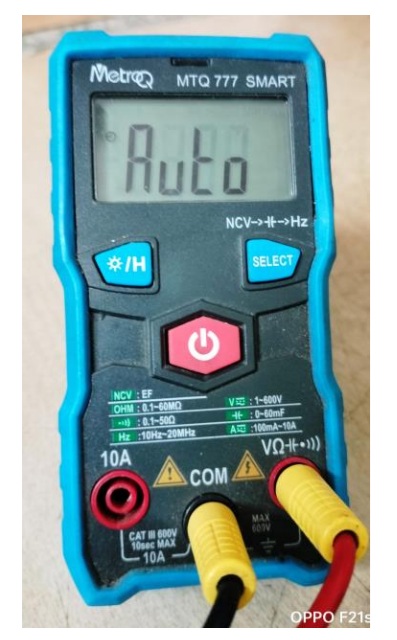

I used the following auto detect, auto range multimeter for this purpose as it was very easy.
This instrument was very convenient as it never required turning of knobs and selecting the mode & range. It will detect resistance, AC or DC Voltage or AC or DC Ampere (when red probe is connected to 10A) on its own. On switch on it would be in resistance range and as soon as a voltage is detected, we can listen to a relay clicking and the meter shifting to voltage measurement. The selection on top right is for NCV-Capacitance-Mhz. Let us keep this info in mind.
Click here to check out Humphrey’s ebook on Mobile Phone Repair
I bought a new 3.7V Li-ion battery and charged it to its peak using a different charger externally. Then welded the positive and negative rails of the charger board and covered it with insulation tapes like how it was. Then used this multimeter to check the output before connecting it to the device. The multimeter clicked and shifted to voltage measurement mode, but the output was showing zero! I was wondering what went wrong! The battery was showing full charge when I had checked it. Then I remembered one incident when I went to a home for installation of their TV after repair. As a routine, I checked up their electrical fittings and used this multimeter for the AC measurements on the power outlet. It was showing ok. Since the TV was having three pin connections, I wanted to check the N to E and L to E voltage measurements. The moment I touched the Earth point, the ELCB tripped in their house. As we all know, the multimeters used DC voltage with controlled current and voltage when measuring resistance. So, that momentary feeding of a few mV and mA to the earth line tripped the ELCB! More or less was the same thing happened here! The momentary shorting caused built in protection activation and the Mosfet remained switched off! Look at the disadvantages we have to face when using such sophisticated, advanced technology instruments!

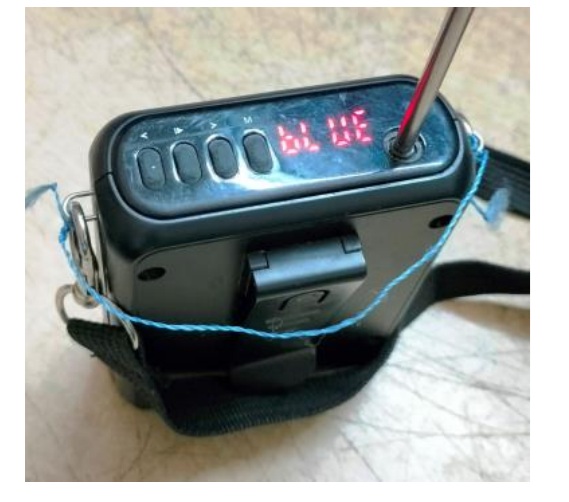

Anyhow, I connected the battery to the device and it was found working very well. As the battery was fully charged, there was no display of battery level indication. I fixed the covers and used all modes and found it to be ok. Mission accomplished with lessons learnt in the process that caused induction of satisfaction into the bag!
