Car Digital Voltage and Temperature Meter

By on February 6, 2015























volt temperature gauge

Two weeks ago, I called up a guy to install the Digital Voltage/Temperature meter (gauge) on my Nazaria car dashboard. The reason I install it is to monitor the Voltage and the Temperature reading in real time. This means if the battery, alternator, radiator or the fan and etc have problem, the meter will beep indicating there is a problem. Once you heard the beep sound, it is advisable to stop or park your car at the side for further checking or you can call up the mechanic to inspect your car.  This will prevent your car from further damage (especially the engine) or stall halfway in the middle of the road. This will save the cost of a heavy repair price. This meter was recommended by one of my former students. After two weeks of driving, here are the results that I’d got:

Temperature reading- Driving in the afternoon:

Normal driving (highway)- Temperature between 86 to 90 degree Celsius

Going uphill- Temperature can be between 92 to 98 degree Celsius (usually will come down again to about 94/95 once the fan kicks in)

Traffic Jam- Temperature between 90 to 94/95 degree Celsius

Note: This result is based on my country weather which is now at average 30 degree Celsius. In the morning where the temperature is a bit cooler the overall temperature measured would be slightly lower. If the reading keeps on increasing even after 98 degree Celcius (beeper will sound) this means there is a problem.

Voltage Reading

Before starting engine- About 11.7 to 12.3 Volt

Engine is running- About 13.7 to 13.9 volt (which means Alternator is running/charging)

Engine is running with Aircond, headlight and brake lights On- About 13.2 to 13.5 volt

Note: If you get less than 12.8 volt or more than 14.8 volt while the engine is running (without turning On the Aircond/Headlamp etc), it is time to send the car to mechanic for inspection especially the alternator. Below is the chart for car voltage reference:

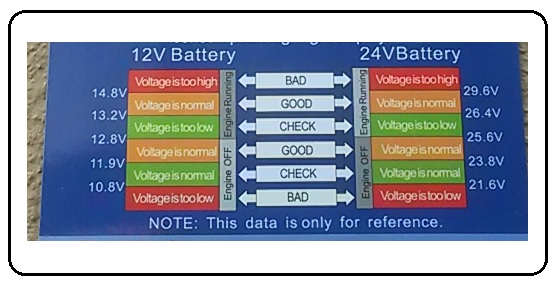

carvoltagereference

Meter specification:

– over 98 Celcius -the beeper will sound

– Less than 10 volt- the beeper will sound

– Meter can be installed on big vehicles that uses 24 volt





Once you have understood the reading of your car (it can be installed on all kind of cars), you will know when to send it to mechanic for further checking.

If you are driving a new car then it is not necessary to install one but my car is already more than 5 years old and clocked 110,000 km! Last year July, after my training class at about 6pm, I could not start my car because the battery was totally flat (my car was using a maintenance free battery). Then on August the same year, one night while carrying my family on the way back home, the car started to jerk intermittently for just few minutes and then back to normal again. The next day in the morning, I could start the car with one try and thought it was fine. The problem started when I was half way to my office, it started to jerk again and this time there was no sign that the jerk will stop. I quickly drove my car to the nearby workshop and the moment it reached the workshop, the engine just went dead. Guess what the problem is?  It was a bad alternator!

The mechanic told me the alternator was not in good condition causing less charge to the battery. Once the battery power is drained by the Aircond dc blower fan/headlight/signal light/brake light and etc, and if the alternator have problem there would be no or not enough charge going back to the battery and the battery voltage will drop. If the battery voltage is too low, the “Engine Control Unit” ECU in the car would not function properly causing the car to jerk and stall.

Just imagine if I had the volt/temperature meter installed at that time, I would have driven straight to the mechanic instead to my office or outstation (worst scenario). With the information provided by the meter, you could prevent your car from breaking down in the middle of the road and saving money from calling a tow truck service or etc.

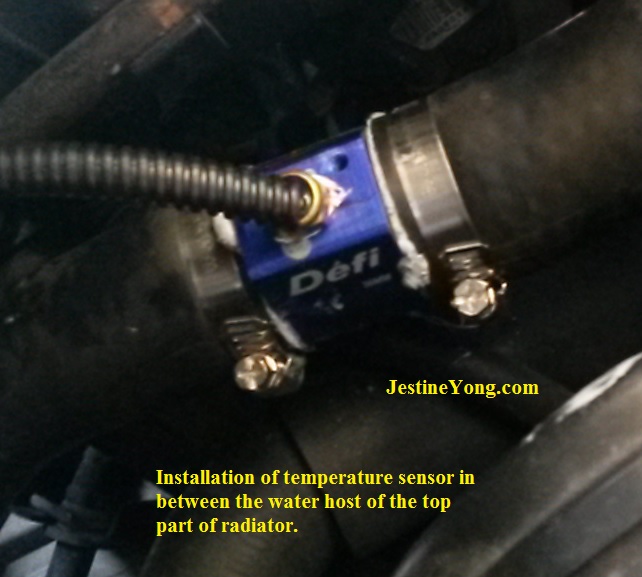

car temperature joint pipe

I spoke to my friends about this meter and two of them had a great interest on this meter. The first friend told me his wife was driving his car (my friend was not with her) and suddenly the water temperature went up and there was no alarm and she did not notice it. She only stops when she saw thick smoke (radiator steaming) coming out from the front bonnet. It was too late and my friend had to overhaul his car engine.

The second guy told me, his car already overhauled twice within 6 years due to engine overheating problem. By the time he noticed the car temperature went full swing, it is already too late.

I heard a story of another guy who told me his car was having problem in the middle of highway due to overheat problem. He let the car temperature to cool down before driving to the workshop. Eventually he still have to overhaul the engine because he found that his car efficiency was not like original anymore.

The real culprit (problem) is the original Naza ria car water temperature meter. Why? Let me ask you a question-“Do you always look at the car temperature all the time while driving?” I guess no. With this meter, it will beep once it exceeded to more than 98 degree Celcius but the car water temperature meter needle would still shows normal!!! This is the problem.

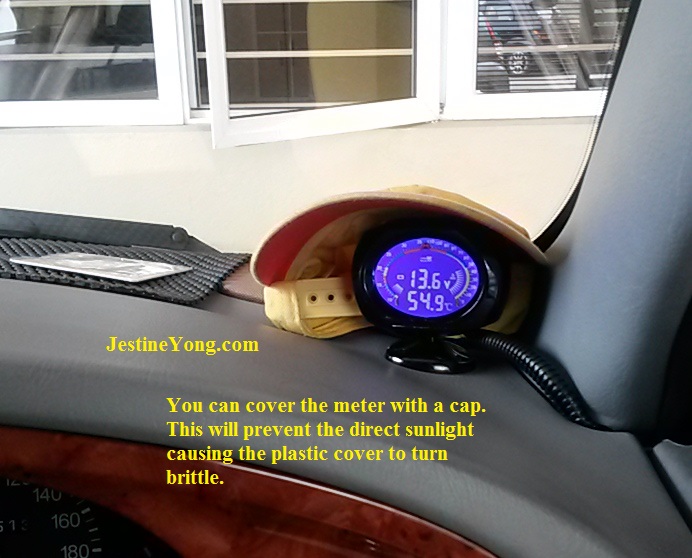

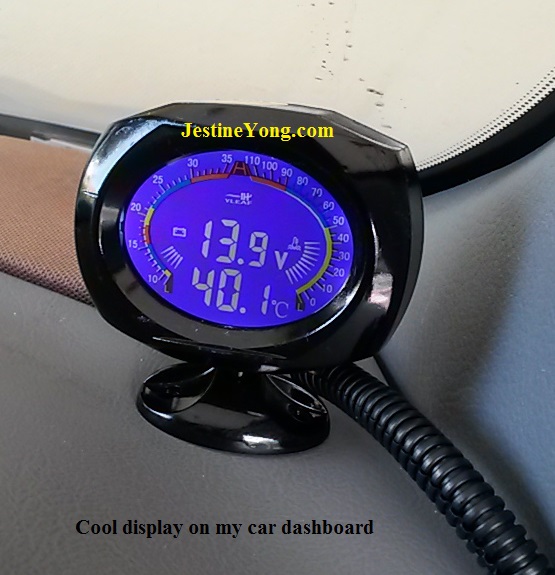

volts and temperature meter

Another good point of installing this meter is, it can let you know if the radiator and the cooling system have any leakage or not. This means if the reading of the temperature is say 50 or 60 degree Celcius (even after 20 minutes of driving) you would know that the water level is not touching the sensor and this indicates leakage in the radiator system.

The meter was installed by Mr Haris and he is a humble guy and if you are a local and wish to fix this meter you can email me and I will give to you his contact number. His labor/ transport charge plus fixing the meter with the sensor and water temperature joint pipe was about USD55.00 which I find it to be reasonable. If you stay far from his place (Jalan Kuching), he might charge a bit more for the extra mileage.

Conclusion- Since my car engine one of the common faults is overheat, after fixing this meter, I have confident in driving the car especially travelling long journey (holiday with family) and fishing trip with friends. I rather pay this amount then to regret later in overhaul the whole engine. If you have any comment/story about your car overheated engine or already have this kind of meter or other interesting meters installed in your car we would like to hear about your story.
