Conformal Coating Removal Pen and Machine

By on March 22, 2011

What is Conformal Coating?
According to Wikipedia “Conformal coating material is applied to electronic circuitry to act as protection against moisture, dust, chemicals, and temperature extremes that if uncoated (non-protected) could result in a complete failure of the electronic system. Most circuit board assembly houses coat assemblies with a layer of transparent conformal coating rather than potting.”

Epoxy, Silicone, Urethane, Parylene and Acrylic can be removed by the Conformal coating removal pen or machine

For more information about Conformal removal please click on the photos:

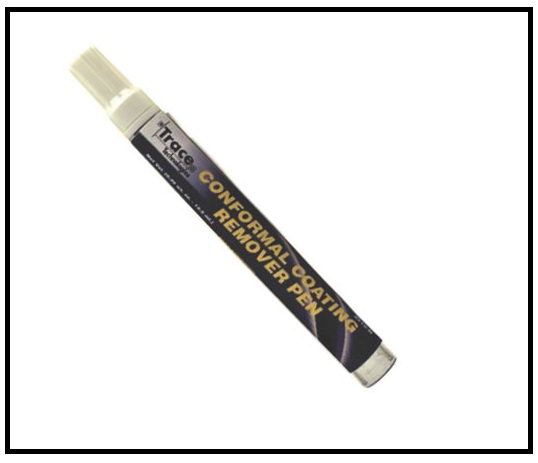

 conformal removal pen

 conformal removal machine

Likes(0)Dislikes(0)

5 Comments

  1. underfloor heating systems

    March 23, 2011 at 2:16 am

    I have some thin craft copper which I am going to apply some (100kv per mm) conformal coating to on the rear side of (to act as a dielectric surface on the back of a conductive) to make some EMI material.

    Likes(0)Dislikes(0)
  2. Karlo

    March 24, 2011 at 10:58 am

    Usually conformal coating is used to protect the PCB from damage since it will be exposed to harsh environment...

    Examples are Burn In Boards used in semiconductor manufacturing. The board is subjected to 250 deg C for 1000 hours with a device under test (usually an IC). Then after 1000 hours, the IC will be tested if it is still electrically good.

    Likes(0)Dislikes(0)
  3. admin

    March 24, 2011 at 10:52 pm

    Hi Karlo,

    That was a good sharing!

    Jestine

    Likes(0)Dislikes(0)
  4. Waleed Rishmawi

    March 25, 2011 at 5:19 am

    indeed, new information to me. thanks for sharing. is that why sometimes the solder would not stick to the soldering joints?

    Likes(0)Dislikes(0)
  5. Mike

    April 17, 2011 at 12:43 pm

    Conformal coatings materials are applied to electronic circuitry to act as protection against moisture, dust, chemicals, and temperature extremes that if un-coated (non-protected) could result in a complete failure of the electronic system.

    Likes(0)Dislikes(0)
