DVD Player Repaired

By on February 4, 2015
dvdplayerrepairs

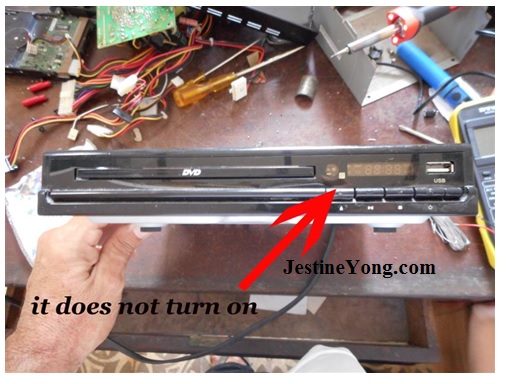

This DVD Player was given to me by my brother in law, and the complaint was it was not turning on.

dvd player repair

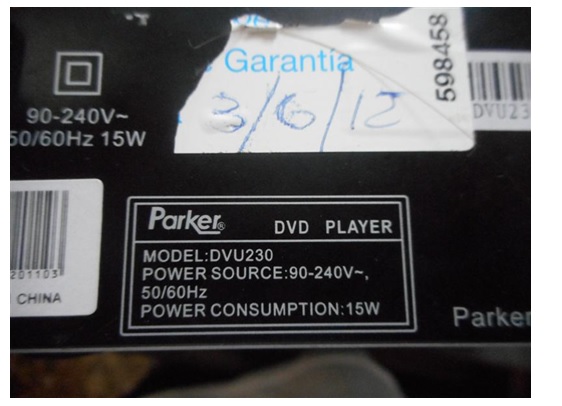

The brand name  is PARKER Model: DVU230.

dvd player repairs

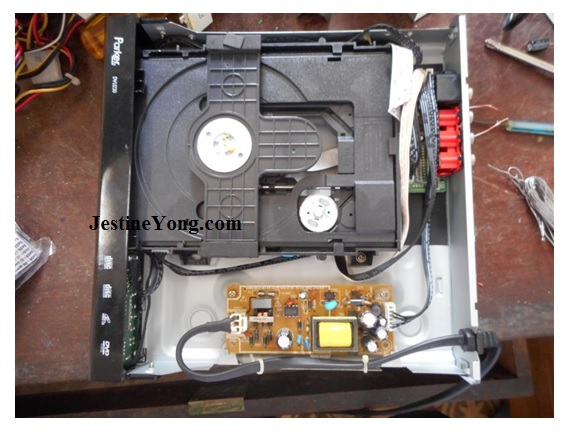

First thing done was to take out some screws to remove the upper cover, an easy job in this device.

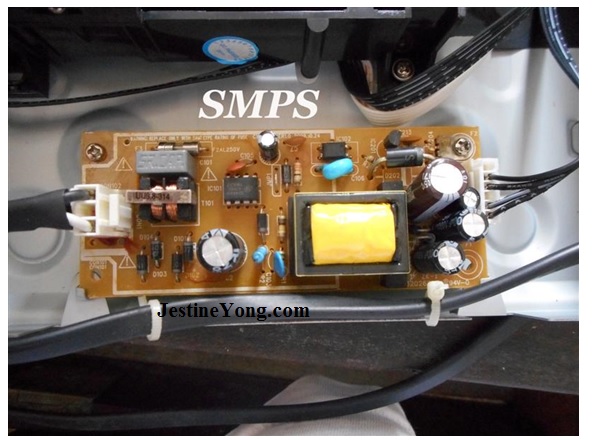

The SMPS was extracted from the unit for checking it on.

dvd player repairingdvdplayerrepair

The first components tested on were the e-caps, and guess what? (look at the photo below).

dvd player repairings

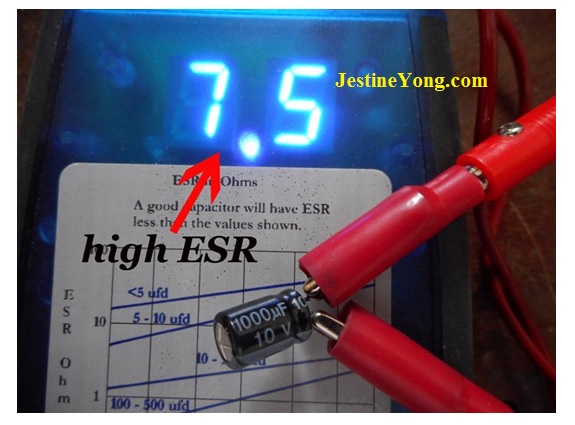

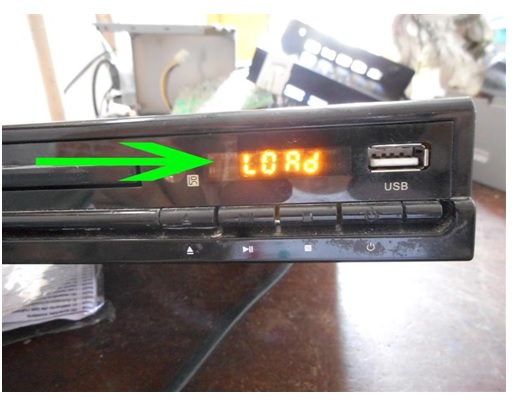

A bad e-cap was found, it had a high ESR Value, and its values were 1000µF/10v. A good one should have about 0.02 to 0.03 ESR ohm but the bad one had 7.5 ESR Ohm which is way out causing the 5 volt line to drop to only few volts. If the mainboard did not get a steady 5 volt, it would not function thus you will not see any display in he front screen of the dvd player. It was replaced with a similar value but with different brand and when the unit was turned “On” the DVD Player started to work normally.

dvd playerrepair

Mission accomplished.
