A shorted gate control board was brought back to life

By on July 14, 2014

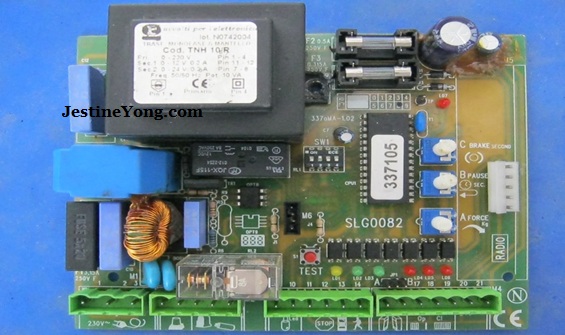

An out of town man came to my shop and asked if I repair gate control boards. He explained that while the electrician was working in his house and was about to leave. The customer tried to open the gate for him, and something happened. The door could not be opened and he could hear a tiny tick noise when he tried to push the open button on the remote control.

 gate control board repair

I have worked on this kind of boards before and I told the customer I will try to fix it for him. The reason I said that because sometimes, faulty parts for such control boards are hard to find and if I find them, they would be expensive to buy. He said to go ahead and give it a try at any cost.

gate control board repairs

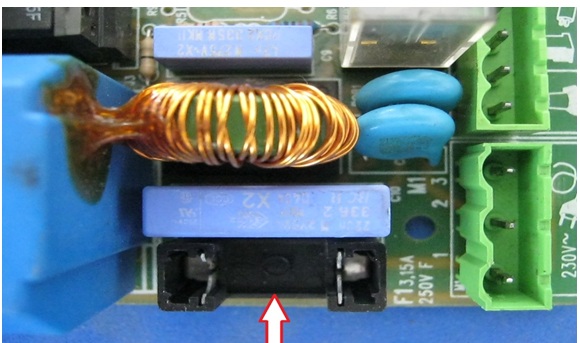

 The first thing I did was to check the fuse. As you can see in the picture, there was no fuse. It is a 3.15 amp fuse. All the information was printed on the board.

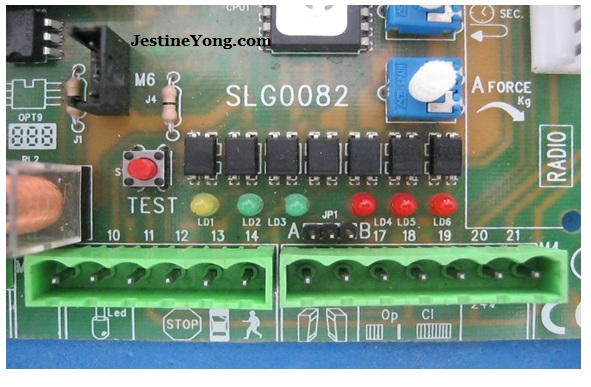

You can see it just to the right of the fuse holder. In fact all the board output and inputs are marked which made my repair job a little bit easier. Take a look at this photo.

 gate control board repairing

I am recalling what the customer said about hear a tiny tick noise but I looked everywhere on this board and I could not find any burn mark on it. The only thing that comes to mind with that tick sound is the main fuse.  I am almost sure that the electrician tried to repair it and forgot to put the old blown fuse back in its holder.

 gate control board repairings

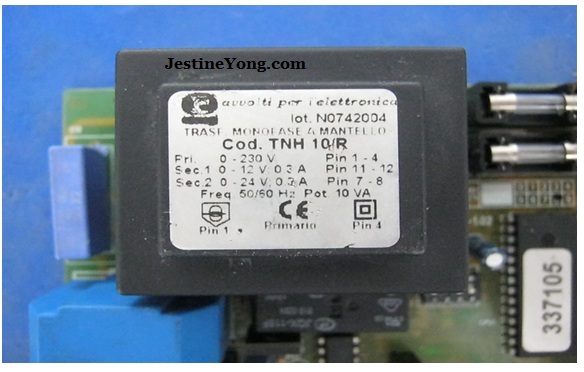

Here is the main power transformer inside the gate control board. It is suppose to get 220 AC and then step down to 24 volts.

At this time, I flipped the board over and started checking the board out to understand how it works and look for unusual things.

 gatecontrolboardrepair

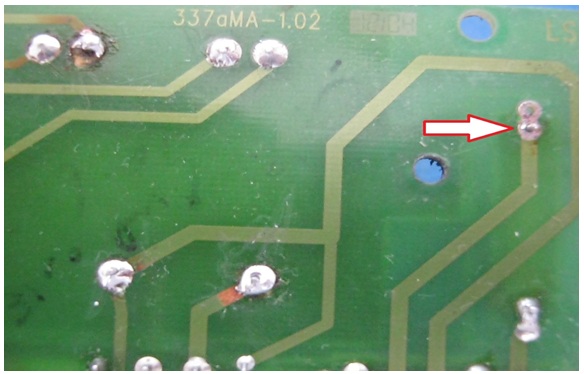

When I traced the 220 AC source to the board, I found a capacitor with one of its pins loose, I cleaned the area and soldered that pin. I decided to power up the board.

 gatecontrolboardrepairs

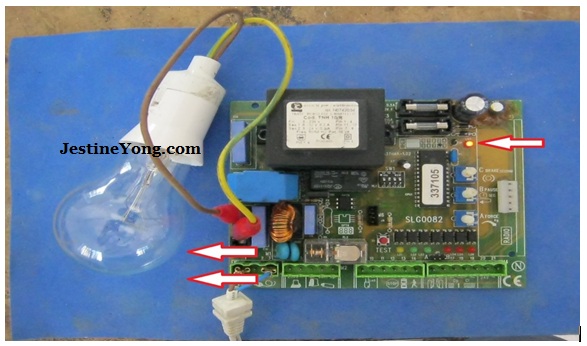

I have used a 100 watts light bulb connected to the fuse terminal. Look what happened. I replaced the fuse and powered it up. Mission accomplished.

waleed







This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.



Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.





Likes(24)Dislikes(0)

8 Comments

  1. yogesh panchal

    July 14, 2014 at 10:49 pm

    good job Mr Waleed,

    Likes(0)Dislikes(0)
    • Waleed Rishmawi

      July 15, 2014 at 5:40 pm

      yogesh: thank you.

      Likes(0)Dislikes(0)
  2. Robert

    July 14, 2014 at 10:58 pm

    Good job Waleed, thanks for the article. There is a bad solder joint on the top left corner of the picture showing the loose capacitor pin.
    I'm sure that you seen it though.

    Likes(1)Dislikes(0)
    • Waleed Rishmawi

      July 15, 2014 at 5:41 pm

      Robert: yes I did, thank you.

      Likes(0)Dislikes(0)
  3. Corriette

    July 15, 2014 at 9:07 am

    yes good vibes sir.good job

    Likes(0)Dislikes(0)
    • Waleed Rishmawi

      July 15, 2014 at 5:42 pm

      Corriette: thank you very much.

      Likes(0)Dislikes(0)
  4. ismail

    July 16, 2014 at 2:31 pm

    thanks Waleed

    Likes(0)Dislikes(0)
  5. Humberto

    July 17, 2014 at 7:23 pm

    A good repair Waleed. Have a good day and keep up.

    Likes(0)Dislikes(0)
