My Son’s Hard Disk Drive (HDD) Was Out Of Order

By on February 22, 2016
hdd repair

















When I got home after midday my little son was waiting for me and his face was sad. What happened, my little baby? I asked him. Then my wife suddenly replied- he cannot play his games in the Computer. I asked why? Look at the computer, it’s On and I can see the video in the Monitor. But Dad, I can’t see my games in the computer. When I sat in front of the computer I realized one HDD was not being detected by the Operating System (by means of the Device Manager option), and it was the one where my son had copied the games.

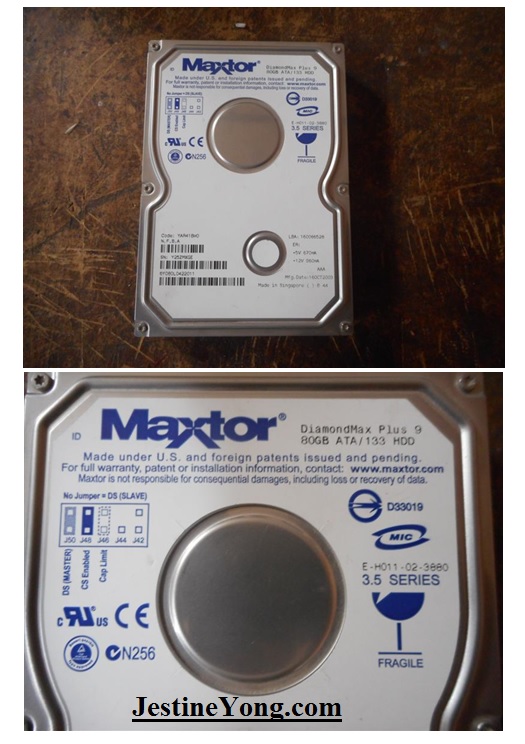

The cabinet of the PC was open and the faulty HDD was extracted, it was an IDE type, brand MAXTOR model DiamondMax Plus with a capacity of 80 GB (ATA/133).     MAXTOR HDD REPAIR

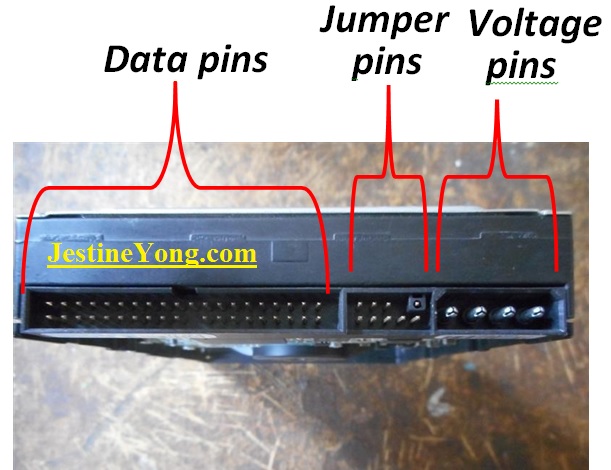

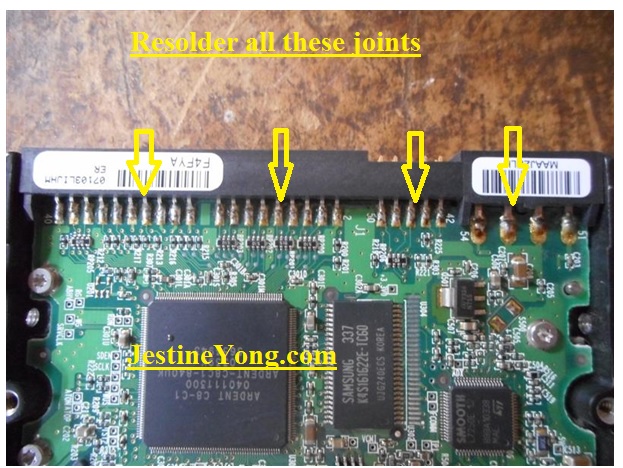

The first idea that came to my mind was to re-solder the data pins (for both sides), the jumper pins (for both sides) and the voltage pins of the PCB (Printed Circuit Board). Of course this PCB was previously separated from the HDD. You can see this in the photo below.

 HDD PINOUTS

harddisk drive repair

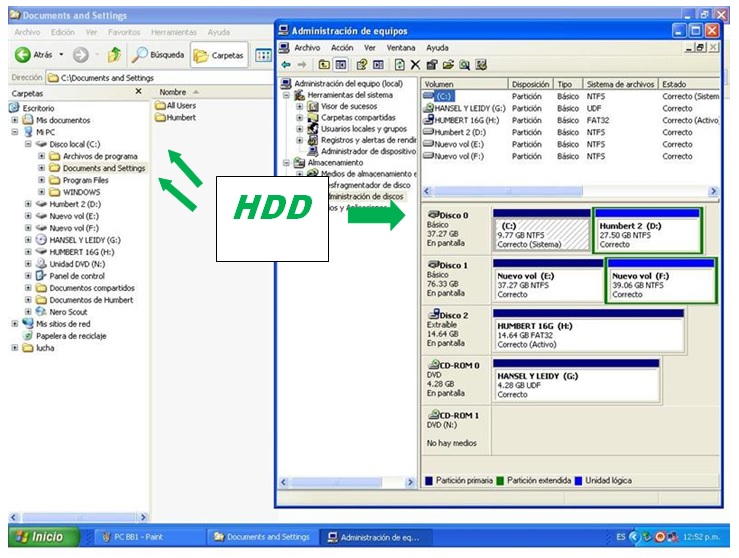

When the PCB was mounted on the HDD and connected again to the PC, look at the result:

 hdd repairing

As you can see in the photo above this time the HDD was shown by the OS and my kid was really smiling and happy because now he can play his games in the PC.

Note: Thank God the information in both partitions was not lost. This repair procedure was executed about two and a half month ago and the HDD is still working perfectly.
