Homebrew Curve Tracer

By on March 29, 2011

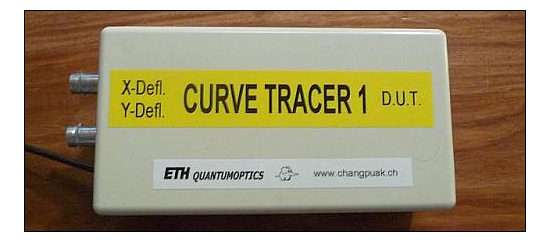

Thanks to the link sent by Kristjan about the homebrew curve tracer. Please click on the photo below for more information

 curve tracer

Likes(3)Dislikes(0)

8 Comments

  1. beh

    March 30, 2011 at 1:50 am

    HI MR YONG
    thanks for this article. but. please tell how can i get more info about
    transformer Tr1? . how can i make it?
    beh

    Likes(0)Dislikes(0)
  2. admin

    March 30, 2011 at 7:43 am

    HI Beh,

    It stated as a 15 volt output transformer. Try use a 1 amp transformer.

    Jestine

    Likes(0)Dislikes(0)
  3. changpuak

    April 1, 2011 at 2:02 am

    Hi,
    The voltage depends on the parts which you want to test. Usually a 15V type is sufficient. 1A is quite a lot ! We limited the current to about 20mA in order not to destroy the parts.

    regards
    changpuak

    Likes(0)Dislikes(0)
  4. Waleed Rishmawi

    April 1, 2011 at 4:58 am

    I am not sure if you got my question about this one or not..but I clicked on the picture and got the schematics and wondering what is the k1 and K2 stands for. thanks

    Likes(0)Dislikes(0)
  5. admin

    April 1, 2011 at 8:15 am

    HI Changpuak,

    Thanks for the info and you are right about the amp because i did not read further-it was limited to 10 ma! May i know what is the component that labeled as K1 and K2 as asked by Mr Waleed? Are you referring K1 and K2 as switch?

    Jestine

    Likes(0)Dislikes(0)
  6. admin

    April 1, 2011 at 8:17 am

    HI Waleed,

    We will wait for Changpuak to answer your question.

    Jestine

    Likes(0)Dislikes(0)
  7. changpuak

    April 2, 2011 at 6:01 am

    Good afternoon,

    K1 and K2 are Konnectors (German, abbreviated).
    K1 is the Connection to the Mains, whereas K2 is to be connectet to the DUT (device under Test)

    ... so nothing special at all ...

    regards
    changpuak

    Likes(0)Dislikes(0)
  8. Waleed Rishmawi

    April 3, 2011 at 12:54 am

    thanks for the explanation of the K1 and K2.

    Likes(0)Dislikes(0)
