How I Have Repaired My CellPhone Charger- By Beh

By on September 19, 2012
cellphonechargerrepair

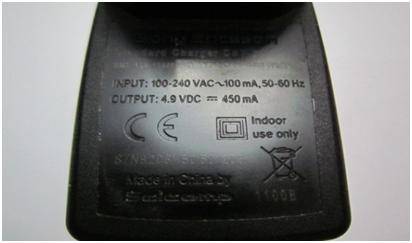

Input is 220 volt/50hz AC  output is 4.9 vDC

cellphone charger repair

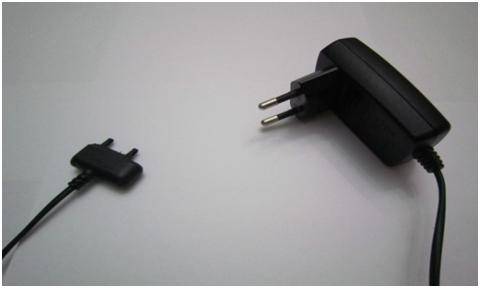

The problem with my cellphone charger was that it had stop charging the battery of mycellphone. I have decided to fix it on my own with the help of Jestine Yong Power Supplyrepair book- TROUBLE SHOOTING AND REPAIRING SWITCH MODE POWER SUPPLIES.

cell phone repair

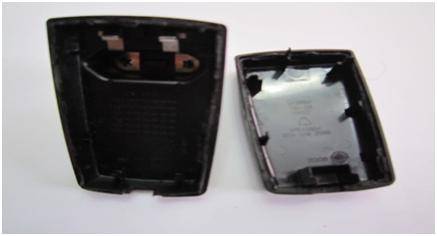

The charger cover was opened  and I’m confident that it can be repaired. The first thing I havechecked was the output voltage with a voltmeter. It reads zero volt which mean there was a serious problem in the charger.

It was quite difficult to open the cover because the chargerdesign does not have any screw. I left no choice and had to use a hammer together with a knife to force it open.

phone repair

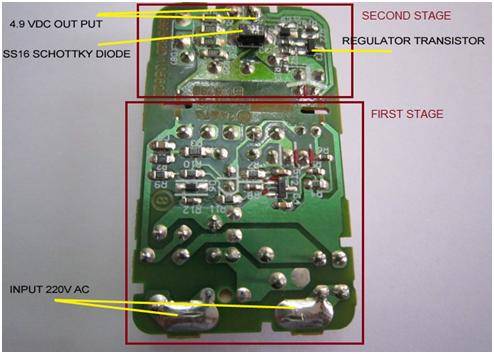

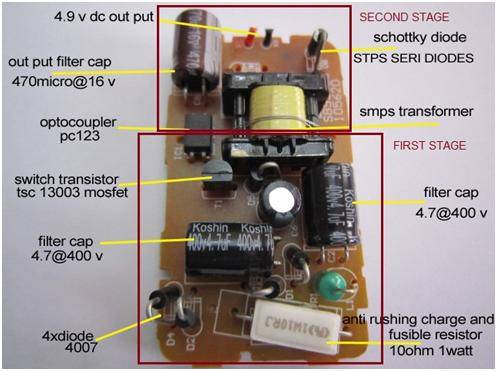

After opening the cover I could cleary see that this charger design was a double sided circuit board. The top parts were all conventional parts like bridge rectifires, filter caps, optoisolator ic ,mosfet, transformer, and shottky diode and the bottom circuit were all SMD components such as resistors and transistors.

cell phone circuit board

I began to check on the conventional components first and I found a resistor with the value of 10 ohm 1 watt was completely open and this low ohm resistor acts like a fuse. Beside the fuse, one of the four bridge rectifiers diode was shorted and the part number was 1N4007. I did checked on other parts like capacitors, transformer, Mosfet, schottky diodes and etc were all good.

repair cell phone charger

I believe the shorted rectifier (diode) drained too much current causing the low ohm resistor to open circuit thus preventing more components to burn. After replaced the two components, thecharger started to work again. The cover was sealed with the help of glue. The cost of repair was only USD 0.5 cents! A new normal charger would cost USD10.00 and the original one is more expensive-USD50.00 probably. I hope this article can be helpful to those who wants to repair their own cellphone charger.

behzad rasteen









Mr Behzad

Iran

Note: Please do not attempt to perform the repair work if you do not know about electrical safety.
