A dead ice maker brought back to life. Model: HOTER IM04-3

By on August 8, 2014
ice maker repairs

















To me the model number of this machine is a bit strange. This is an icemaker and yet the brand name for it is HOTER. Hot and ice is completely the opposite of each other yet, here we are repairing this machine because it was completely dead.

 ice maker repair

The customer told me that he depends on this machine especially in the summer time because it makes ice and it makes it fast.

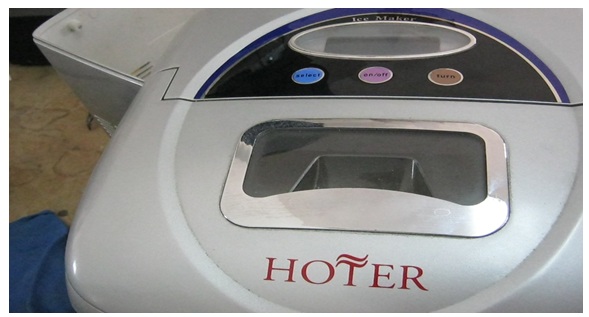

Just connect a water line to it and enjoy the coolness of the cold ice made by this machine.

 ice maker repairs

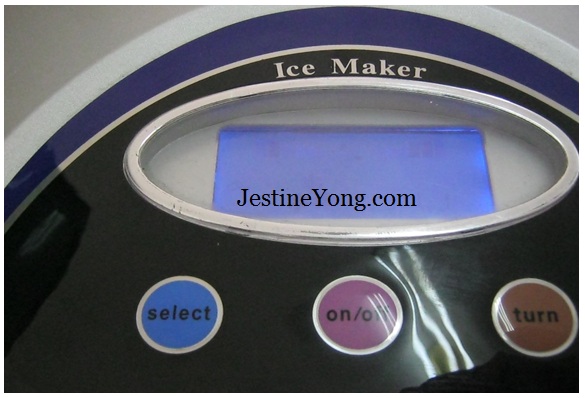

I powered up the machine and according to the user manual, it supposed to make a peep sound then it should come on. None of that happened and it was time to get it open and find out the cause of this dead machine.

 ice maker repairing

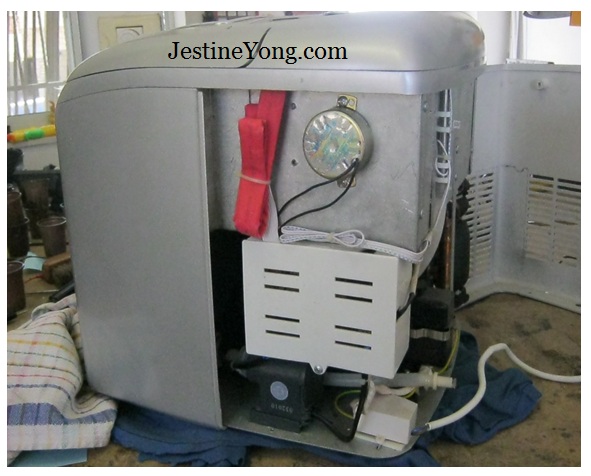

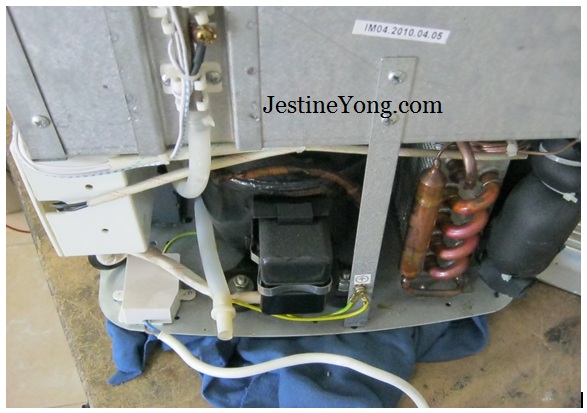

There were about four screws on the bottom of it and two to the side. Once these were off, this is what I saw. As you can see, the white power cord was going to the white box and that was my first place to look.

I was getting 220 volts at the main power cable connected to that box. It was time to check deeper into this machine.

 ice maker repairings

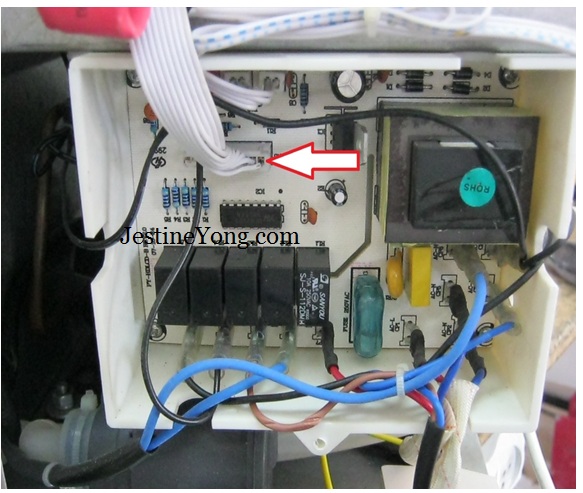

I moved to the bigger white box that you see in the photo. I took the screw off and exposed the inside power board.

 icemakerrepair

The first thing that I usually check is the cables; so I started wiggling with these wires and the moment I moved the white cable the machine came on. I checked the cable and it looked fine. The moment I put the white cover back on, the machine stopped working. It seems like the white cover was pushing these wires causing them to fail to deliver power to the machine. At this point I knew that the cause of the problem in this machine is due to this cable and I have to check it further.

 icemakerrepairs

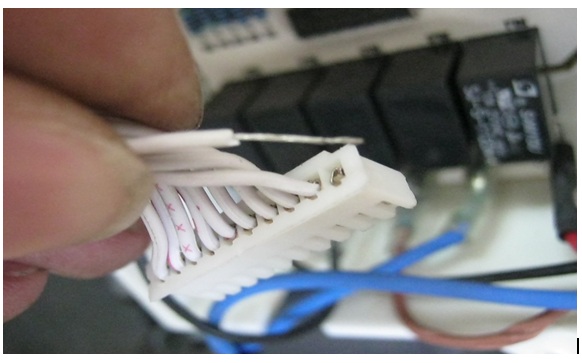

After I have done deeper checking, I found out that one of the wires was that you see in the photo, was loose and that explained why when I put the cover back on, the machine stopped working.

I stripped the wire and pushed it inside the socket and add some solder to it making more secure.

 ice makerrepair

Mission accomplished.
