Oscilloscopes Buyers Guide

By on May 16, 2012

I found an interesting article about oscilloscopes buyers guide and I have boomarked it. If you would like to know more info about oscilloscope like what type of scope to buy (Analog Or Digital), bandwidth, sample rates, resolution and etc then please click on the photo to visit the website.

oscilloscopes buyers guide

Likes(2)Dislikes(0)

6 Comments

  1. beh

    May 16, 2012 at 9:29 pm

    HI JESTINE
    it is really good article  totally but  this part is most important part of it.

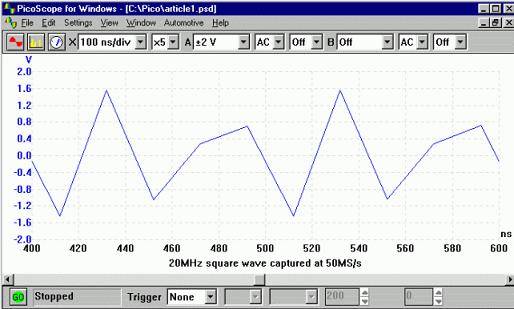

    Remember also that, if your input signal is not a pure sine wave, it will contain higher frequency harmonics. For example, a 20 MHz pure square wave viewed on a 20 MHz bandwidth scope will be displayed as an attenuated and distorted waveform. As a rule of thumb, try to purchase a scope with a bandwidth five times higher than the maximum frequency signal you wish to measure. Unfortunately, high bandwidth scopes are expensive, so you may have to compromise here.
    and must be observed
    beh

    Likes(0)Dislikes(0)
  2. beh

    May 16, 2012 at 9:31 pm

    by the way is 100 Mhz band width scop is suitable for our job? regardless of other factors.

    Likes(0)Dislikes(0)
    • Jestine Yong

      May 17, 2012 at 5:10 am

      Hi beh,

      Yes for normal repair just to see common waveform a 100mHZ analog scope is good enough.

      Jestine

      Likes(1)Dislikes(0)
    • Robert

      February 5, 2014 at 10:29 pm

      Hi Beh,
      If I remember right, some Plasma TV IC's clock around 500 MHz.

      Likes(0)Dislikes(0)
  3. beh

    May 17, 2012 at 9:31 am

    HI JESTINE
    what about 100Mhz   digital scop?
    thax
    beh

    Likes(0)Dislikes(0)
    • Jestine Yong

      May 19, 2012 at 5:28 am

      Hi Beh,

      Yes you can buy that too if you have the budget.

      Jestine

      Likes(0)Dislikes(0)
