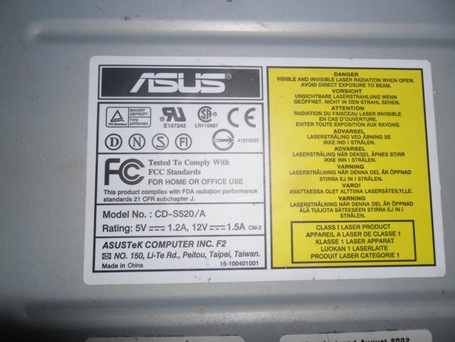

A friend of mine came to me because he wanted to adapt an ASUS CD Drive Model No.: CD-S520/A in the Audio System of his vehicle.

 pc drive

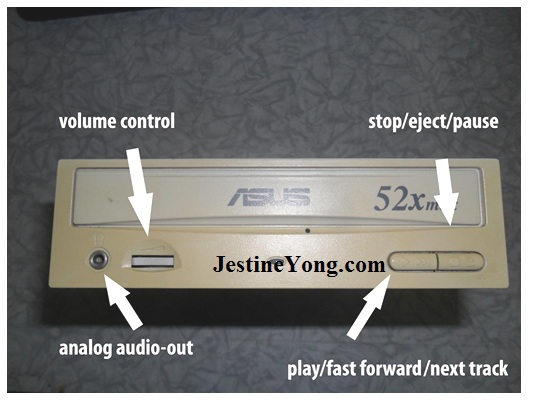

He selected this unit for the following features:

 pc drive1

First thing done was to get a LM7805 (3-Terminal 1A Positive Voltage Regulator) and below is the schematic:

pc drive2

Why need to get a +5 volts Voltage regulator  IC LM7805? Because this PC CD Drive need 5 volt and 12 volt to function. The vehicle only supply +12 volts.

Obviously the job began, look at the photos below.

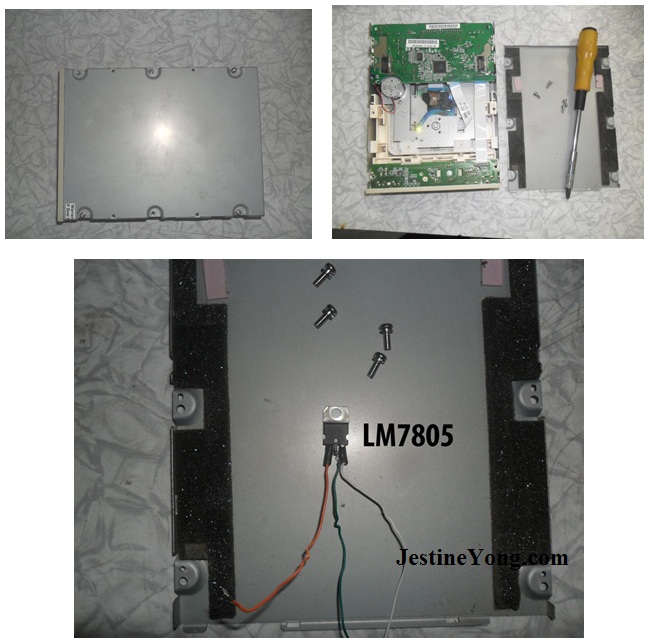

 pc drive3

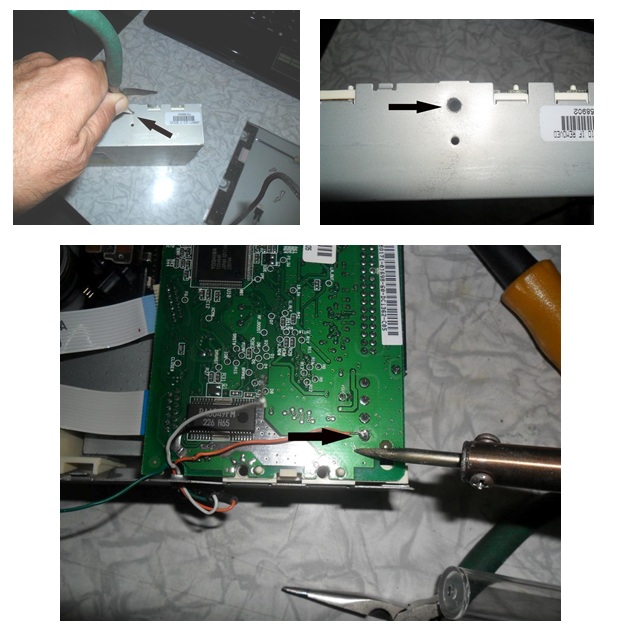

pc drive4

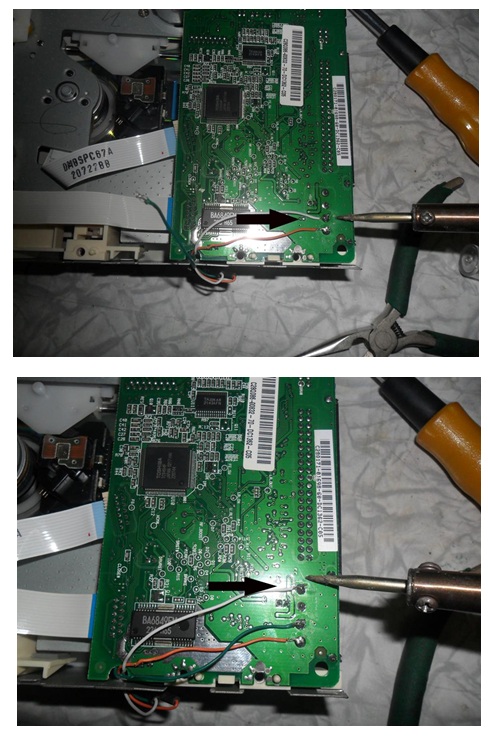

 pc drive5

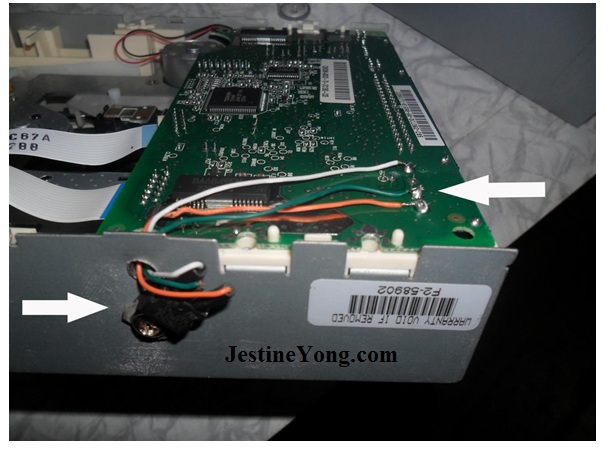

 pc drive6

As you can see, the Electrical Diagram was ready now. Next step would be to test the input of +12 volts and the +5 volts provided by the LM7805.

pc drive 7

So far everything was really fine, so the CD unit was assembled and connected in his car to the audio-in of his old Stereo Cassette Player and music was heard as a clarion. He can drives his vehicle now hearing his Audio CDs, and he’s very happy now.

Note: this system only play back Audio CDs (audio tracks).
