Philips DVDR 3595H/31 DVD Recorder Repaired

By on April 18, 2015
philips dvdr repair



















My Philips DVDR 3595H/31 DVD recorder gave up on me a couple of weeks ago. It started and a few moments later powered down without known cause. And after that, the erratic behaviors went so bad that I had nothing better to do then to open the  thing and have a look inside.

philips dvdr repairs

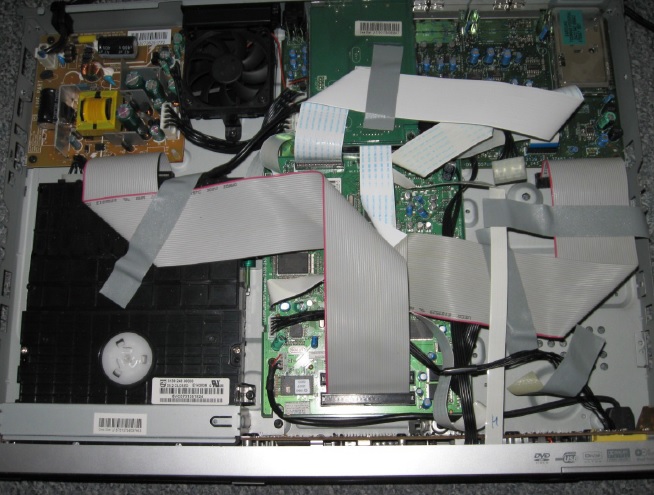

Complete Inside view of the DVDR3595h/31 recorder. DVDburner left, HDD on the right.

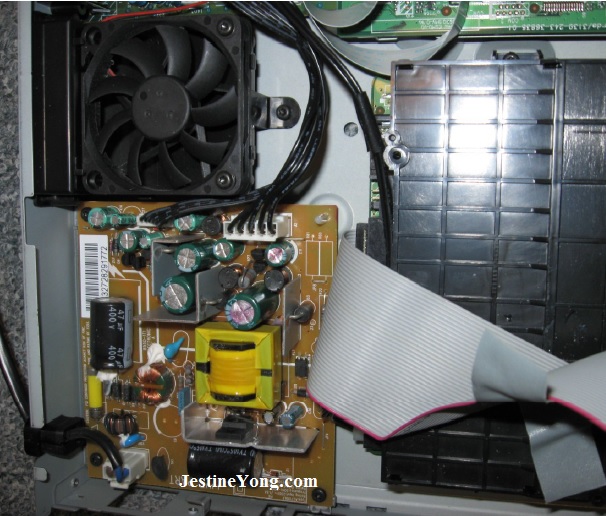

philips dvdr repair1View on the Power Supply Board with regulated Fan.

But not before I searched the Internet first! I knew that I had to look for a Firmware update from Philips, but only with the exact right model number! And I found the right update with the name “dvdr3595h_31_fus_nl”.(or with ”.._eng” for the English speaking countries).

philips dvdr repair2Frontpanel View of the Philips 3595h/31.

But the trouble with my DVD Recorder was that it started up and while displaying ”STARTING” continuously, nothing else happened ! So I could not update the Firmware by using the USB version of the previous mentioned file because that sure would not work! This Firmware version v3.06 is therefore also obtainable as CD-ROM version.

See http://www.care.philips.com/support or on Forums. (But type your search text DVDR3595 only in the right upper search window, or else it will only show 4 headsets !!) But before I did this, I first checked if the Diagnostic Selftest of this Recorder detected any specific errors

Self Test Press and hold the REC and Play (>|) keys*on the front panel of the set*while powering on the mains. Release buttons when Philips logo screen displays*on TV- *”NUCxxx” will be displayed on local LED display Then “NUCxxx ” for a few minutes, followed by several NUC numbers in quick succession and finally “PASS”.

(These instructions you can find in the Service manual from Philips. Part: Firmware Upgrading, Alignment and Test Procedures v1.1, download these free from elektrotanya.com). Strangely enough there weren’t any errors, but still my DVD Recorder didn’t work! The extra handicap here was that the dvd plateau did not eject. (A lot of Philips Recorders have this problem!! Probably caused by a too strong magnetic top wheel in the player why it

can’t force the plateau open. Something that also happens with a lot of XBOX360 dvd players , and pc dvd players). But therefore I had to open it by using the plastic slider in the bottom of the recorder. And I burned the CD Firmware version on a CD-R because a CD-RW didn’t work ! And put it in the dvd player/burner.

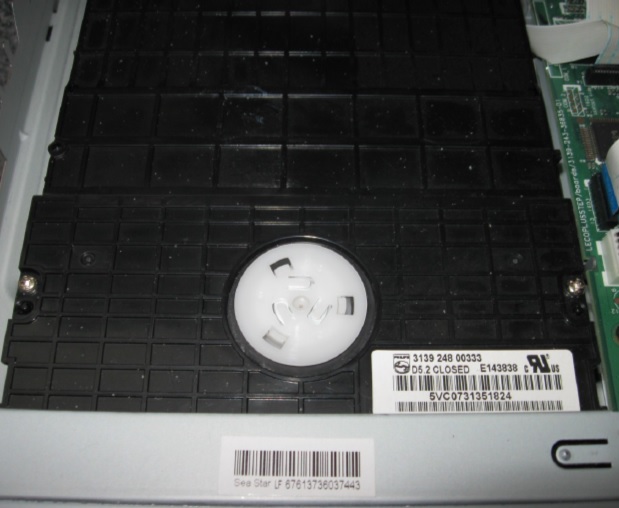

dvdr repairTop view on the original DVDR Burner.

To Update/upgrade the Firmware (see above mentioned Service manual) we just have to do following:

Firmware Update (v3.06) After Unzipping and burning content of the zipped file to the root i.e. x:\ of a CD-R/CD-RW disc (Note: There should not be any folders on the disc).

1.) Unplug the set from the mains. 2.) Press and hold the REC and NEXT (>>|) keys*on the front panel of the set*while powering on the mains.*- *”Download” will be displayed on local display. 3.) After sometime, the tray will be ejected.*- Insert disk and close tray time. But I already inserted it but doesn’t matter, it goes in again. The downloading process will begin. It should take around 7mins. 4.) After the download is completed, tray will be automatically ejected. Remove the disc and push in the tray, wait till you see “DONE” on the local display (LD). Set may restart several times during this process. 5.) The set will be able to wake up and proceed to the first installation screen.

installation dvdr Top View of the Digital Board (IDE Controller).

And many people have asked me why replacing the Harddisk by another new HDD doesn’t work. And here it is why !!! :

1.)The replacement harddisk (IDE) has to be jumpered the same way as the original harddisk was. But it also depends on the type of harddisk. Mine had to be set to Cable Select!

2.)The new harddisk doesn’t need to be formatted with NTSF. I don’t know if any pre-format is needed (I used FAT32 and that worked fine!). I used Free Ease US Partition Master 10.0 to do that.

3.Only after the replacement HDD was pre-INIT by the Firmware update (!) it now also needs to be Formatted by the Digital IDE Board. And how you do that comes now:

philips dvdr hddPhoto of the original Philips Seagate 250GB HDD.

philips dvdr repair hdd

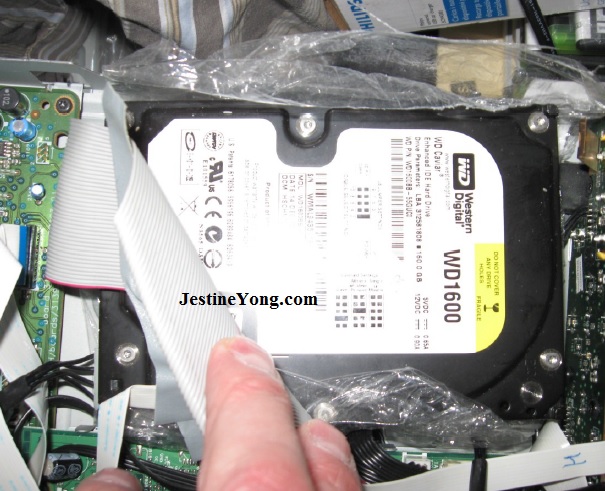

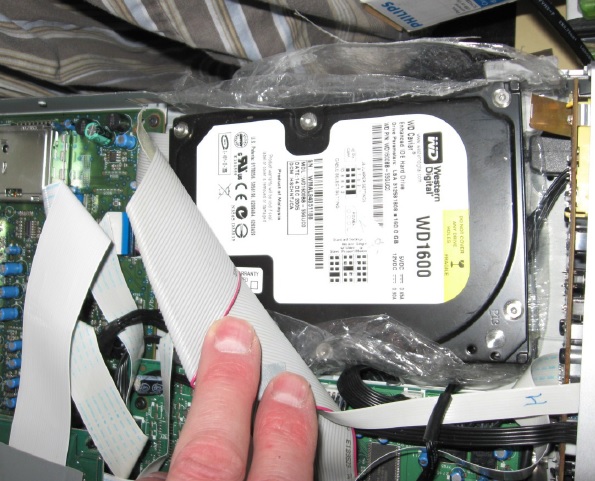

Photo of the Replacement WD 160 GB IDE harddrive. (Isolated with plastic bag as precausion not to short circuit the controller panel while testing)

To Format HDD 1) Unplug the set from the mains. 2) Press and hold the BACK (|<<)and STOP keys*simultaneously on the front panel of the set*while powering on the mains.*- Release keys when machine starts* 3) “FMT KEY” will be displayed on local display, followed by FMT HDD and FMT DONE

After this is done everything as new with the original or with a replacement Harddisk !

philips dvdr repairing hdd

One thing that I should mention here is that this Philips DVD Recorder is a nice piece of technology, although they all suffer from the same illnesses, because it’s in fact an IDE (pc identical !) controlled tv recorder !! The Digital Board (as it is called in the manual) inside this Recorder really has 2 IDE ports !!

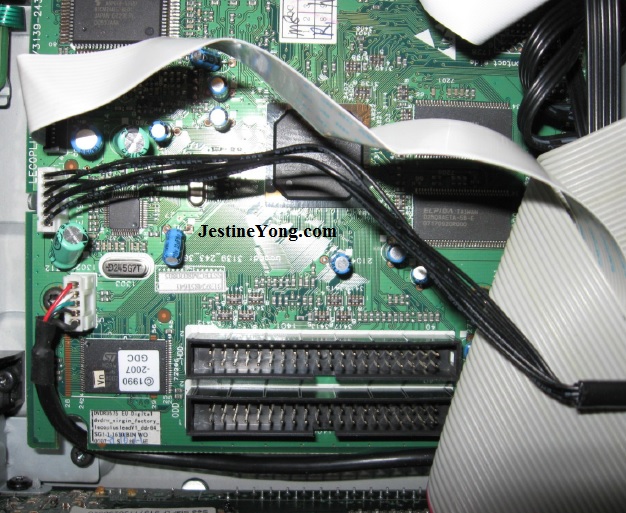

philips dvdr ide portsThe Digital Board with the 2 IDE ports.

philips dvdr repair9

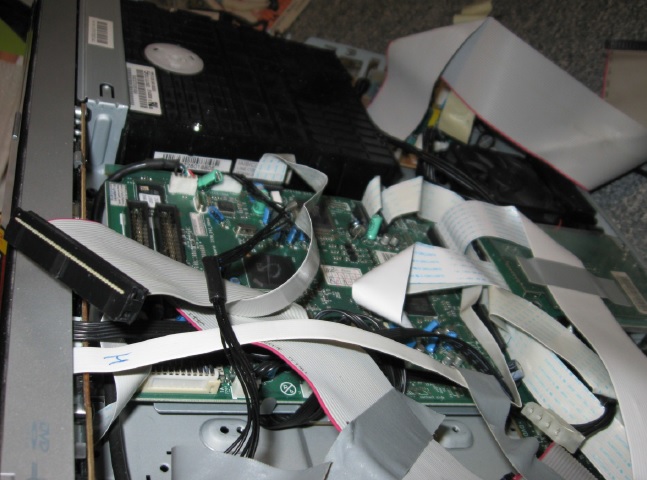

Another view of the Digital Board with both IDE cables removed.

philips dvd repair

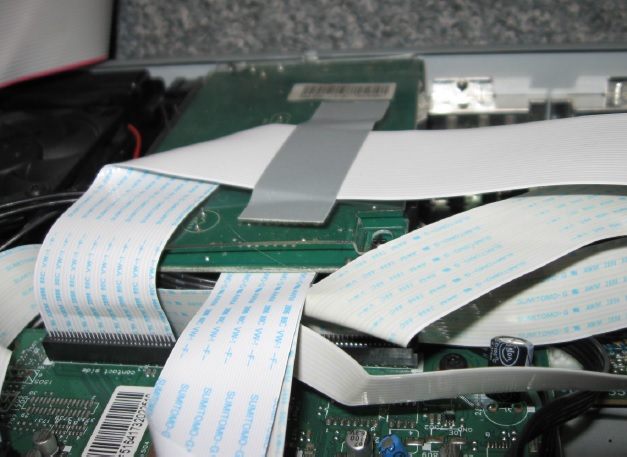

A view on the top panel (HDMi Board).

Which means that you can remove the original dvd burner/player just as you can the Harddisk !! I also have tried another DVD-Burner from LG and it worked fine! You only have to know how to do it! Above info helped me to repair my DVDR3595h (H for Hdmi!). Hope you enjoyed this article!

Albert van Bemmelen, Weert, The Netherlands.
