No Power FURMAN PL-8 II Power Conditioner Repaired

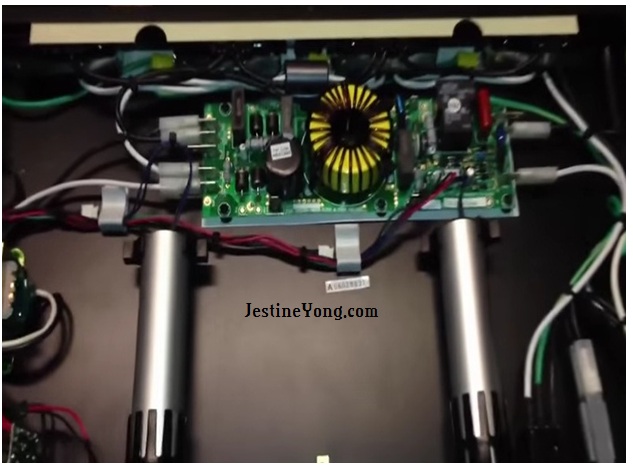

I would like to share my experience in Furman Power Conditioner repair. I have repaired many electronics devices. But in this case the problem was a bit different. The complaint was it has no power at all. I took out the board and checked on the big capacitor but the capacitor was found to be good. I’ll tried to checked the parts one by one from the primary to secondary and the voltages was until only at the Relay area.
I further checked the diodes, transistors, transformer and relays and all found to be good.

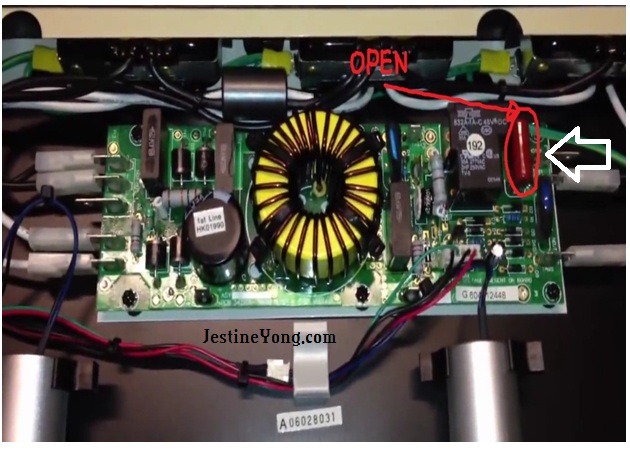

I did not give up and continued to check for bad component and eventually I found one Mylar Capacitor in the primary AC input the value is 274nf / 400v (.27uf 400 v) was open circuit.
I ordered the part from ebay.com and after replacement the Power conditioner was working perfectly. Thanks to Mr. Jestine Yong for providing a platform (blog) to post (share) articles.
“This article is contributed by Fernando Frias from Abu Dhabi UAE. He is currently working in a Technologies company as a technician.
Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.
P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.
