Repairing battery charger by transistor doubling

By on November 18, 2015
Repairing battery charger by transistor doubling















Battery charger Model KCA-1220  came to my shop last week in dead situation ,I opened the cover  hoping it is a matter of blowing fuse, noting was I expected ,

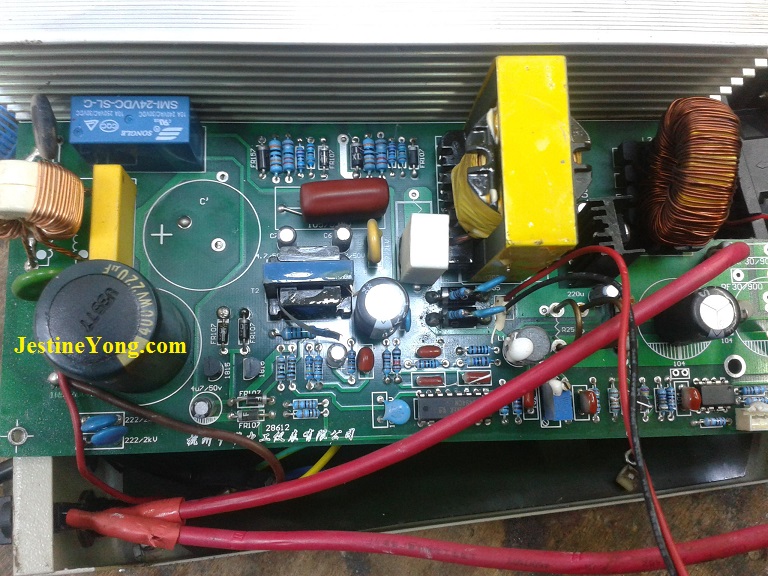

charger board

I carried on checking till I come to transistor power Q1 :2SC3320 was short. I looked to the datasheet  I found (VCEO=400V, IC=15A, IB=5A).

Unfortunately I found nothing can replace it in my drawers . the only transistor I have with big number is BU508A, but this transistor is only 8A.( VCEO=700V, IC=8A, IB=2.5A)

Just I would like to mention that I could not find the original part in the local market , and because of the political instability in our country , making an order through the internet became more difficult.

Anyway ,I made comparison to the two transistors datasheet , they look similar , the only difference is their current rating .

transistor layout

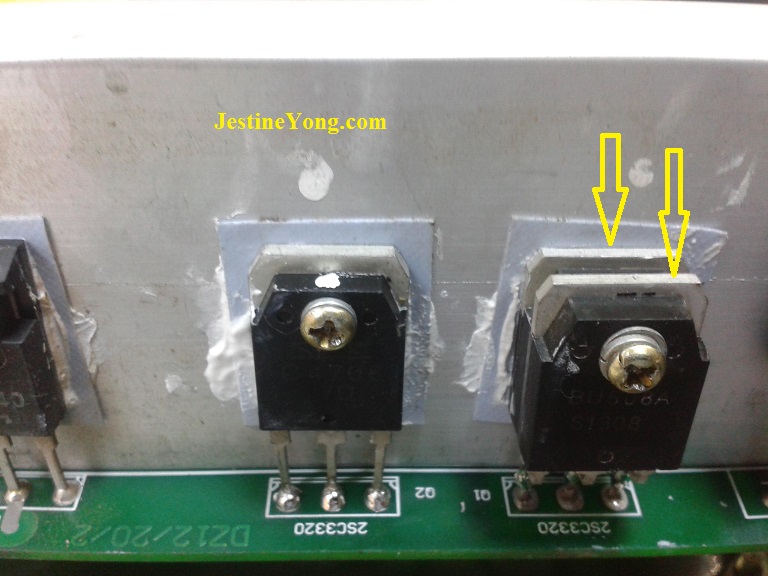

double transistor

I decided to make 2 of BU508A  in parallel to increase the current rating , this idea comes to my mind , because I have came cross many circuit which designed on this base.

I made it and it works..

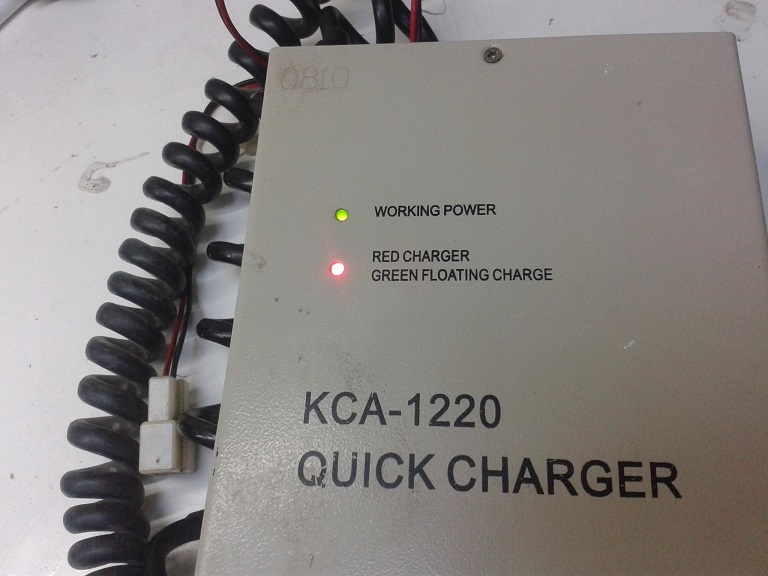

KCA1220 BATTARY CHARGER
