Revisit Of USB-BT-FM Radio Model SPANIO WOODY
This set had visited me in March 2025 with power failure problems, about which I have already written an article, which is in queue. I had changed the Transformer and battery and did other service work then. It visited me again in October, 2025 with the same complaint; i.e., dead! I opened and cleaned the inside and checked what went wrong? The mains cord was found intermittent, the primary of transformer was found open and the speaker was open too!

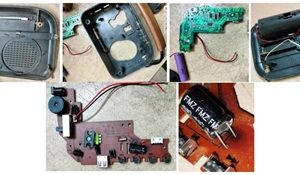

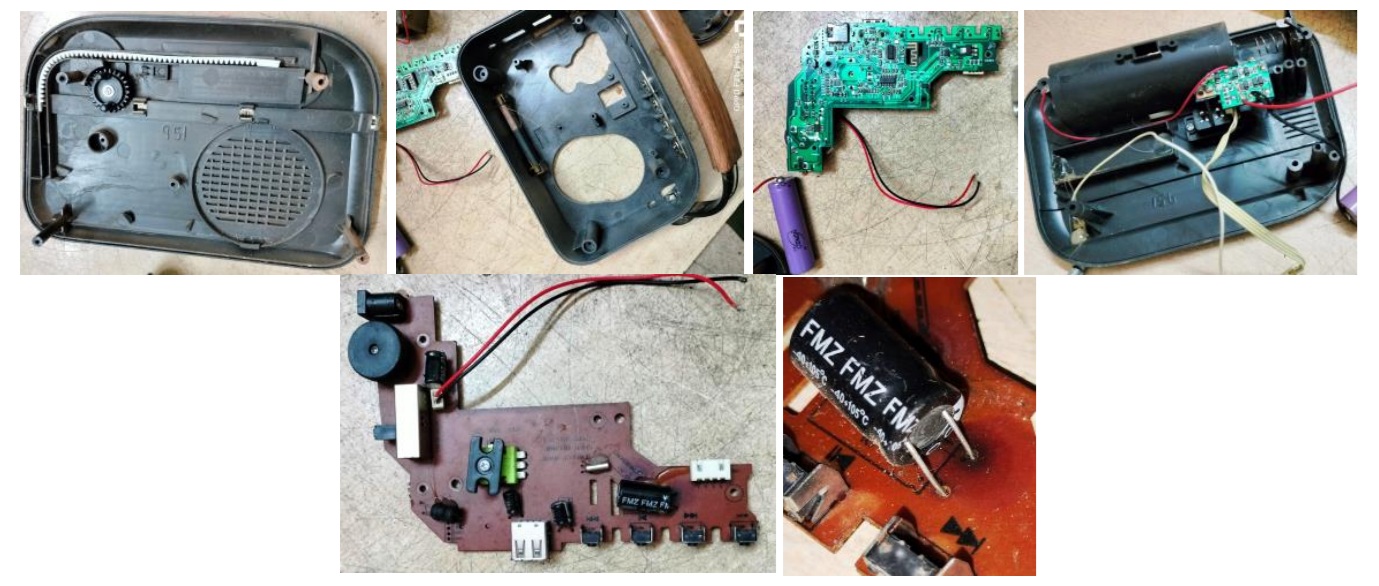

So, another massive damage once again due to power surge. One tank capacitor had burnt mark on the ground leg. Let us have a look at some pictures, though I have covered many in my previous article:

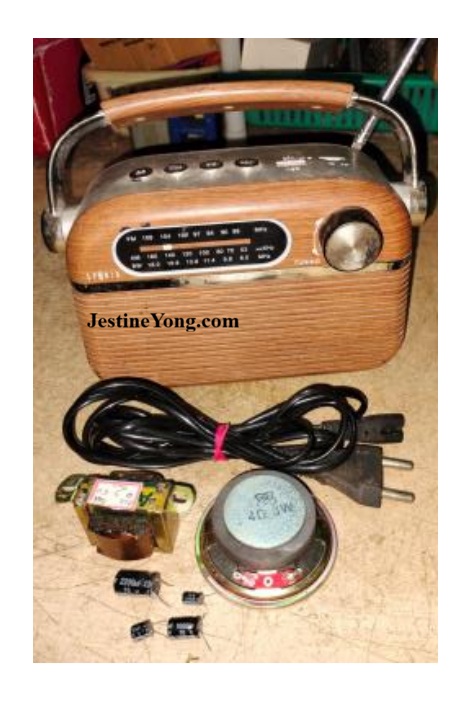

I replaced the cord wire, transformer and speaker with new ones from my stock and did spot welding on the battery with a charge control PCB fixed on it as the voltage from the TX was slightly more and I did not want over charging to take place.

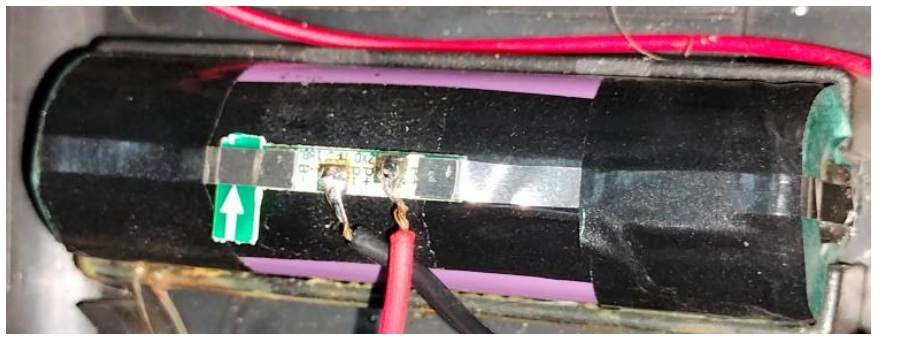

Also changed all Elec. Caps! Let us have a look at the work done on the battery:
The set was subjected to thorough testing once again on all modes for several hours before fixing the back cover and transferring it to ‘delivery room’ (presently the sit out room in my house!).

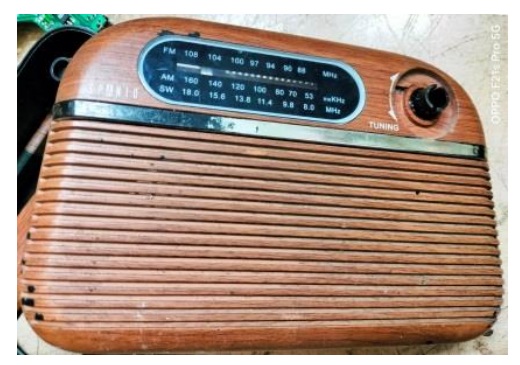

The set kindly obliged to give a pose for a parting look, perhaps as a gesture of gratitude, and here it is:
Mission accomplished with vigor and enthusiasm yet another time, drawing satisfaction to the bag!
This article was prepared for you by Parasuraman Subramanian from India. He is 76 years old and has more than 30 years’ experience in handling antique equipment like Valve Radio, Amps, Reel Tape Recorders and currently studying latest tech-classes conducted by Kerala State Electronics Technicians’ Association. He has done graduation in BBA degree, private diploma in Radio Engineering and retired as MD of a USA company. Presently working as Consultant to Hospital and other institutions.
Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.
P.S-If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!
You may check on his previous article on Restored An Ant Infested CCTV Video Recorder And Adaptor – RLN8-410 & 2AAL090R
