Samsung 940NW LCD Monitor Repaired

By on October 30, 2015
samsung lcd monitor repair

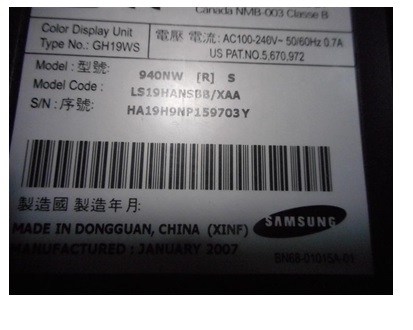

The SAMSUNG TFT-LCD Monitor Model 940NW of this story belongs to my 6 years old son.

The complaint was impossible to watch a steady video-out, because it was blinking all the time.

samsung 940nw lcd monitor repair

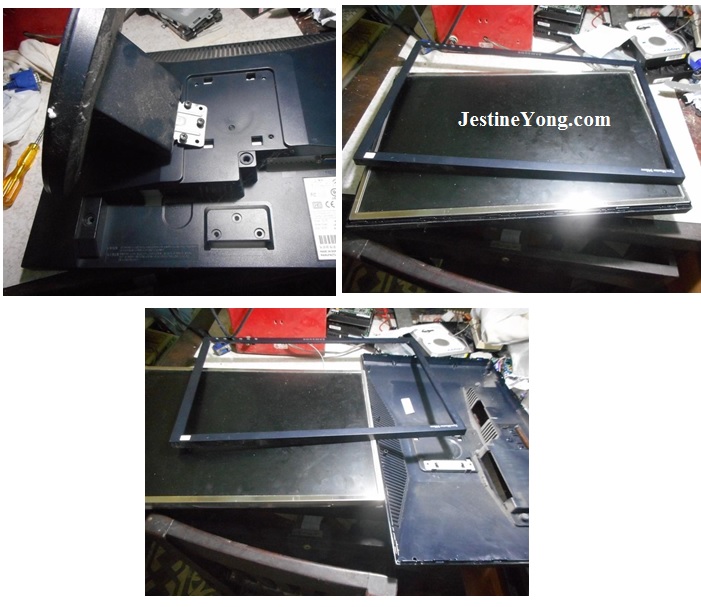

It’s the time to dismantle the device, and I’m honor of being the first person in opening this Monitor.

lcd monitor repair

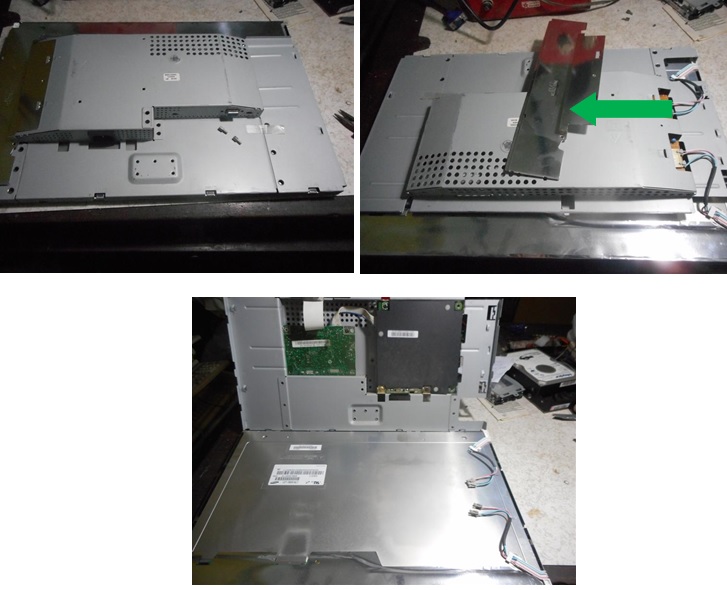

Till here all the plastic covers were taken out carefully and  please do not use hard force otherwise you will damage the plastic clips. Now it’s time to check on the electronic circuits.

repair lcd

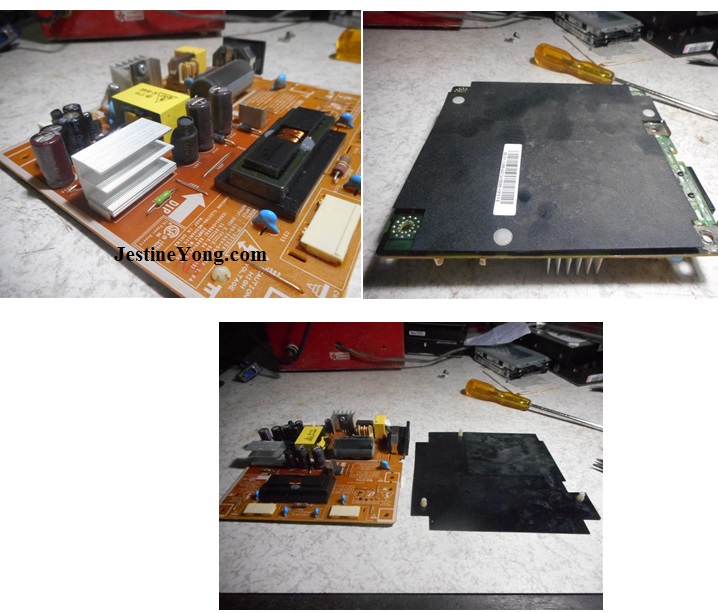

Once the metallic covers are out the PCBs can be separated (only two PCBs).

samsung lcd monitor board

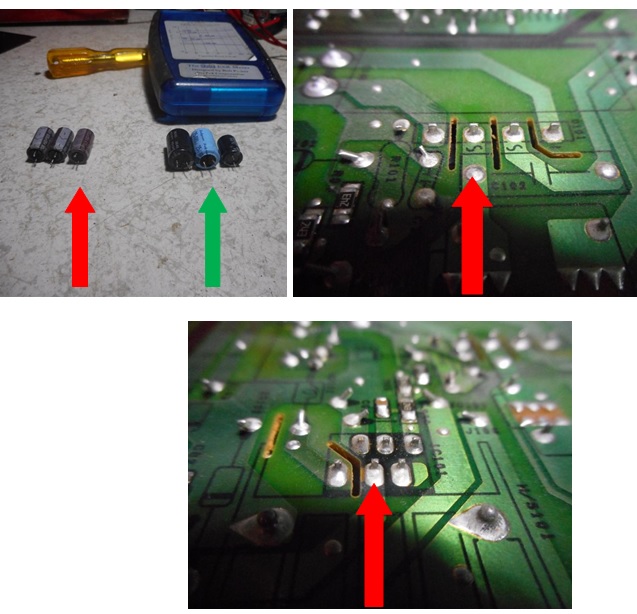

In this PCB (SMPS) there were three bulged e-caps (820µF/25 x 2 and 470µF/25) and many cold solder joints.

cold solder joints

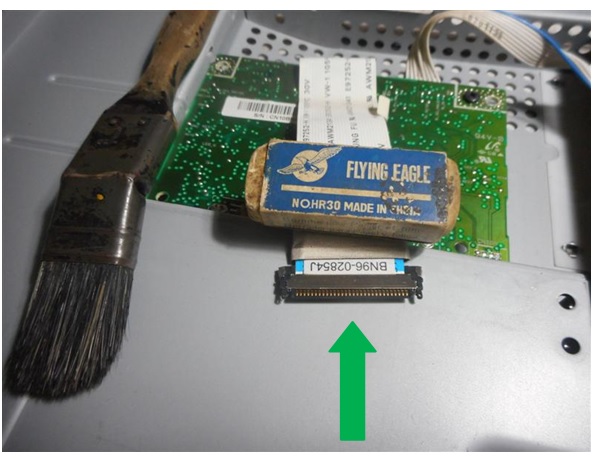

The three bulged e-caps were substituted for three similar in good conditions, the rest of the e-caps were checked with the Blue ESR Meter and all of them were ok. All the cold solder joints were fixed with fresh tin. But I decided to clean the golden contacts of the LCD Display with a Pen Eraser.

eraser clean circuit track

When everything was concluded the Monitor was armed again and look at the result.

lcd monitor repaired

Now my child is very happy and smiling a lot because his Monitor is working fine now.

humbertophoto5





















This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You can check out his previous repair article below:

https://www.jestineyong.com/seagate-barracuda-80-gbytes-hdd-repaired/
