Toshiba Satellite P35-S6292 Laptop Repaired

By on October 5, 2013

This article brings home the “every six months” problem with my Toshiba Satellite P35-S6292 laptop…. Granted, I have physically abused mine, through seven years of international travel…. I would guess that it has travelled over 150,000 miles of international travel, as well as several thousand miles of domestic travel…… It has been tossed around in the car, and has worn out three travel bags….lol

It has an absolutely horribly-designed cooling system. It sucks air from the bottom, using two fans. It does not take much dust in the ‘radiator fins’ to thermally shut it down….. The fins are maybe 0.5mm spacing….. Throw in a smoking girlfriend, (her cigarettes, not her good looks…), and the cooling system clogs quickly…..

One has to tear down this laptop…. completely!!!!, just to properly clean it. A short-term solution is to put a vacuum on the fan input grills, as you hit the exhaust ports with compressed air, from a 100 psi, (6.9 bar), air hose. Do not even try using a spray can of air! That will get you a few extra days/weeks…. But eventually, you have to take it apart…

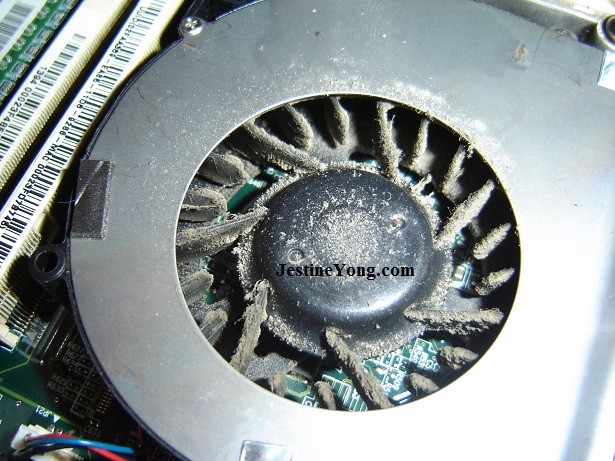

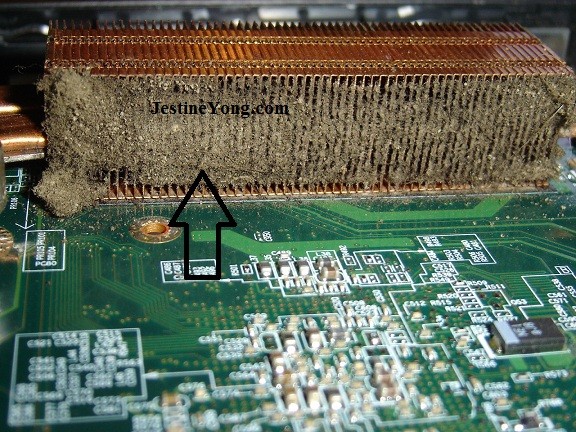

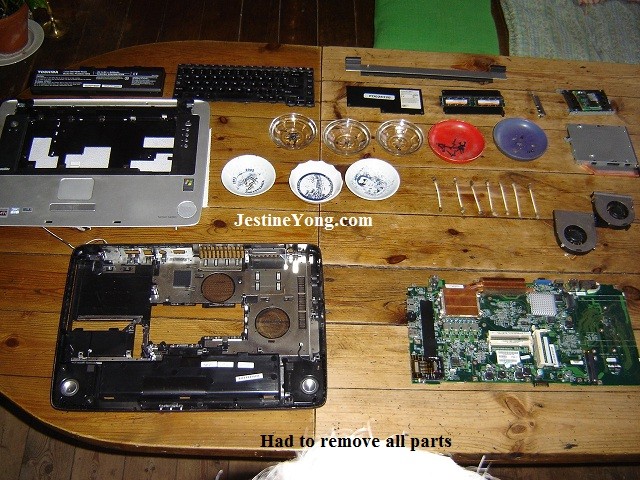

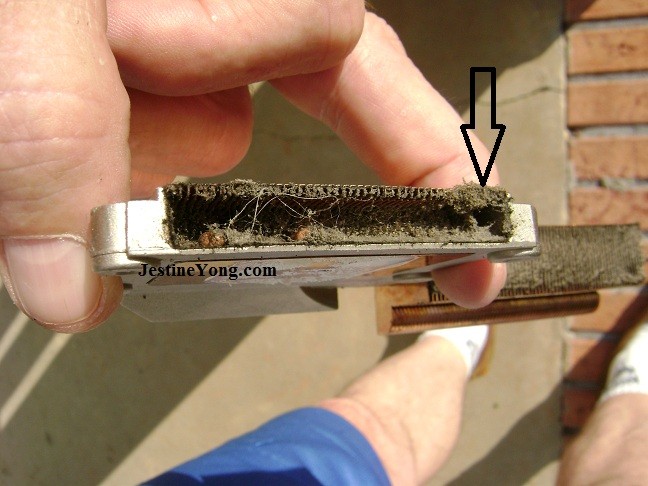

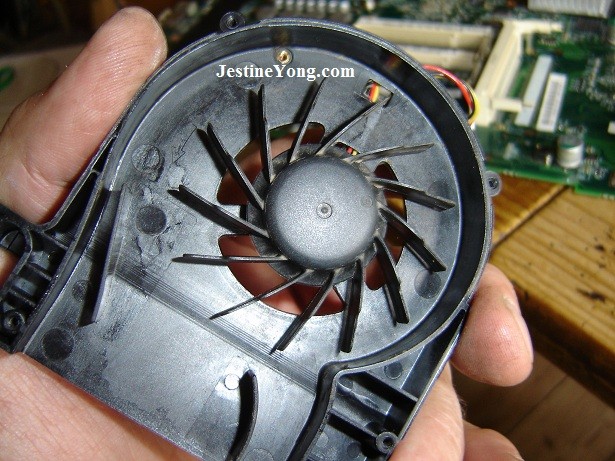

Here are some pics, taken from several cleanings. I have to clean it about every 6 months!

laptoprepair5

laptop repairing

laptop repairing

laptop repairing

laptoprepair

There is an excellent site to explain how to disassemble this (http://www.irisvista.com/tech/), and several other computers… But…, there are some ‘tricks’, learned the hard way…. Otherwise, little plastic pieces break….. So, go slow! Do not force stuff apart. After several cleanings, there will be broken plastics…. It is a fact of life!…lol

Alcohol & cotton-tipped sticks are a MUST! And, you must be patience….. Also, be prepared to put new heatsink compound on the CPU….. And…, be sure to use a plastic ‘credit card’ to separate the plastic, snap-together shell parts!!! I keep several, used ‘gift cards’ around the work area…, just to safely open the plastic cases of various things…. Remember, the manufacturers do not ever intend for someone to fix it… They want you to replace it!!!

Just thought you might be interested in my experience….. I am working up another article for you, concerning those cheap ‘solar lights’ for the garden…..

 Capt36

Tom “Capt36” Hayes

Practice random acts of kindness, and senseless beauty.

This article was prepared for you by Tom “Capt36” Hayes a former Broadcast Engineer at WATL-TV26 Atlanta, GA- USA. Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

By the way if you have any good repair article that you want me to publish in this blog please do contact me HERE.
