Wentai DVD Player Repaired

By on May 12, 2015
dvd player repair

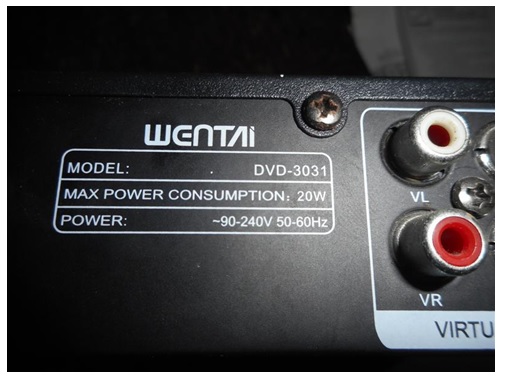

This DVD Player brand WENTAI Model: DVD-3031, China made was brought to me from a co-worker because it was fully dead.

dvd player repair

First thing was to disarm it.

dvd player repairs

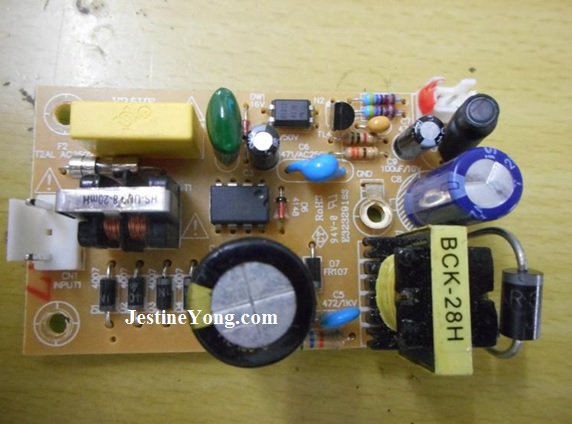

And check the Power Supply Unit voltages.

dvd power supply repair

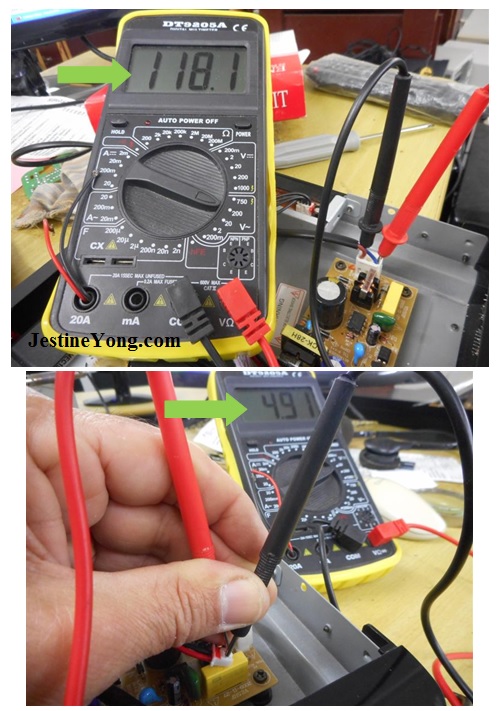

As you can see in the photos above there was AC mains (110 volts in my country) and there was voltage-out in the Power Supply Unit (5 volts in this case).



This means the power supply was good! Anyway the PSU was extracted and checked to look for any cold solder joint, bad e-cap, etc.

dvd player power supply

Everything was ok, so the search had to be continue in the mainboard. In this mainboard I found two leaky semiconductor diodes (1N4004: Plastic Silicon Rectifier).

dvd player mainboard repair

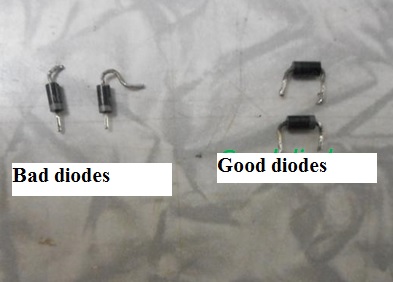

The diodes used for substitute the bad ones were 1N4007 (recovered from another PCB).

They were soldered back to the mainboard and when the appliance was turned On, look at the result in the photos below.

dvd player repairing

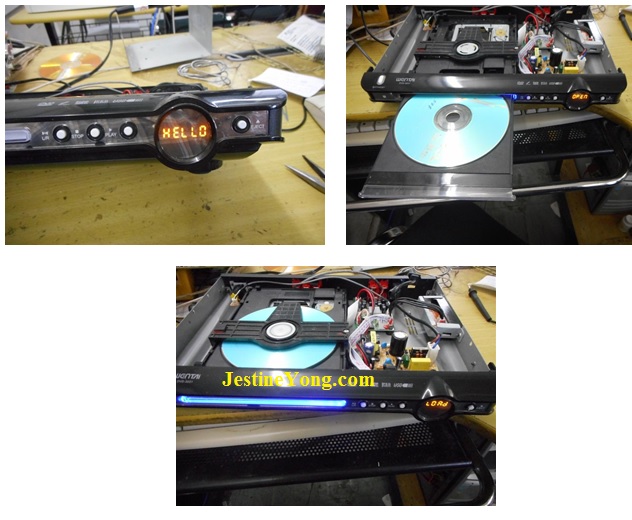

Wow! The DVD Player really turned On perfectly and the owner was very happy.

humbertophoto

This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!
