Defective Charger Spoiled Li-ion Battery In This SARIGAMA CARAVAN SC-03

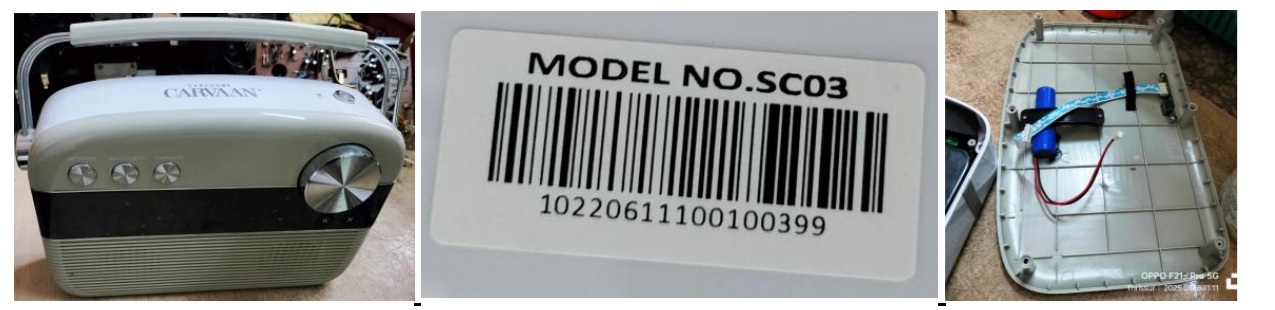

This belonged to my school classmate and was brought to me with the complaint that there was no backup, though it worked very well. I have handled a similar set, a link of which is given below to avoid sharing another set of images, as the internal construction of both is same: https://jestineyong.com/saregama-caravan-sc-04-usb-fm-music-player-survived-floods/ I opened the set and found that the inside was very clean.

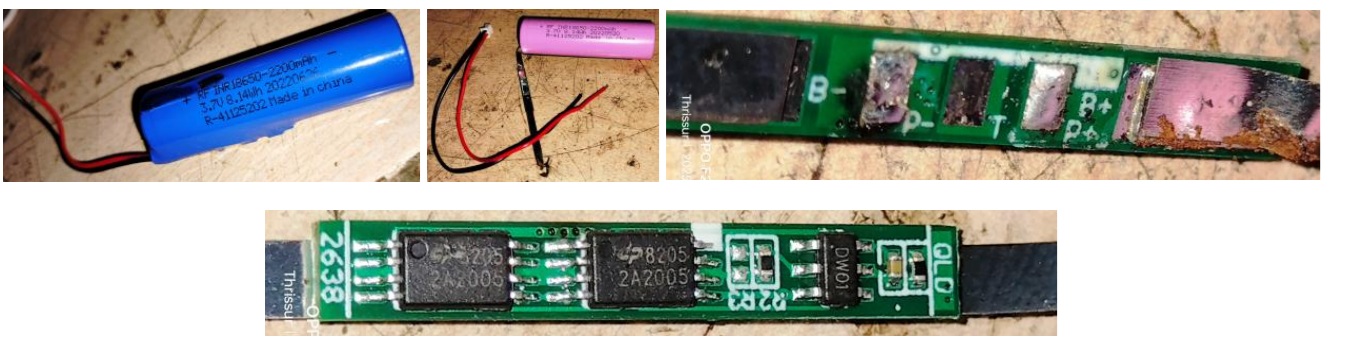

The battery had a built in charger. The outer blue layer should be peeled off to view the battery with its charger. Let us have a look.
The battery was almost dead. The charging was not taking place when checked connecting it to the board and the USB charger adaptor. Probably that is what caused a battery drain. I tried charging the battery externally using my Li-ion battery charger. It took charge but did not give necessary back-up.
Click here to check out Humphrey’s ebook on Laptop Repair

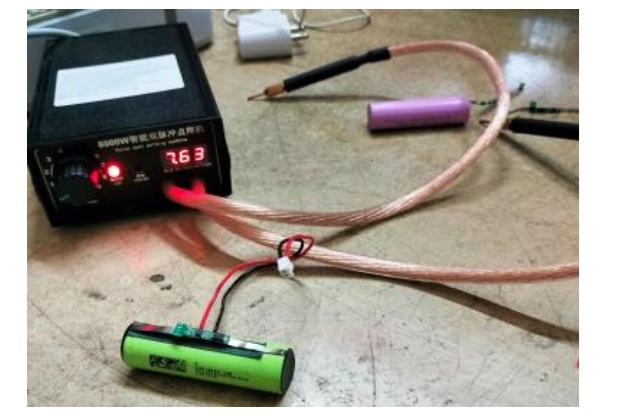

So, fetched a better rated cell and a similar charger PCB and bonded it using my recently acquired battery spot welder, which has a foot-switch to operate. I also provided the protective tapes on three sides as how it was on the original battery. (Now all these are available to buy):

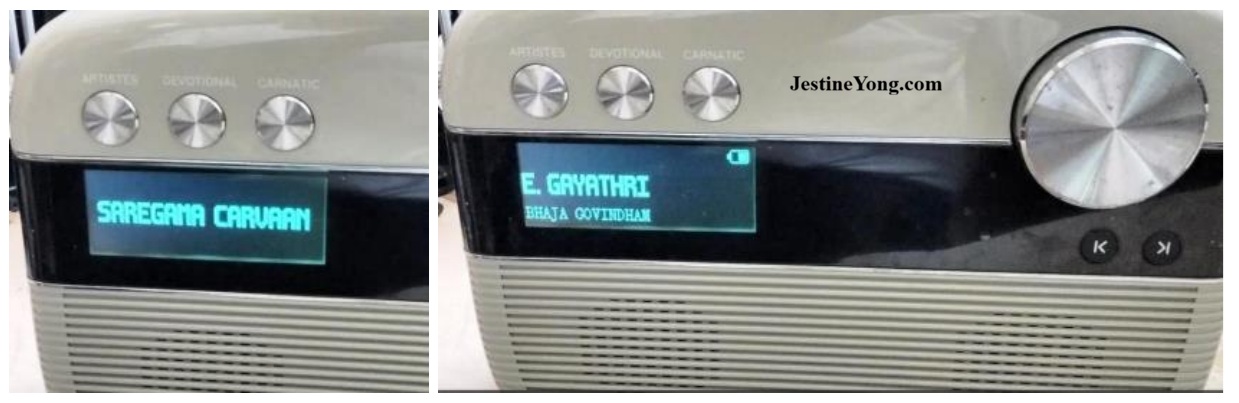

The set was found working very well, which I ensured trying all its modes such as playing from internal storage of over 5000 songs, which can be selected artist-wise and type-wise (live classical, devotional etc.) from the front panel, FM Radio, USB and Bluetooth pairing.
Mission accomplished with satisfaction getting collected to the bag!
(Special note to keen observer expert: The battery was fully charged using its adaptor before giving delivery to the customer. The second pic above is taken before that!)
